Air Temperature Sensor Replacement - Lower Right Side

Air Temperature Sensor Replacement - Lower Right Side

Removal Procedure

1. Remove the passenger side closeout panel. Refer to Instrument Panel Insulator Panel Replacement - Right Side (Instrument Panel Insulator Panel Replacement - Right Side).

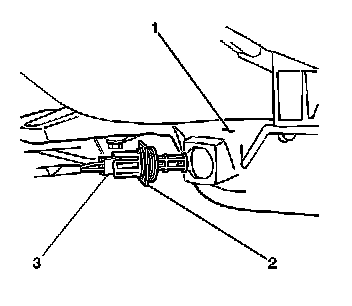

2. Disconnect the electrical connector (3) from the air temperature sensor - lower right (2).
3. Remove the air temperature sensor - lower right (2).

Installation Procedure




1. Install the air temperature sensor - lower right (2).
2. Connect the electrical connector (3) to the air temperature sensor - lower right (2).
3. Install the passenger side closeout panel. Refer to Instrument Panel Insulator Panel Replacement - Right Side (Instrument Panel Insulator Panel Replacement - Right Side).
