Multifunction Turn Signal Switch Housing Replacement

Multifunction Turn Signal Switch Housing Replacement

Removal Procedure




Caution: Refer to SIR Caution (SIR Caution).
1. Disable the SIR system. Refer to SIR Disabling and Enabling (Service and Repair).
2. Remove the steering wheel from the column. Refer to Steering Wheel Replacement (Steering Wheel Replacement).
3. Remove the turn signal and multifunction switch assembly. Refer to Turn Signal Multifunction Switch Replacement (Turn Signal Multifunction Switch Replacement).
4. Remove the windshield washer switch assembly. Refer to Windshield Wiper and Washer Switch Replacement (Windshield Wiper and Washer Switch Replacement).
5. Remove the turn signal cancel cam. Refer to Turn Signal Cancel Cam and Steering Shaft Upper Bearing Spring Replacement (Turn Signal Cancel Cam and Steering Shaft Upper Bearing Spring Replacement).

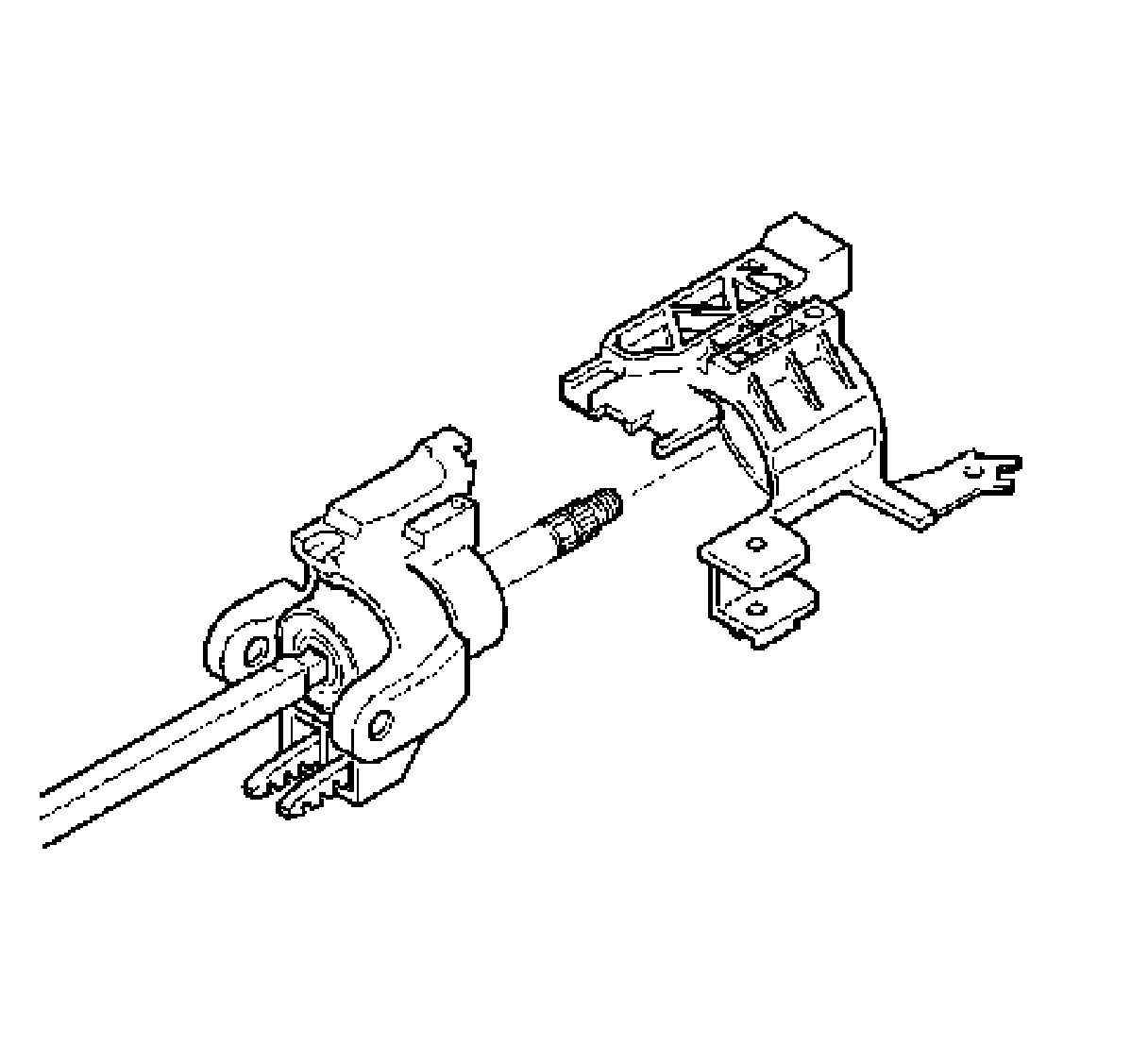

6. Slide the turn signal switch housing off of the steering column shaft assembly.

Installation Procedure





Important: The turn signal switch housing must be pressed firmly against the steering column tilt head in order for the screws from the turn signal and multifunction switch assembly screws to line up.


1. Slide the turn signal switch housing onto the steering column shaft assembly.
2. Install the turn signal cancel cam. Refer to Turn Signal Cancel Cam and Steering Shaft Upper Bearing Spring Replacement (Turn Signal Cancel Cam and Steering Shaft Upper Bearing Spring Replacement).
3. Install the turn signal and multifunction switch assembly. Refer to Turn Signal Multifunction Switch Replacement (Turn Signal Multifunction Switch Replacement).
4. Remove the windshield washer switch assembly. Refer to Windshield Wiper and Washer Switch Replacement (Windshield Wiper and Washer Switch Replacement).
5. Install the steering wheel onto the column. Refer to Steering Wheel Replacement (Steering Wheel Replacement).
6. Enable the SIR system. Refer to SIR Disabling and Enabling (Service and Repair).
