Differential Carrier Assembly Final Assembly

Differential Carrier Assembly Final Assembly

Tools Required
* J 45225 Axle Seal Installer
* J 8092 Universal Driver Handle - 3/4 in - 10

1. Inspect the alignment mark between the differential bearing adjuster and the differential carrier assembly case. If the line between the differential bearing adjuster and the differential carrier assembly case is not aligned, re-align the 2 components as necessary.

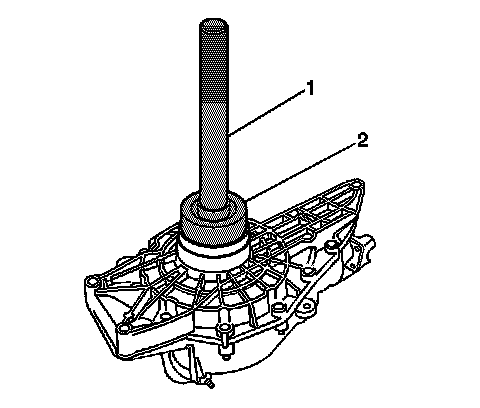

2. Install the left side inner shaft seal using the J 45225 (2) and the J 8092 (1).

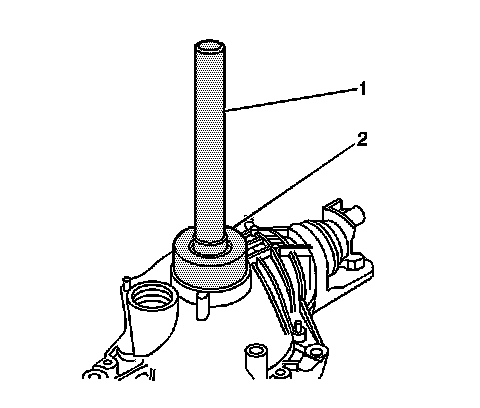

3. Install the right side inner shaft seal using the J 45225 (2) and the J 8092 (1).

Notice: Refer to Component Fastener Tightening Notice (Component Fastener Tightening Notice).

4. Install the drain plug.

Tighten the drain plug to 32 Nm (24 ft. lbs.).

5. Install the fill plug.

Tighten the fill plug to 32 Nm (24 ft. lbs.).
