Head Restraint Support



Head restraint support

To remove

1. Remove the head restraint.

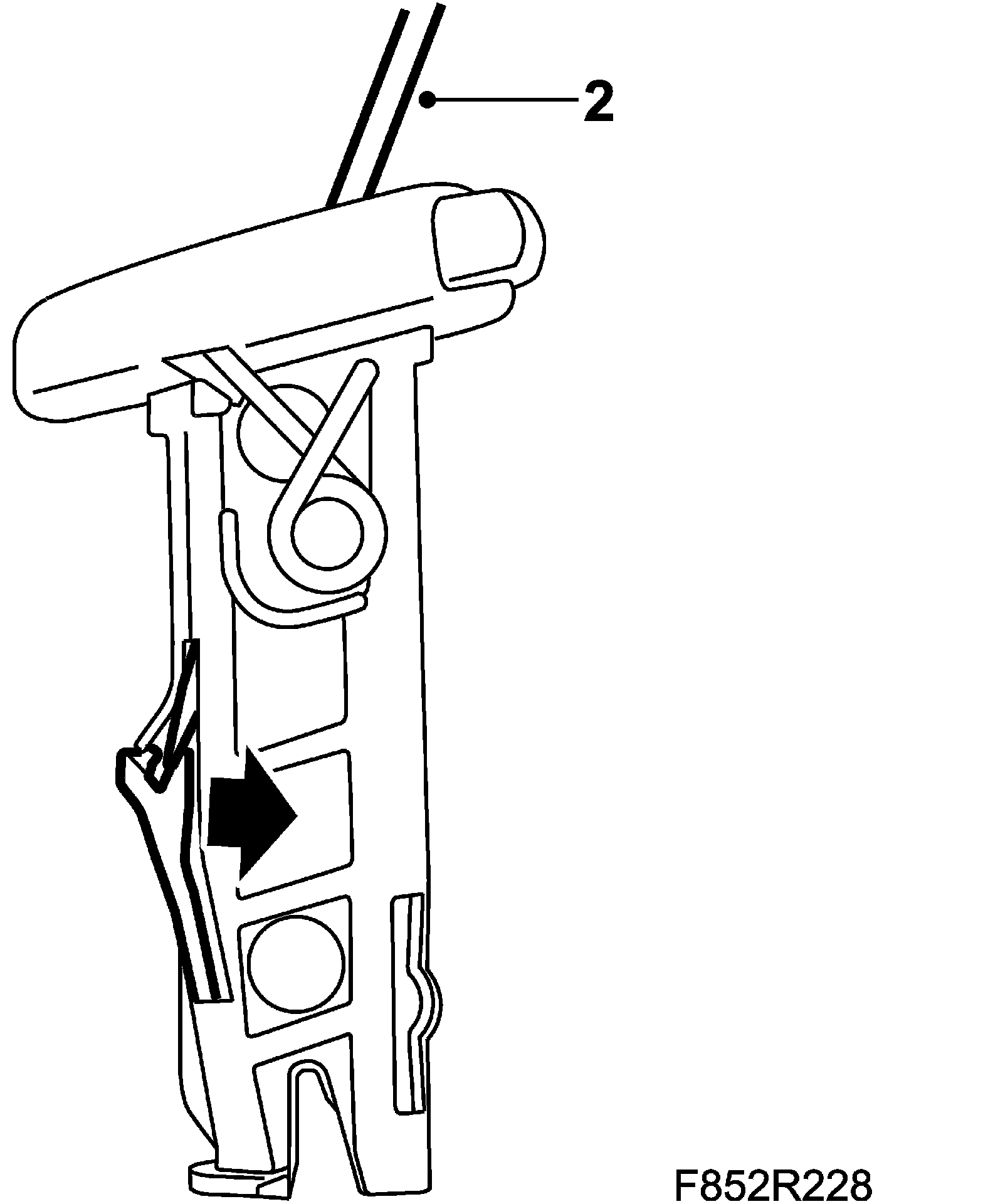

2. Press the catch inside the sleeve with a small screwdriver while lifting the sleeve at the same time.







To fit

1. Press the head restraint supports in place so that the catches engage.
2. Fit the head restraint.
