Reversing Light Bulb, 5D

Reversing Light Bulb, 5D

To remove

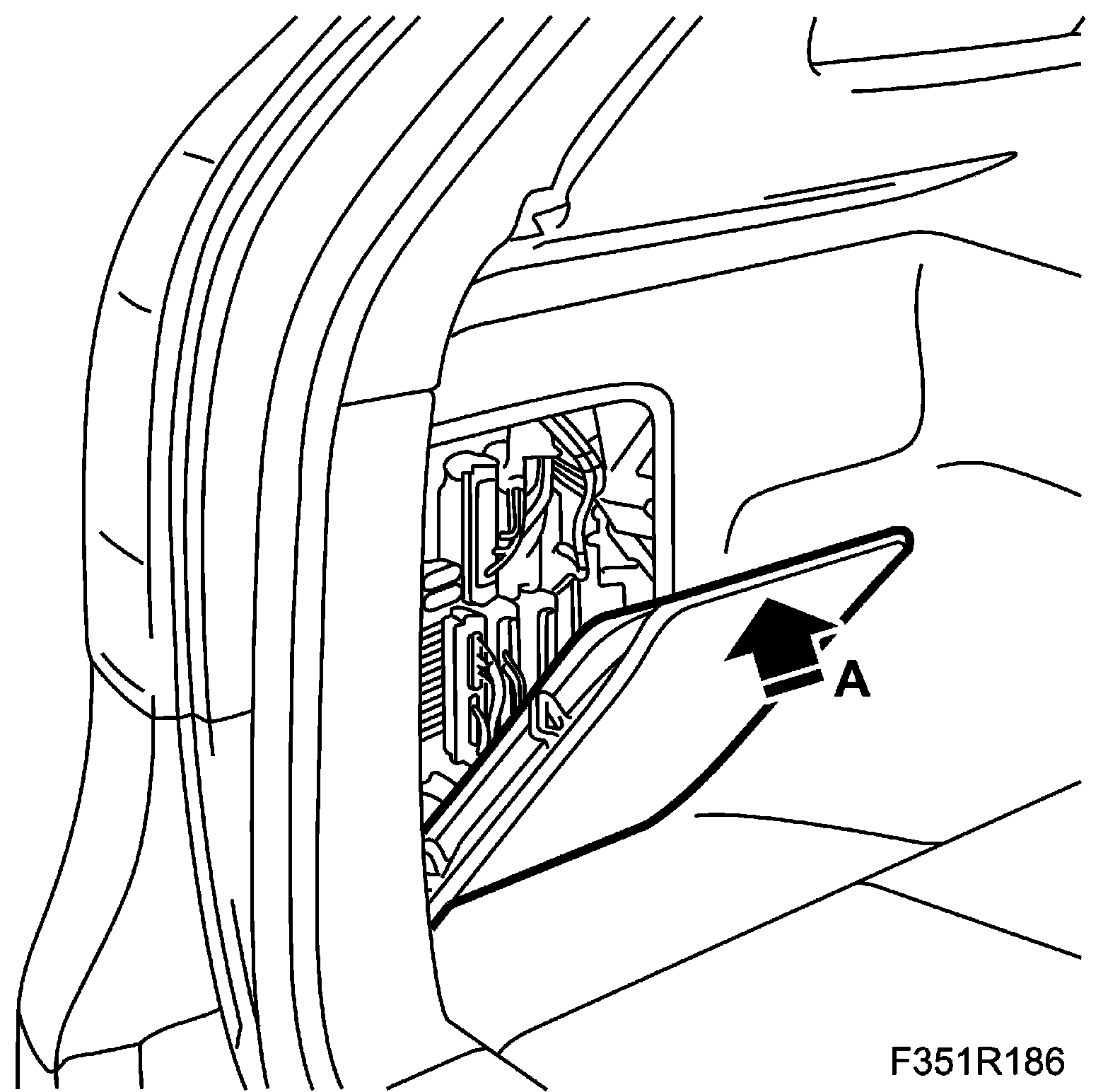

1. Lower the hatch (A).





2. Remove the reversing light bulb:

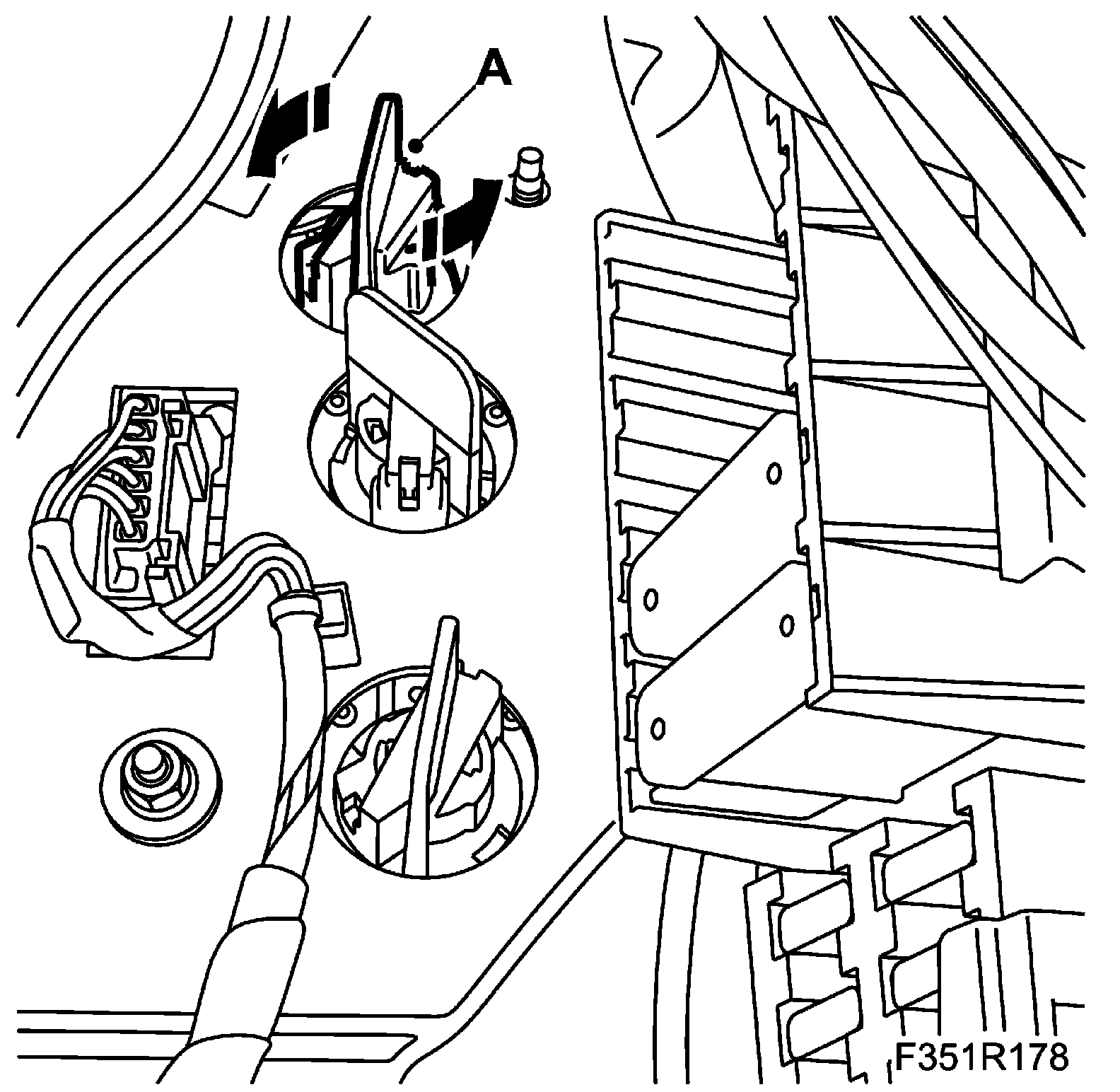

^ Turn the bulb socket (A) anticlockwise.

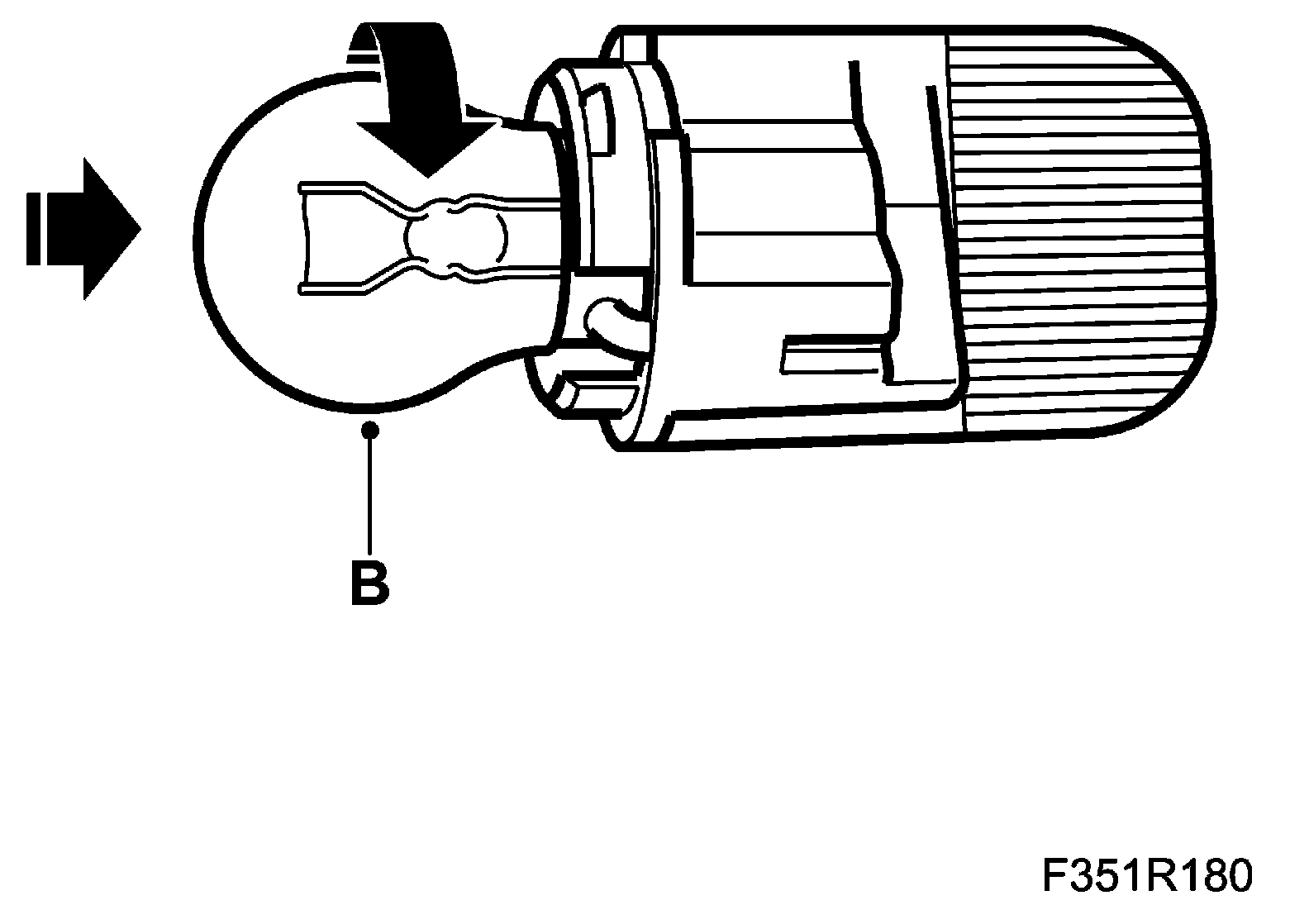

^ Press in the bulb (B) slightly and turn anticlockwise.





To fit

IMPORTANT: When changing a bulb, use one with the right output otherwise the components could be damaged.

1. Fit the reversing light bulb:

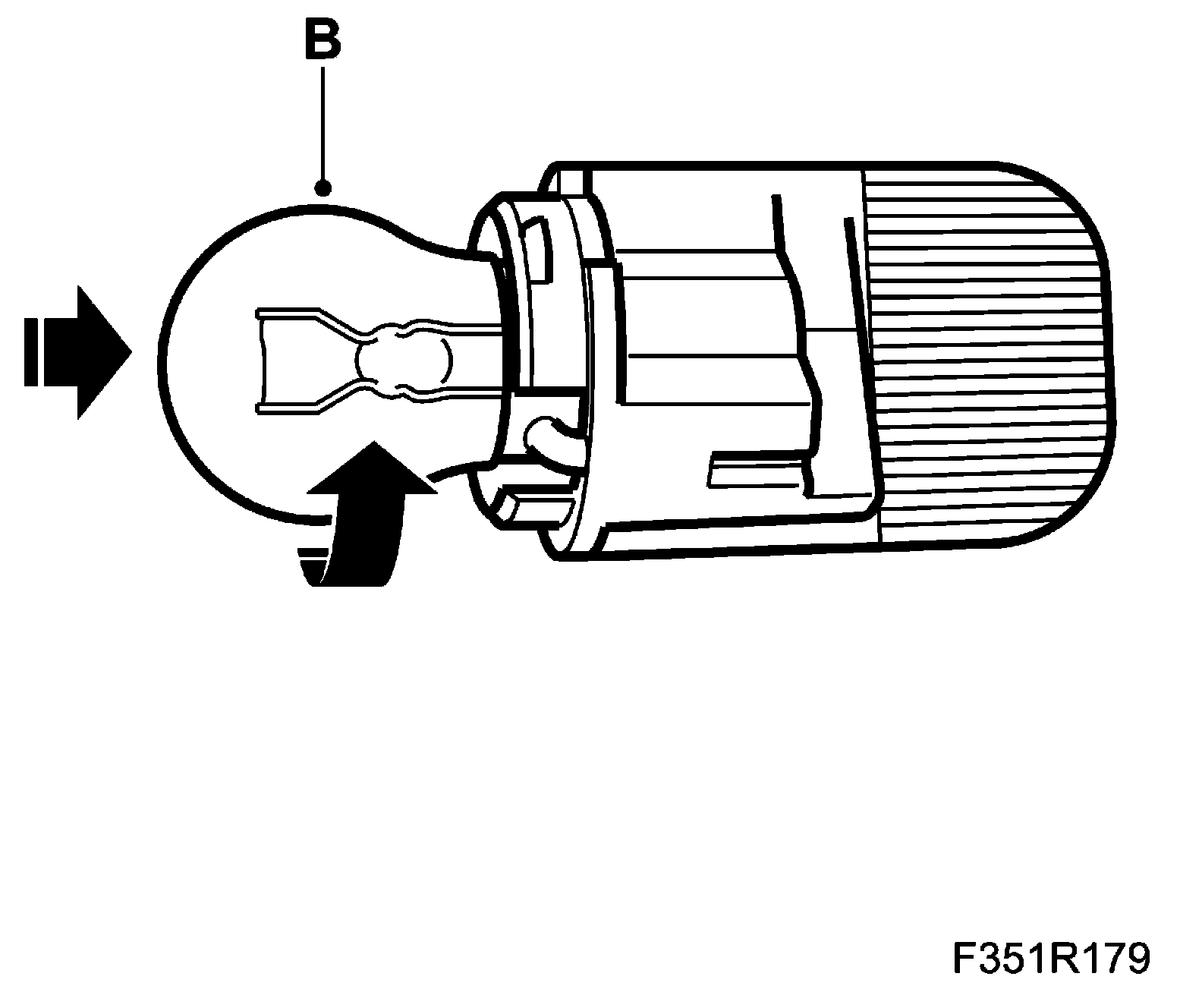

^ Insert the bulb (B) and turn clockwise.

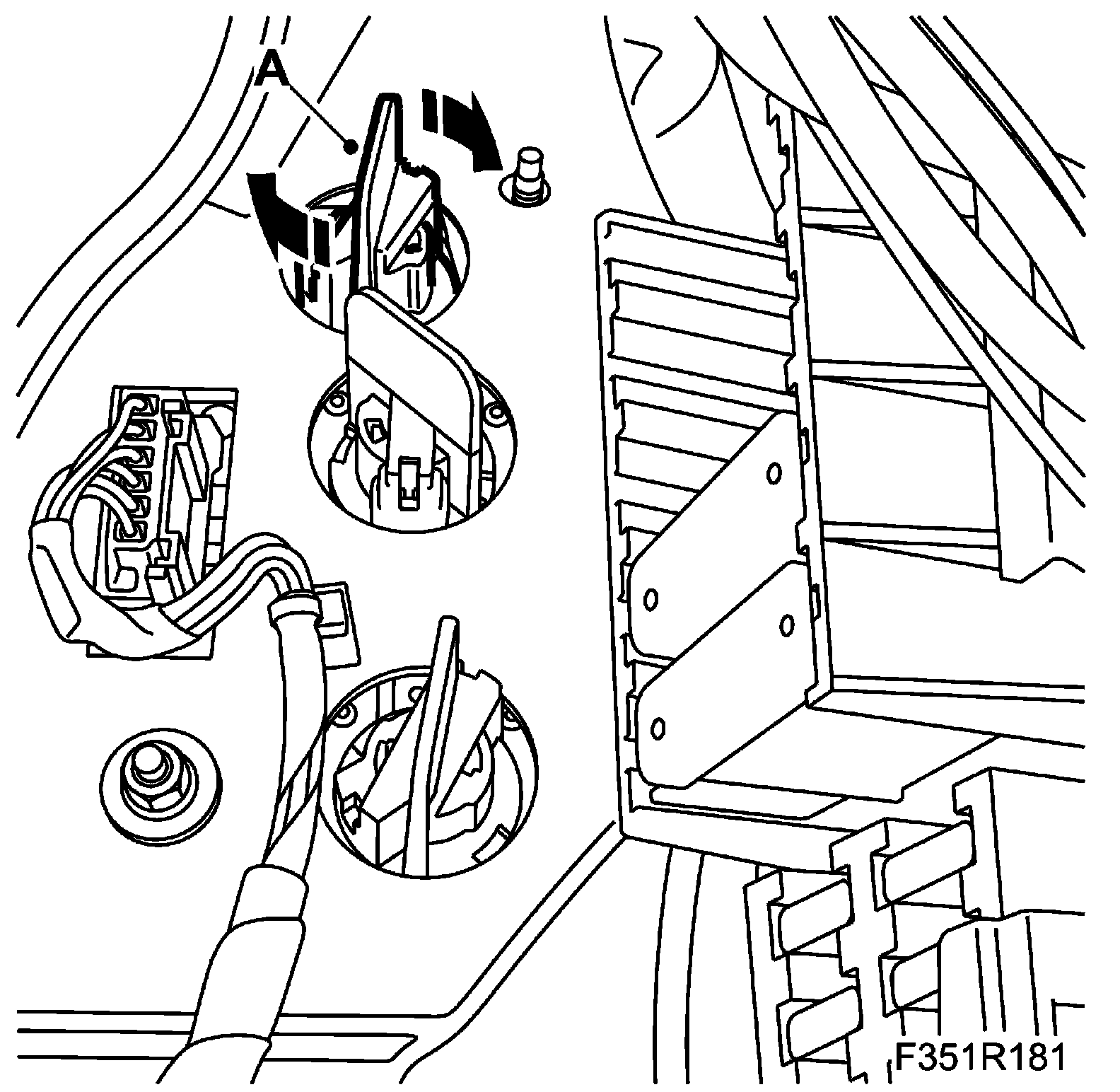

^ Turn the bulb socket (A) clockwise.





2. Raise the hatch (A).
