Removal and Replacement

Headlamps

To remove
1. Remove the bumper shell.
2. Remove the headlamp:

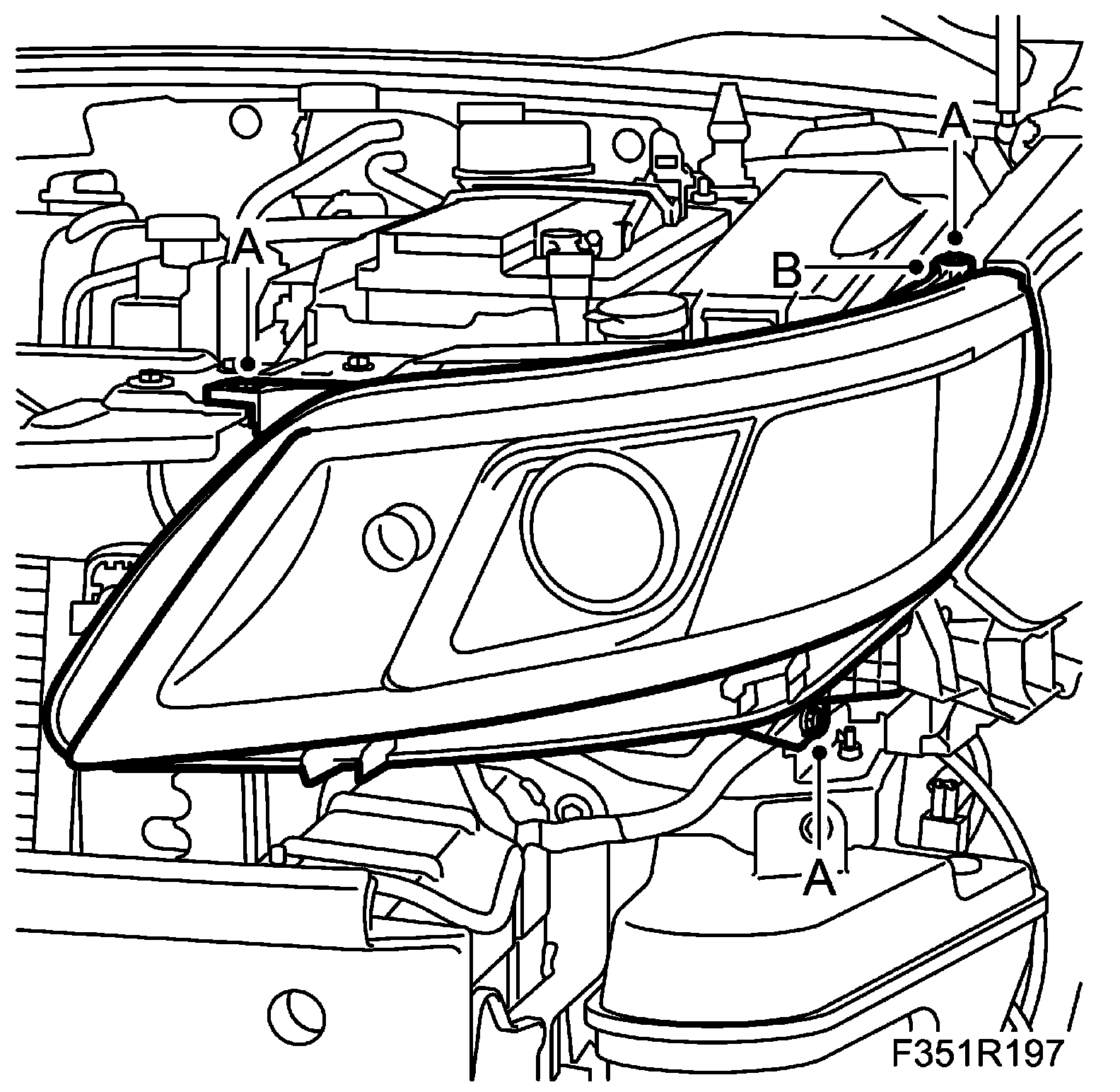

^ Remove the headlamp's retaining bolts (A).

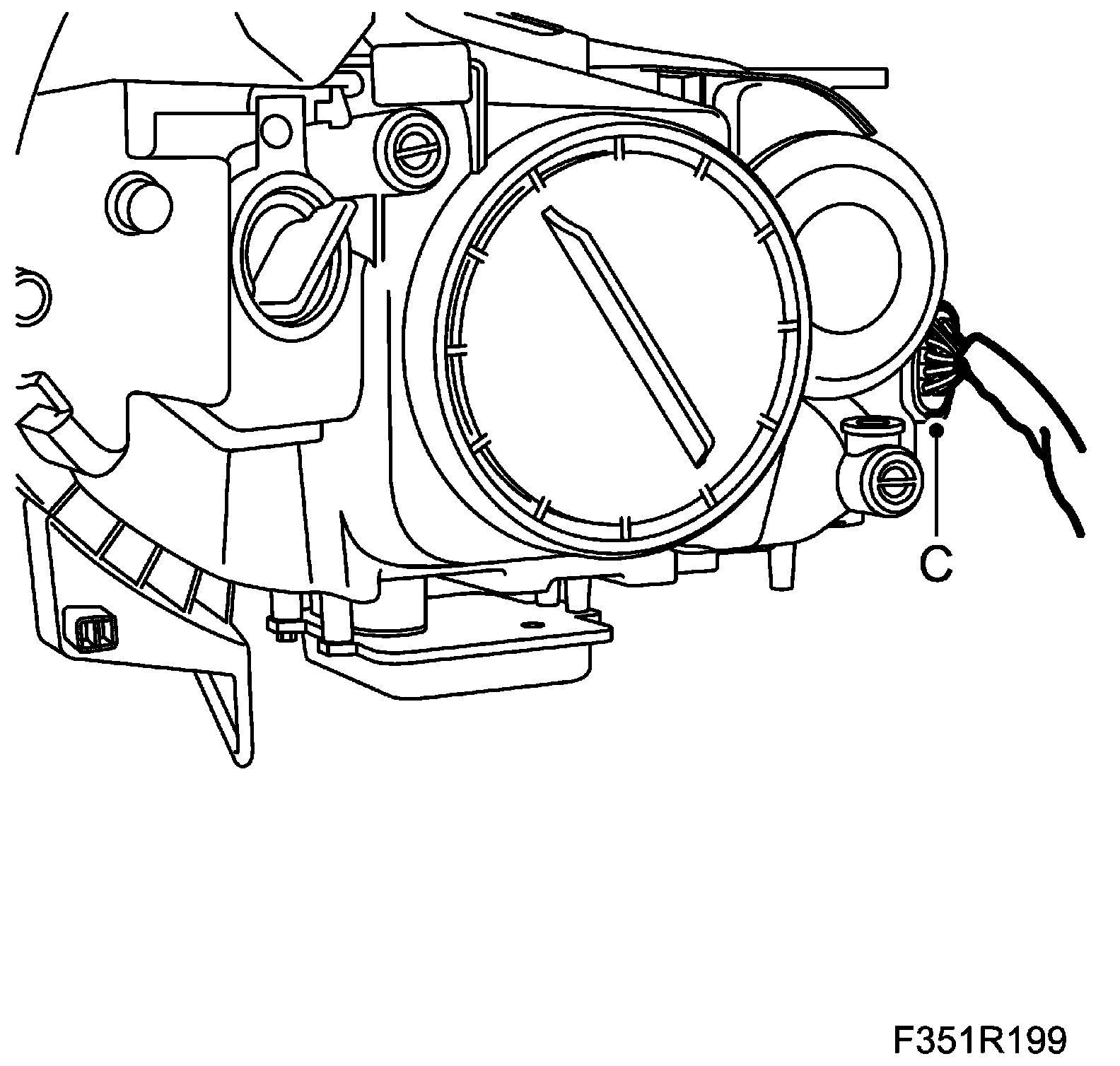

^ Release the headlamp from the upper, rear mounting (B), lift it out a bit and detach the connector (C).





To fit
1. Fit the headlamp:

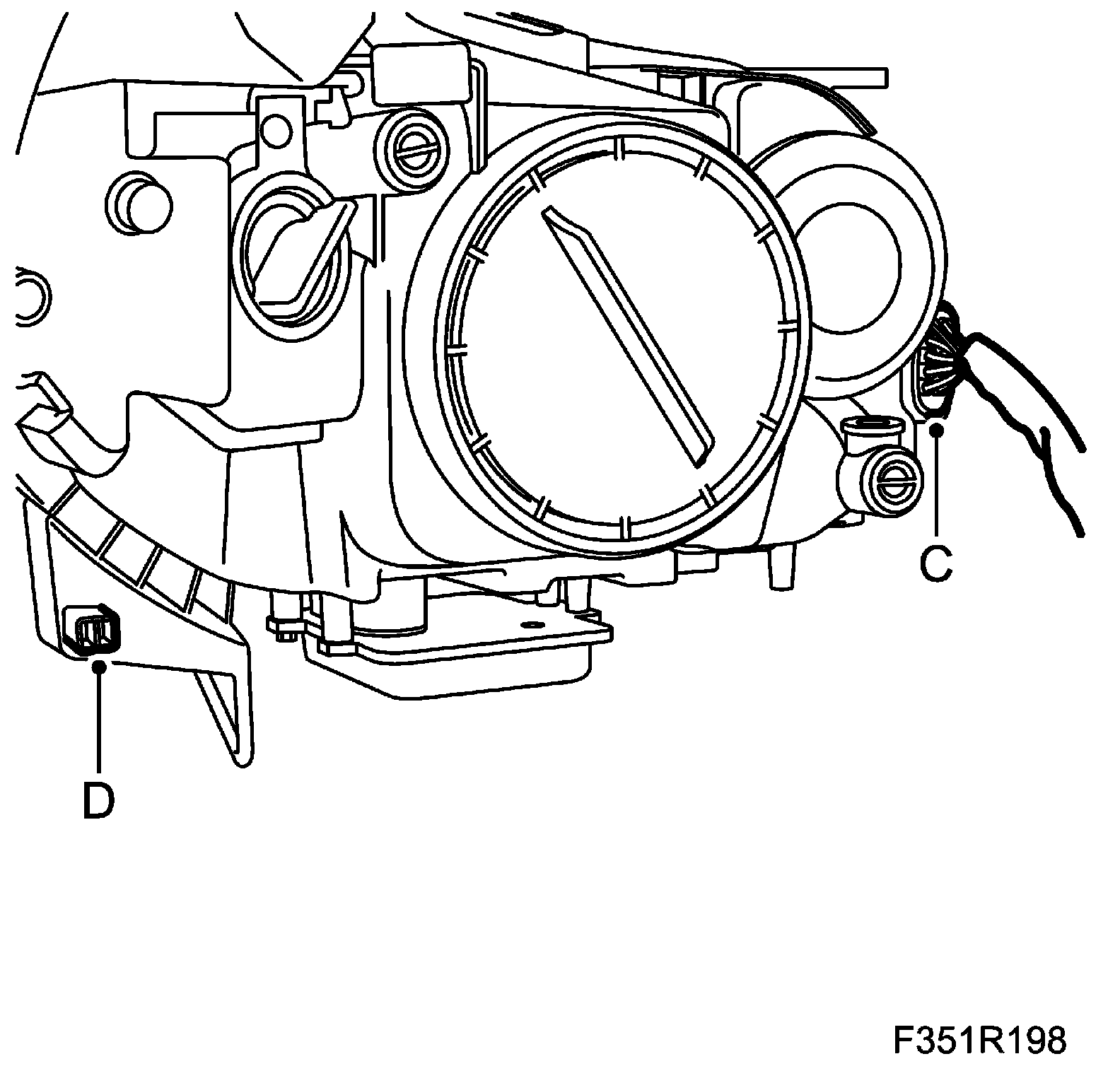

^ Attach the connector (C), angle in the headlamp and position it correctly, guiding it using the guide pin (D). Snap it into place in the rear, upper mounting (B).





^ Fit the headlamp's retaining bolts (A).





2. Fit the bumper shell.
3. Check and, if necessary, adjust the light setting / light setting (US/CA).
