Integrated Accessory Switch Assembly: Description and Operation

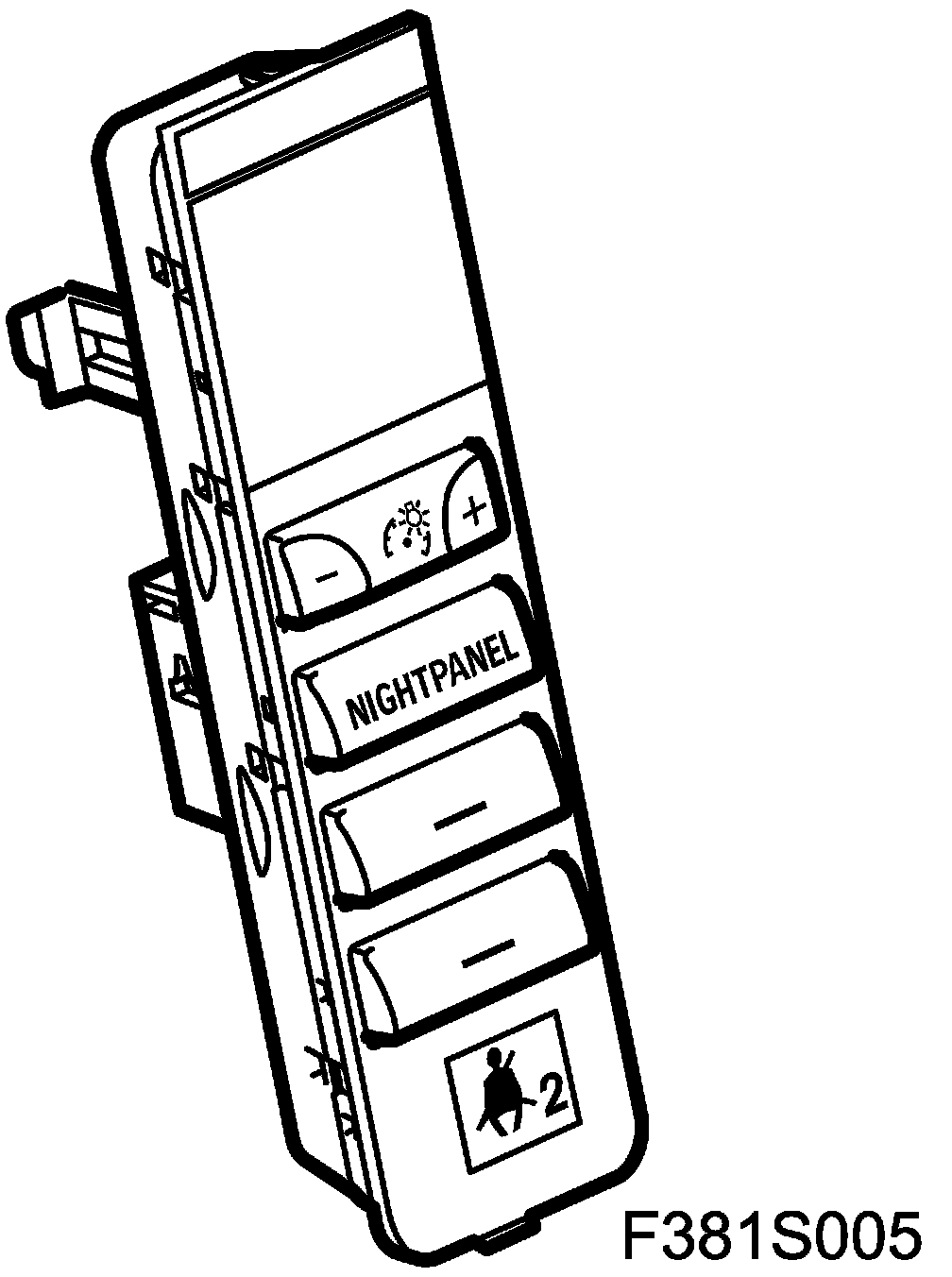

Switch Panel (737a)

Location
Switch panel (737a)

Main task

Functions in the switch panel:

Functions depend on the equipment level of the car.
^ adjust the brightness of the instrument illumination
^ turn on or off extra equipment (4D)
^ operate the soft top (CV)
^ Night Panel (extinguishes certain parts of instrument illumination)
^ Indicates passenger airbag ON/OFF, used by PPS (Passenger Presence System), certain markets

Switch panel appearance is tied to the equipment level of the car.








For some markets, the switch panel contains LEDs that are used by the PPS control module to indicate whether the passenger airbag is ON or OFF.

The switch panel has one 12-pin connector.

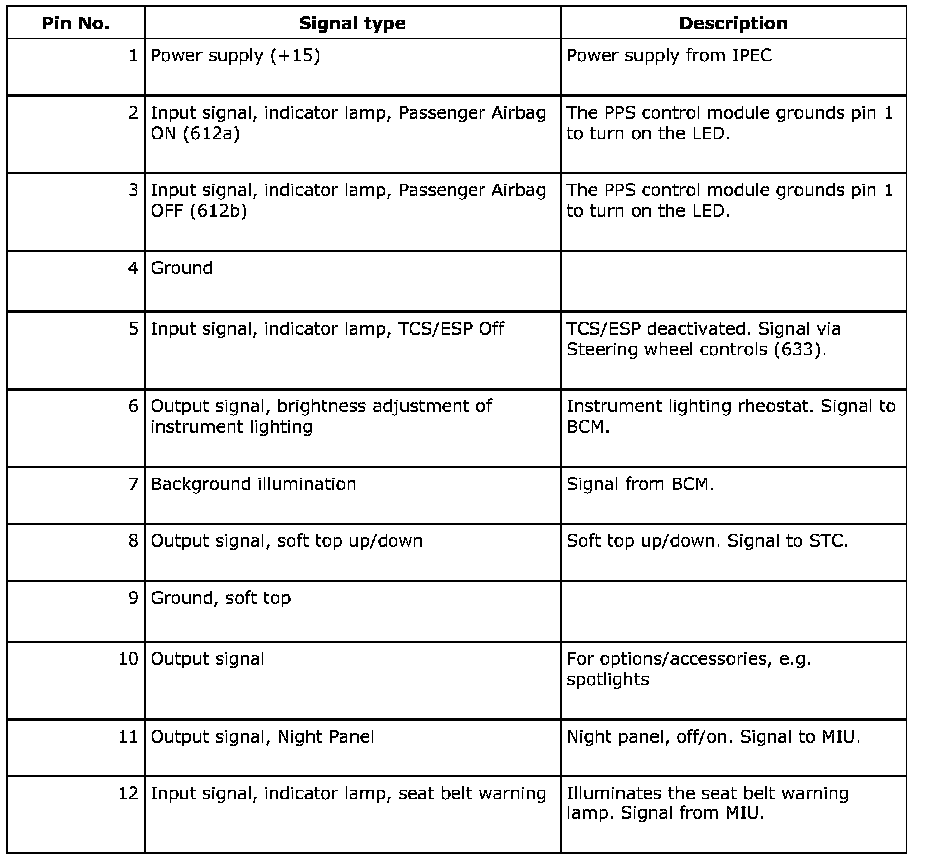

Connection





Wiring diagram
