Procedures

Refilling/changing the gearbox oil

The gearbox has no level plug. In order to ascertain the level the gearbox must first be drained at the drain plug.

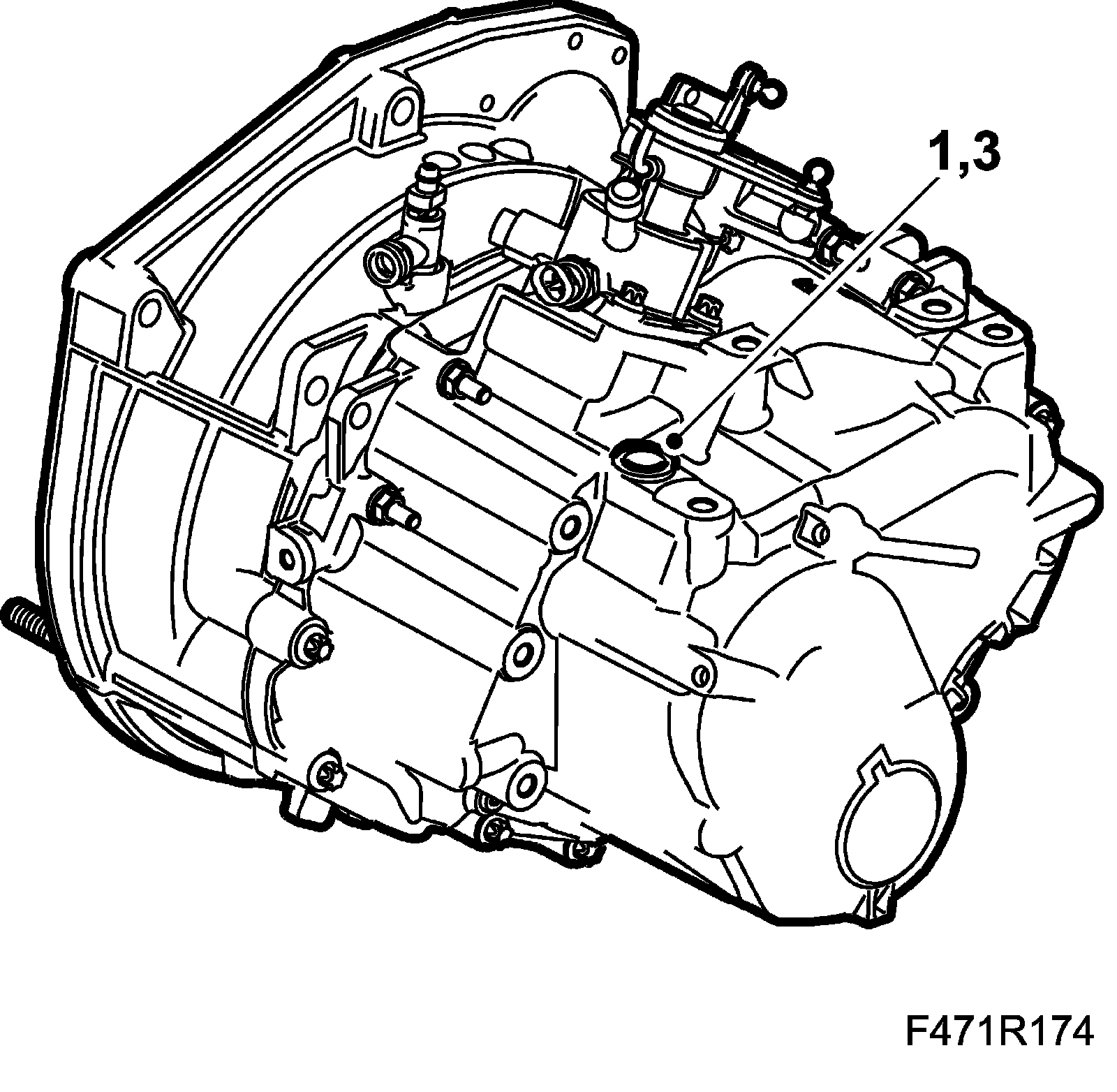

1. Remove the filler plug.
2. Fill with 2.2 L oil in accordance with List of lubricants and sealants.

Filler plug:

3. Fit the filler plug.

Tightening torque 45 Nm (33 ft. lbs.)
