Backrest Cover, Front Seat, CV

Backrest Cover, Front Seat, CV

To remove

1. Remove the backrest tab.

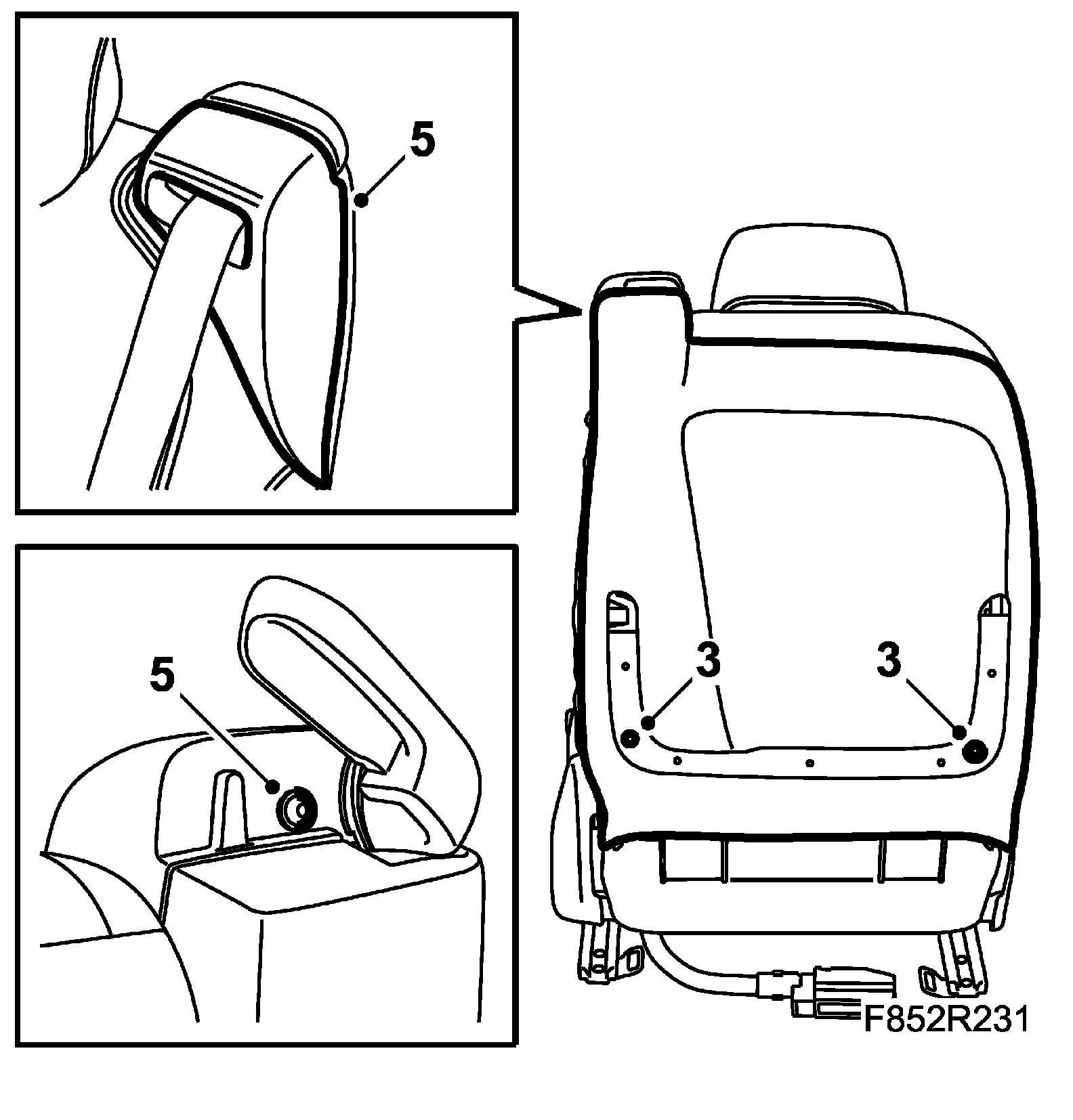

2. Remove the lower screws from the cover.







3. Remove the screw for the strap guide cover. Remove the cover by pulling it straight up.

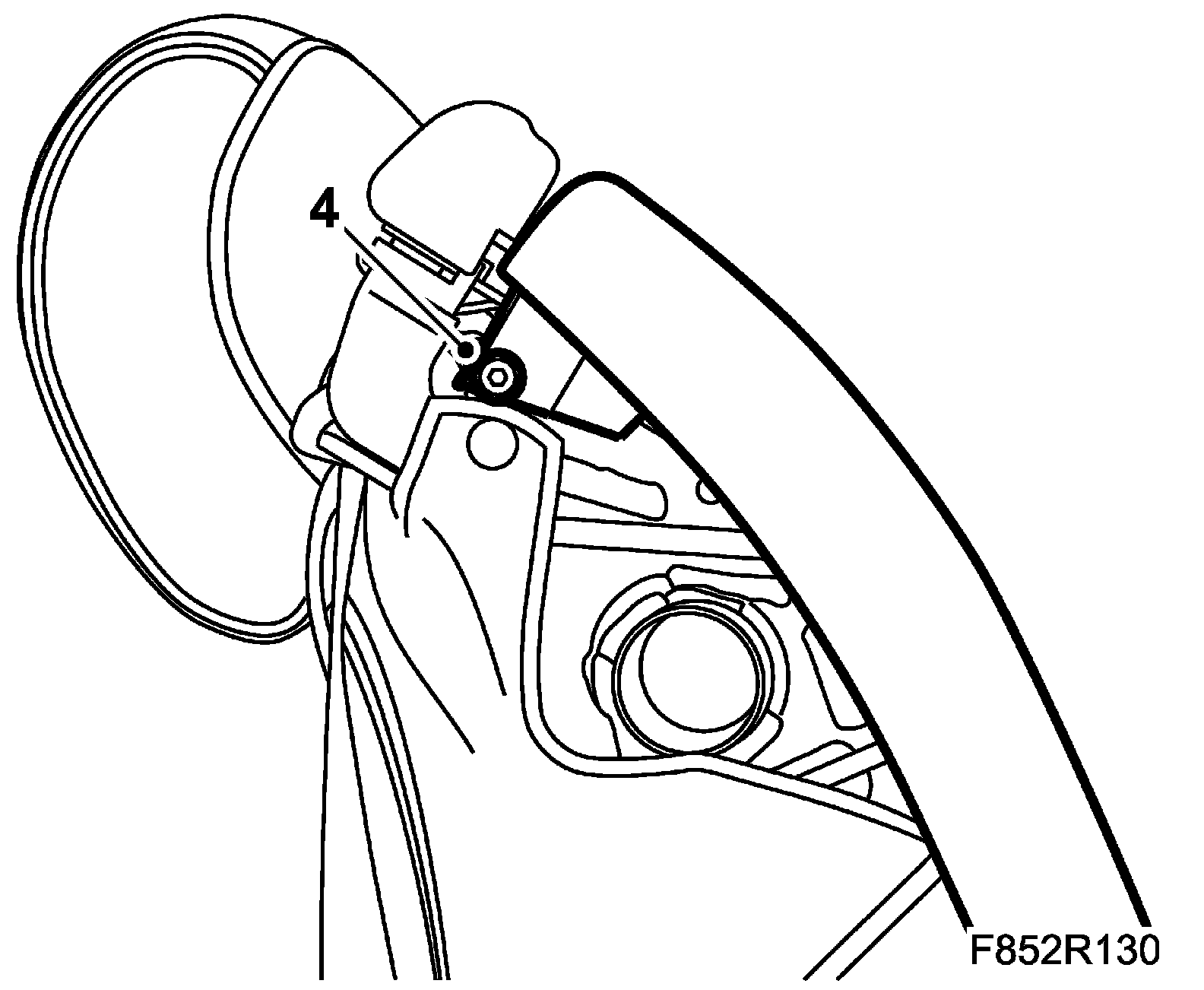

4. Remove the upper screws from the cover.







5. Pull the backrest cover down.

To fit

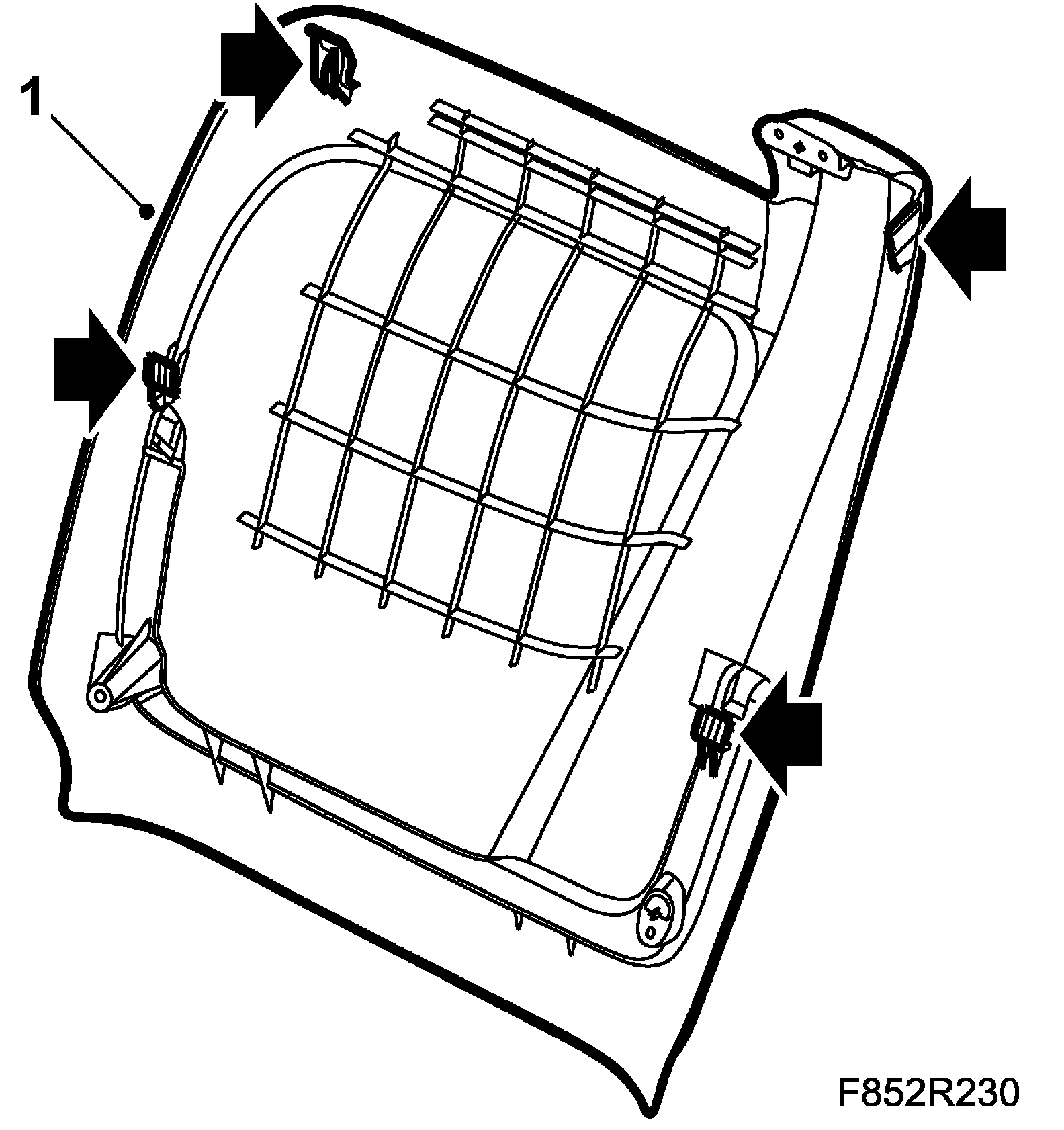

1. Attach the cover to the backrest.

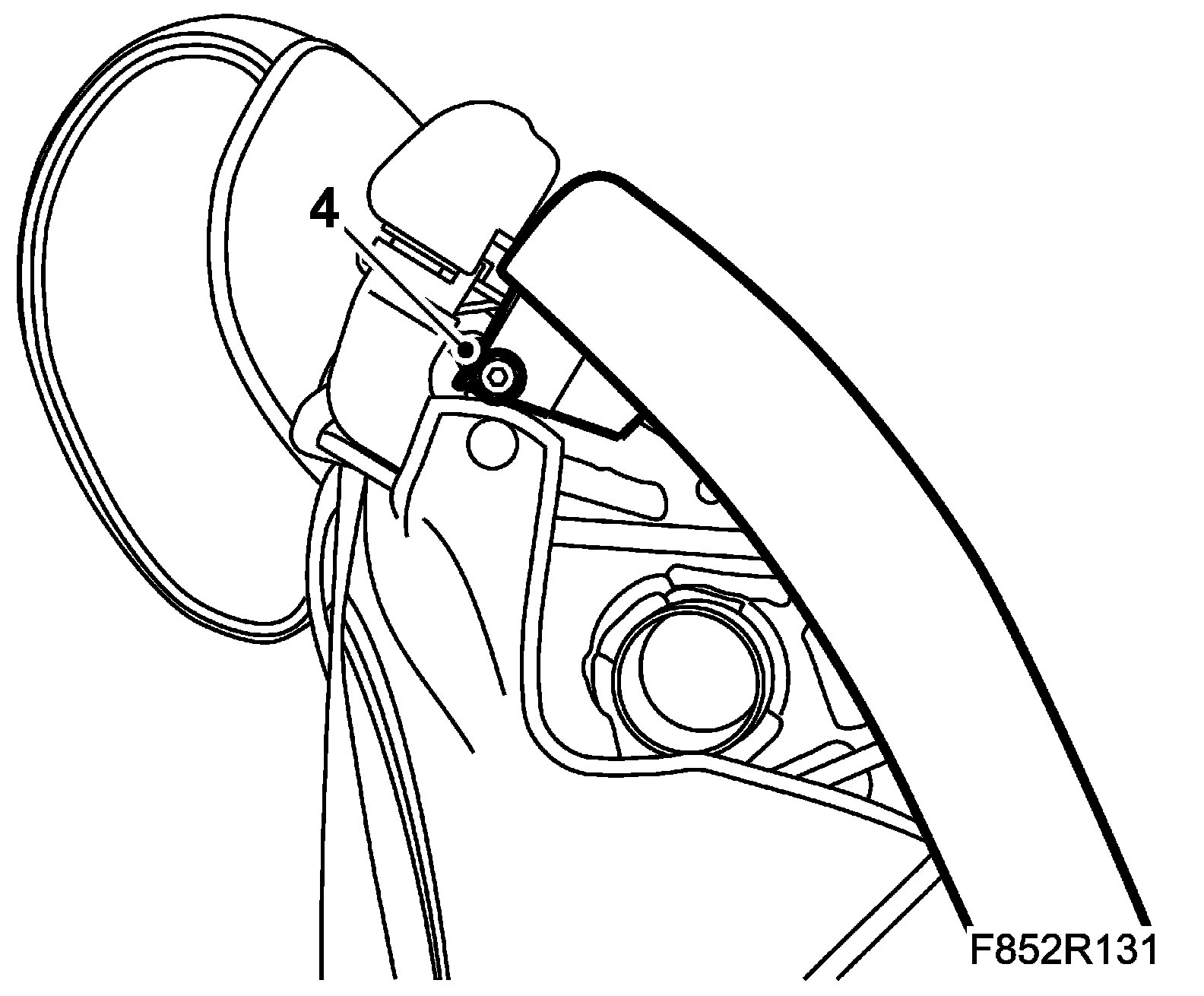

2. Fit the upper screws.







3. Fit the lower screws.







4. Fit the backrest tab.
5. Put in place the guide strap cover. Fit the screw.
