Crimp J211, Main Wiring Harness

Crimp J211, Main Wiring Harness:

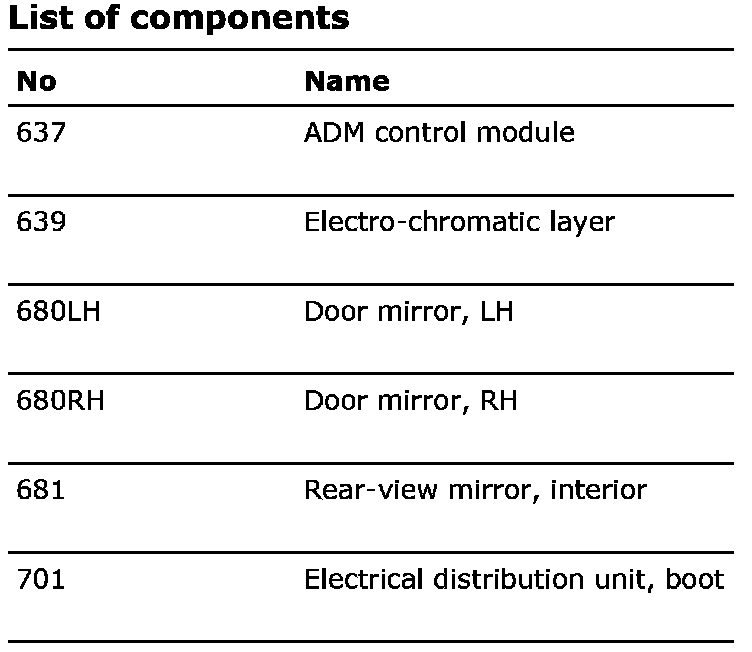

List Of Components:

Location:

4D: In branching point impact sensor left C-pillar

5D: Approx. 200 mm from branching point to grounding point G33P/S towards LH rear door

CV: Approx. 200 mm from branching point front left door towards roof light unit
