Hose, Air Cleaner Connection

Hose, Air Cleaner Connection, B284

To remove

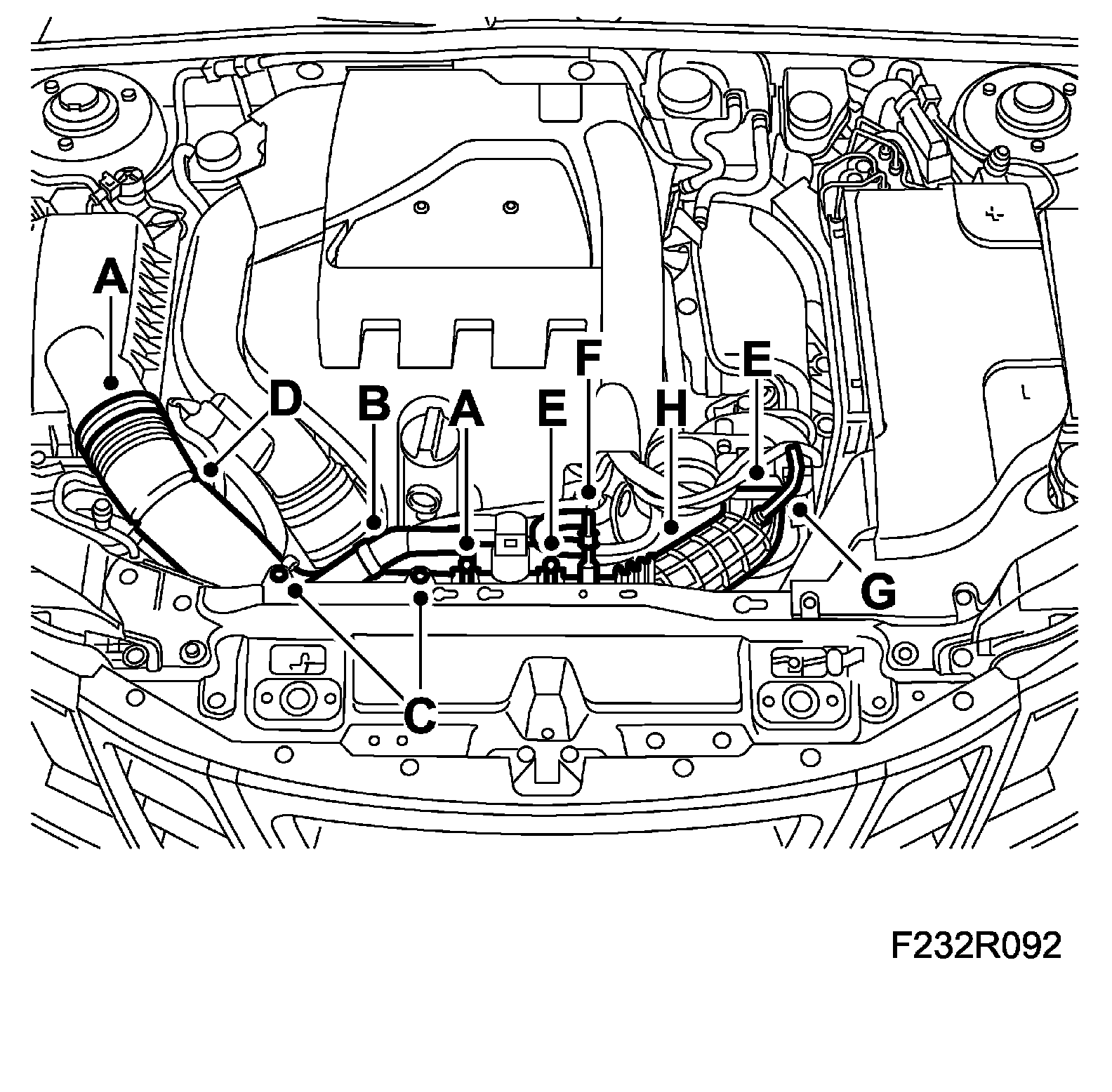

1. Remove the air cleaner connection pipe.
^ Undo the hose clips (A).
^ Remove the hose (B) for crankcase ventilation.
^ Remove the bolts (C).
^ Remove the pipe (D) for air cleaner connection.





2. Remove the air cleaner connection hose.
^ Detach the hose clips (E).
^ Remove the hose (F) crankcase ventilation to dipstick.
^ Remove the hose (G) for the solenoid valve.
^ Remove the hose (H).

To fit
1. Fit the air cleaner connection pipe.
^ Fit the pipe (D) for the air cleaner connection.
^ Fit the bolts (C).
^ Fit the hose (B) for crankcase ventilation.
^ Tighten the hose clips (A).





2. Fit the air cleaner connection hose.
^ Fit the hose (H).
^ Fit the hose (G) for the solenoid valve.
^ Fit the hose (F) crankcase ventilation from dipstick.
^ Tighten the hose clips (E).
^ Connect the hose to the air cleaner casing cover (B).
^ Attach the pipe to the air cleaner casing cover (A).
