Fuel Pump Control Unit: Service and Repair

Control Module, Fuel Pump (697)

To remove
1. 4D/5D: Remove the right front seat.
CV: Remove the seat cushion of the rear seat.
2. 4D/5D: Fold up the right corner of the rear carpeting.

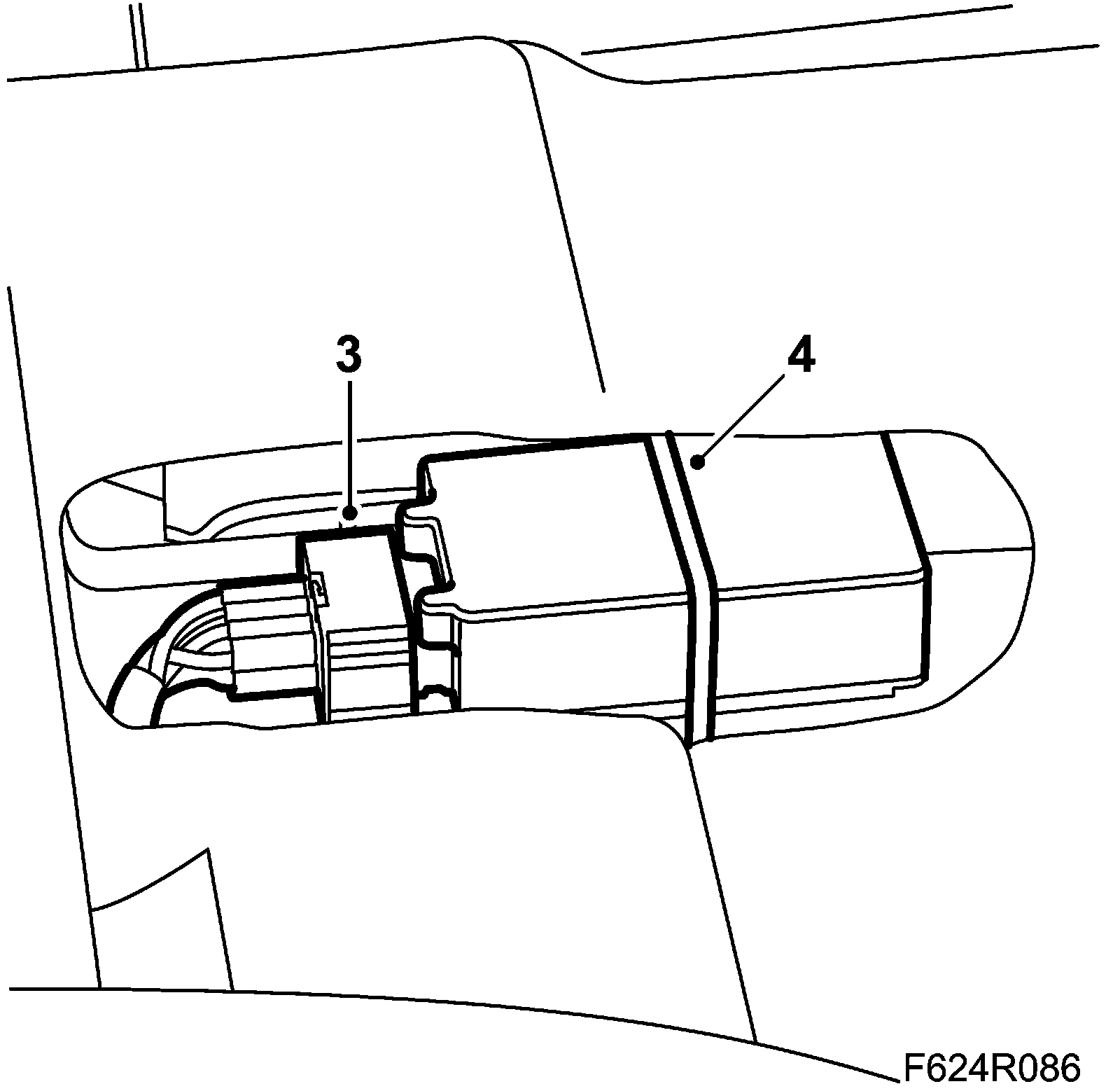

3. Lift up the control module slightly and unplug the connector.

IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins.







4. Cut the cable tie holding the control module to the insulation.

To fit

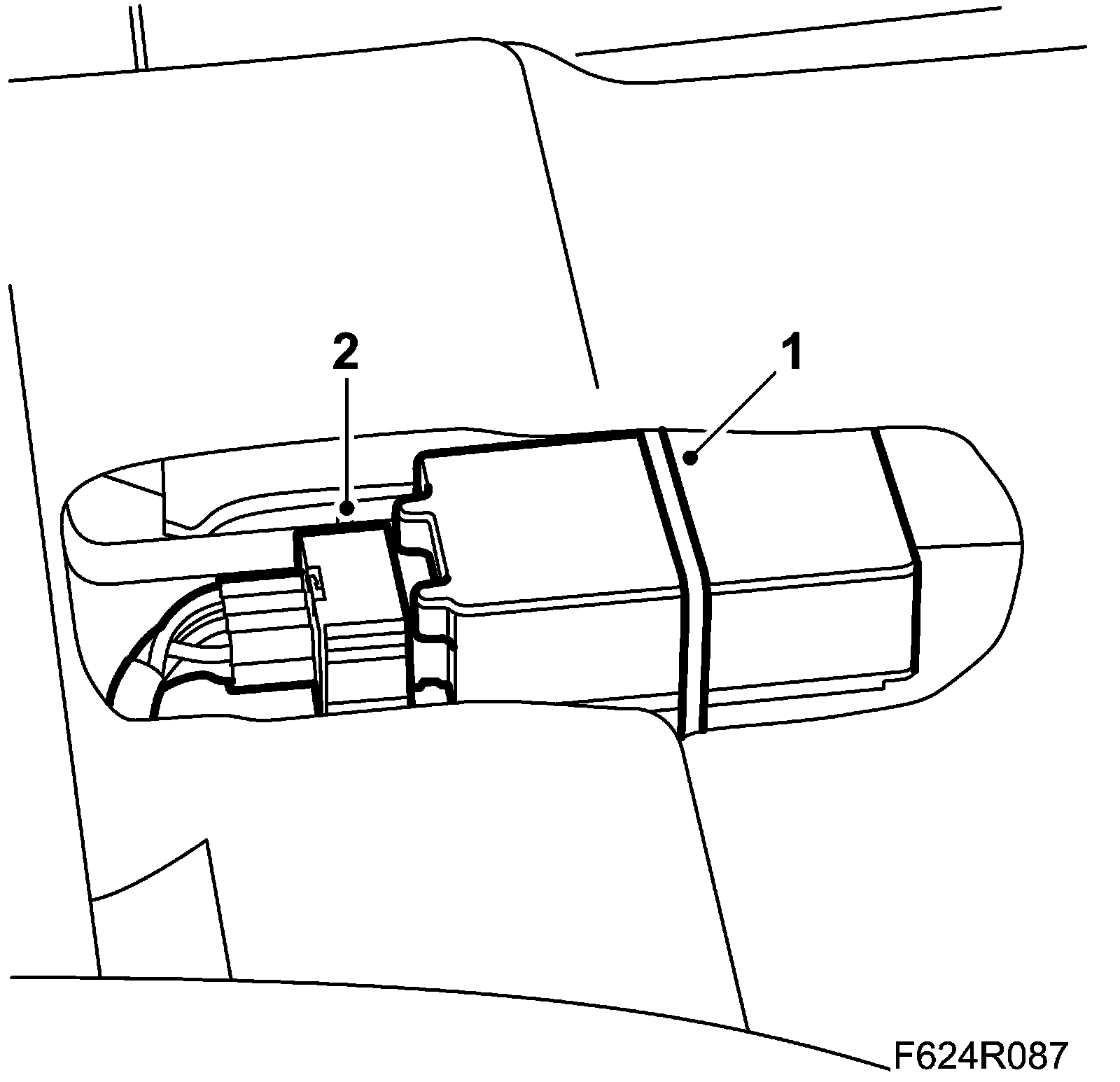

1. Position the control module on the insulation and fit a cable tie.







2. Plug in the connector and position the control module.
3. 4D/5D: Reposition the right corner of the rear carpeting.

IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector.

4. 4D/5D: Fit the right front seat.
CV: Fit the seat cushion of the rear seat.
