Solenoid Valve, Differential Clutch (724a)

Solenoid valve, differential clutch (724a)

Location

Integrated in the differential clutch.

Main function

To control the hydraulic pressure to the differential clutch.

Type

Solenoid.

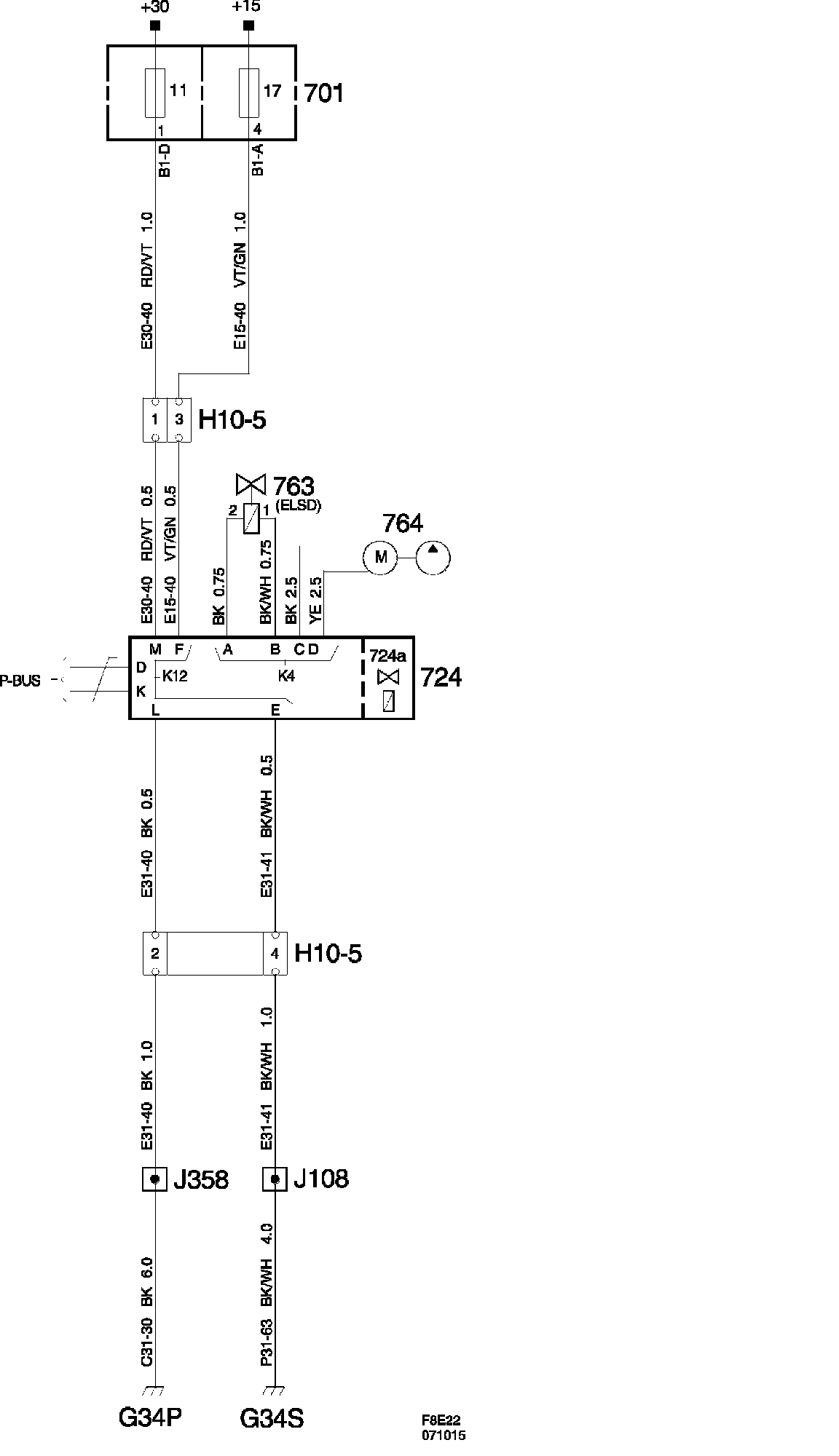

Electrical connections

Diagram





Function

The pressure control valve is electrically controlled and its function is to regulate the hydraulic pressure (0-30 bar) to the operating piston. The valve is directly connected to the XWD control module which supplies it with a PWM voltage. The valve is precisely calibrated together with the XWD control module, they must be replaced together without exception.
