Luggage Compartment Scuff Plate, 5D

Luggage Compartment Scuff Plate, 5D

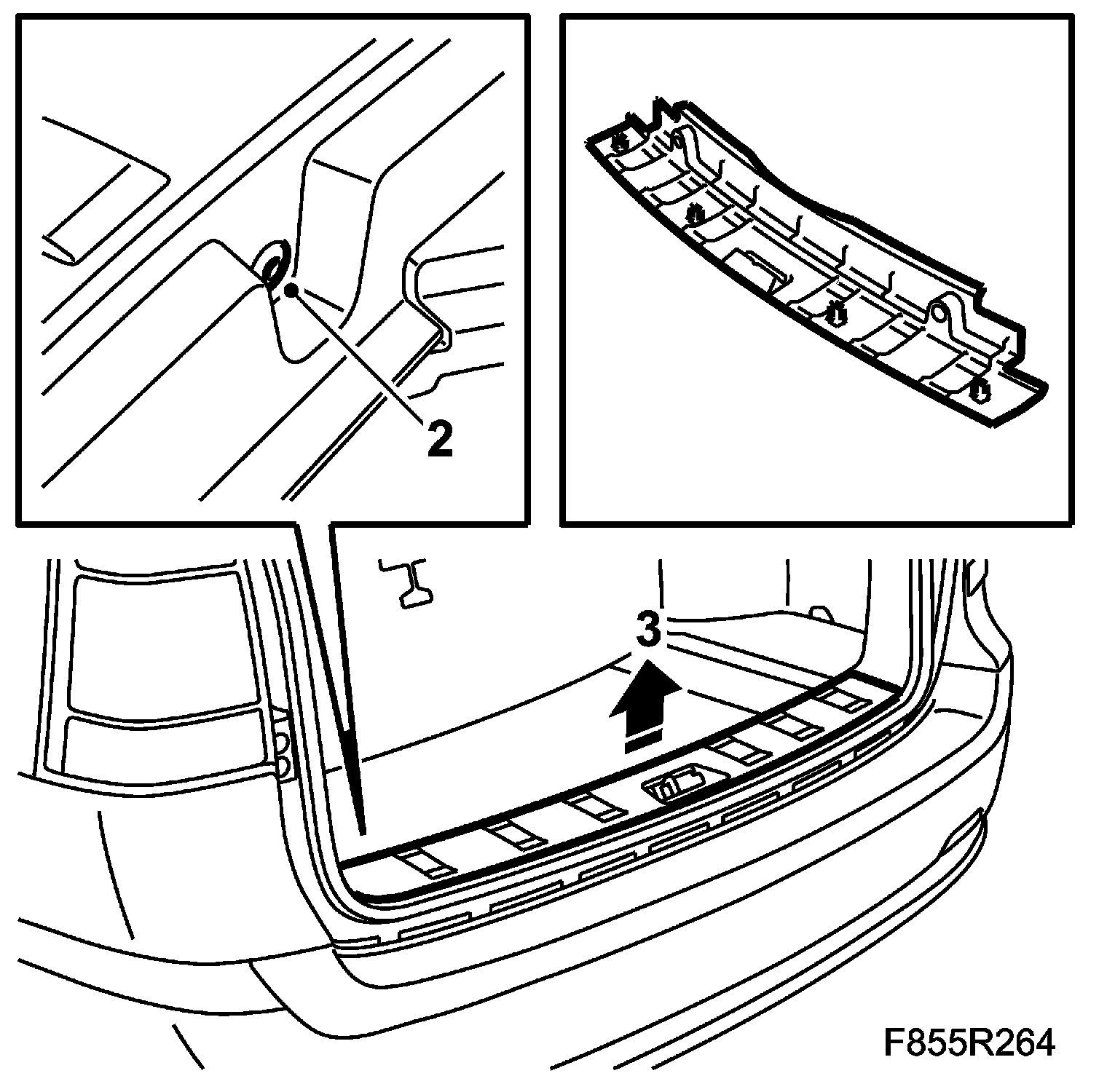

To remove

1. Open the tailgate.
2. Remove the scuff plate clips using 84 71 179 Removal tool, clips.







3. Lift up the scuff plate.

To fit

1. Fit the scuff plate.







2. Fit the scuff plate clips.
3. Close the tailgate.
