Grounding Point G29

Grounding Point G29

Location

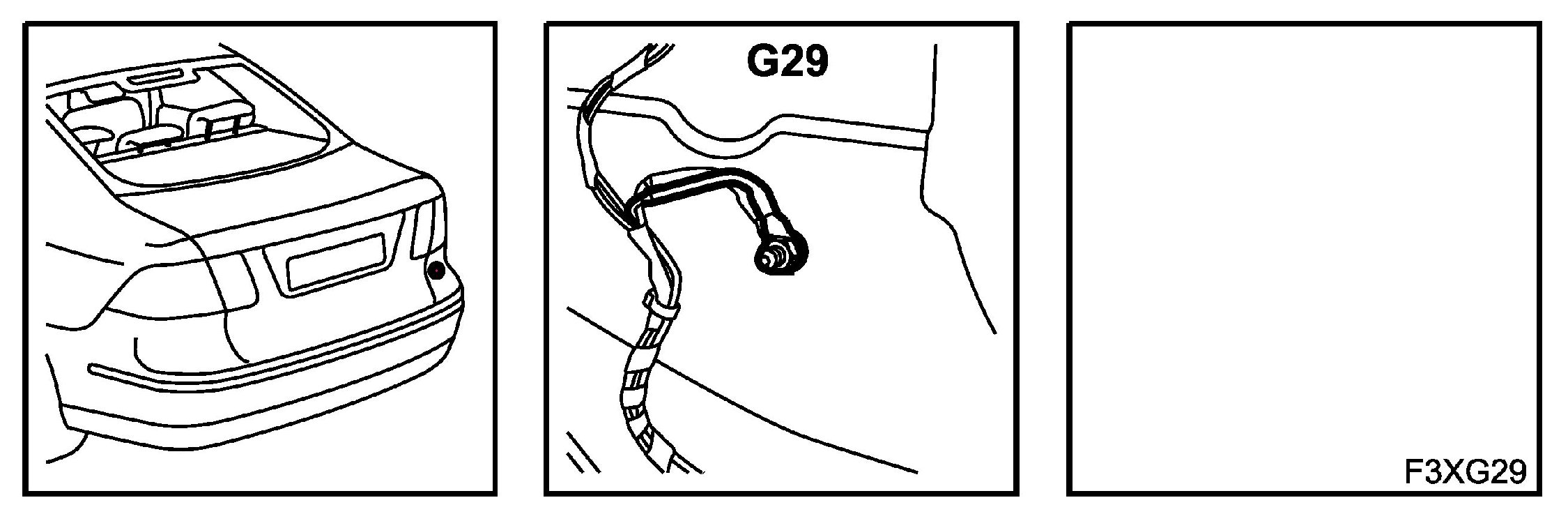

4D: In luggage compartment below the right light cluster.

Grounding Point G29:

4D

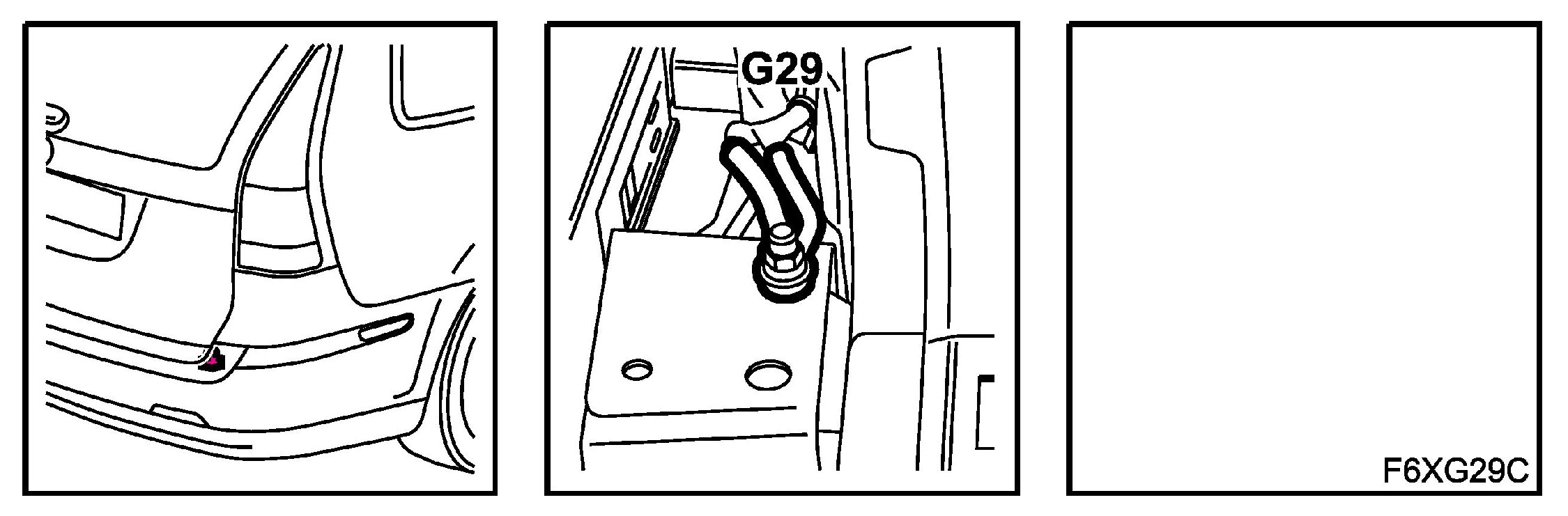

5D: On right-hand rear luggage compartment floor support.

Grounding Point G29:

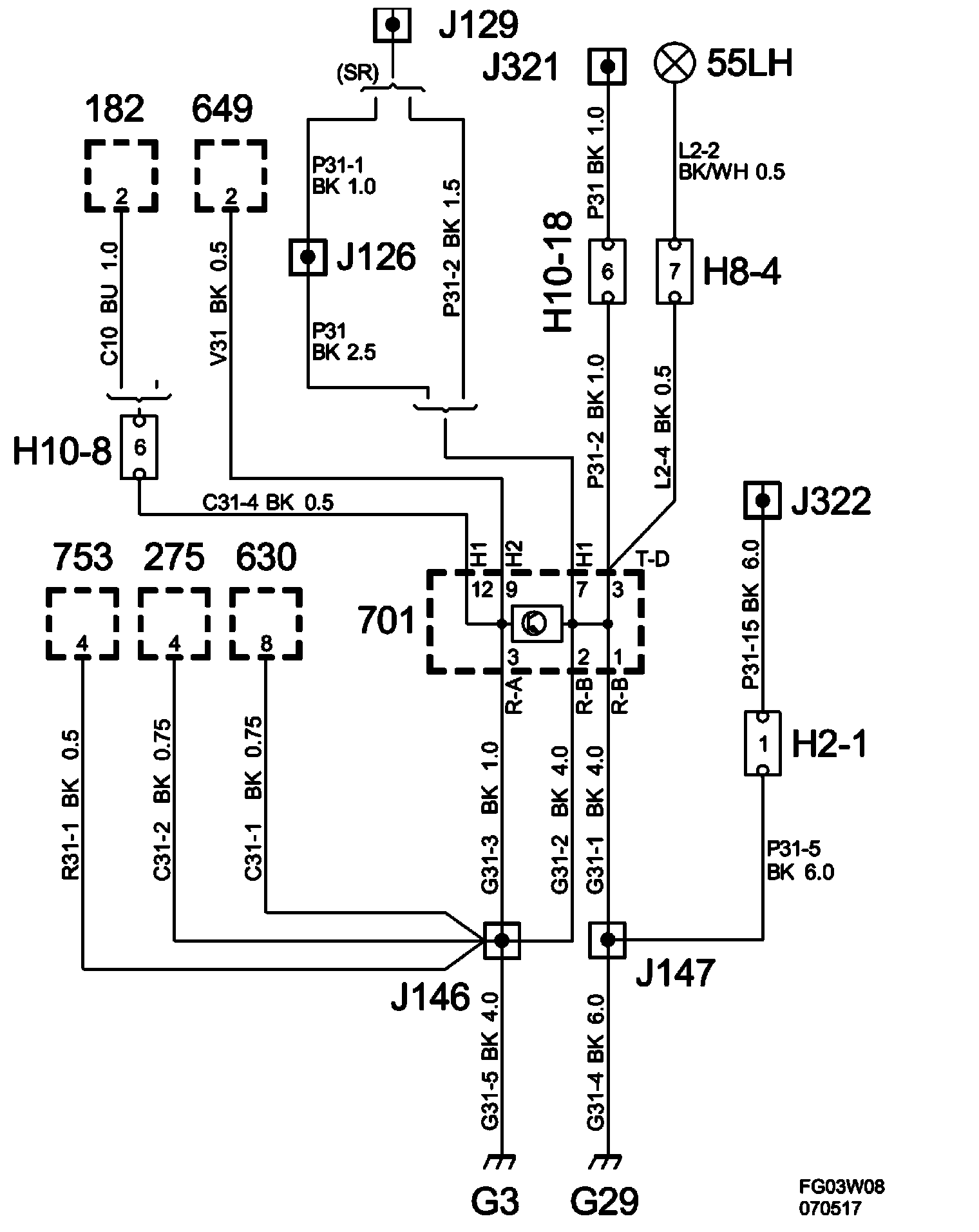

Connected Components 5D:

Via the luggage compartment electrical centre 701, the grounding point is connected to:
Grounding point G3, 4D
Grounding point G3, 5D

See these grounding points for other connected components.
