Hose, Air Cleaner Connection

Hose, Air Cleaner Connection B207

To remove

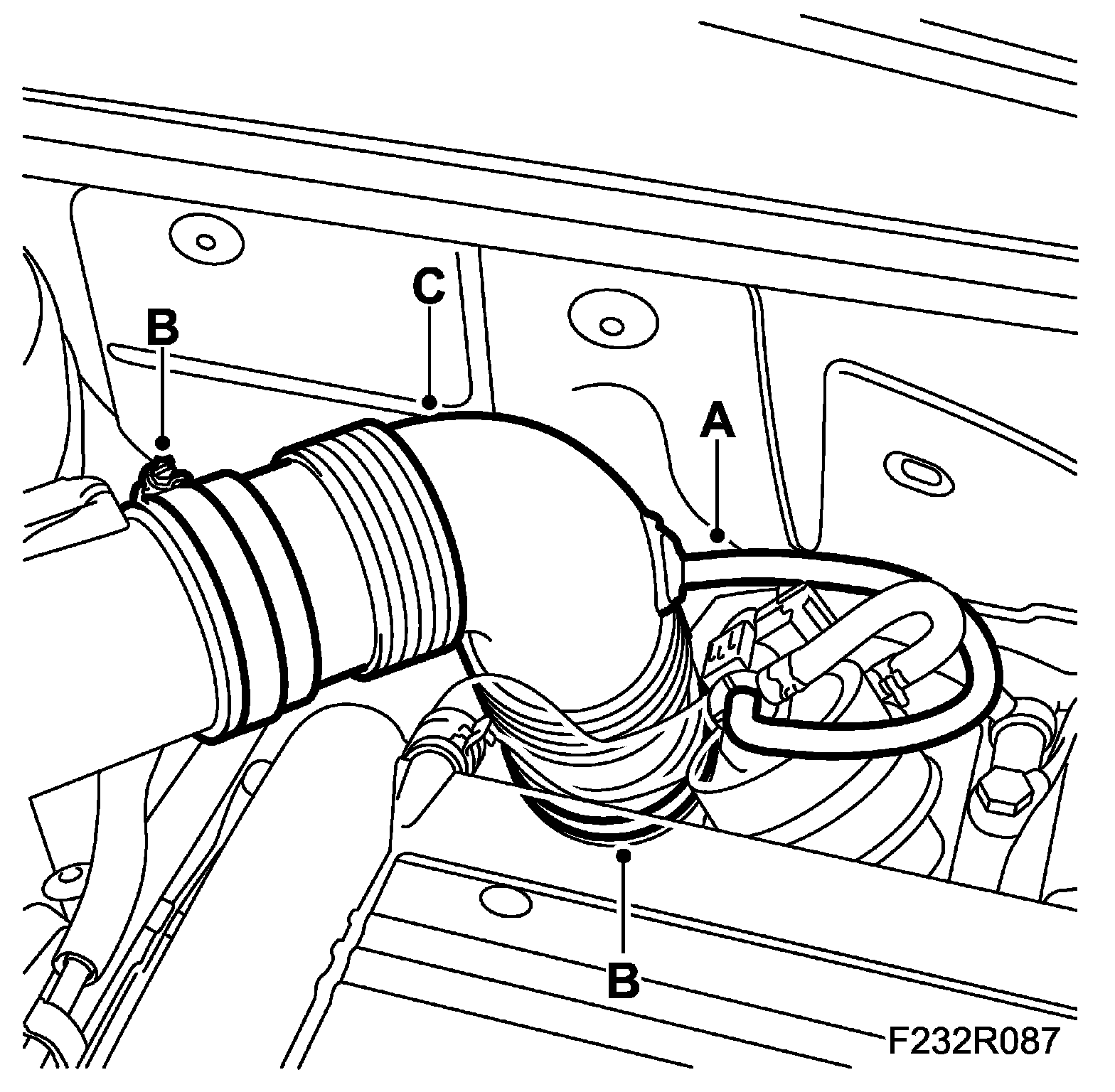

1. Remove the air cleaner connection hose.
^ Detach the hose (A) from the solenoid valve.
^ Undo the hose clips (B).
^ Remove the pipe (C).





To fit
1. Fit the air cleaner connection hose.
^ Fit the pipe (C).
^ Screw in the hose clips (B).
^ Fit the hose (A) to the solenoid valve.
