Pressure Regulating Solenoid, A/T

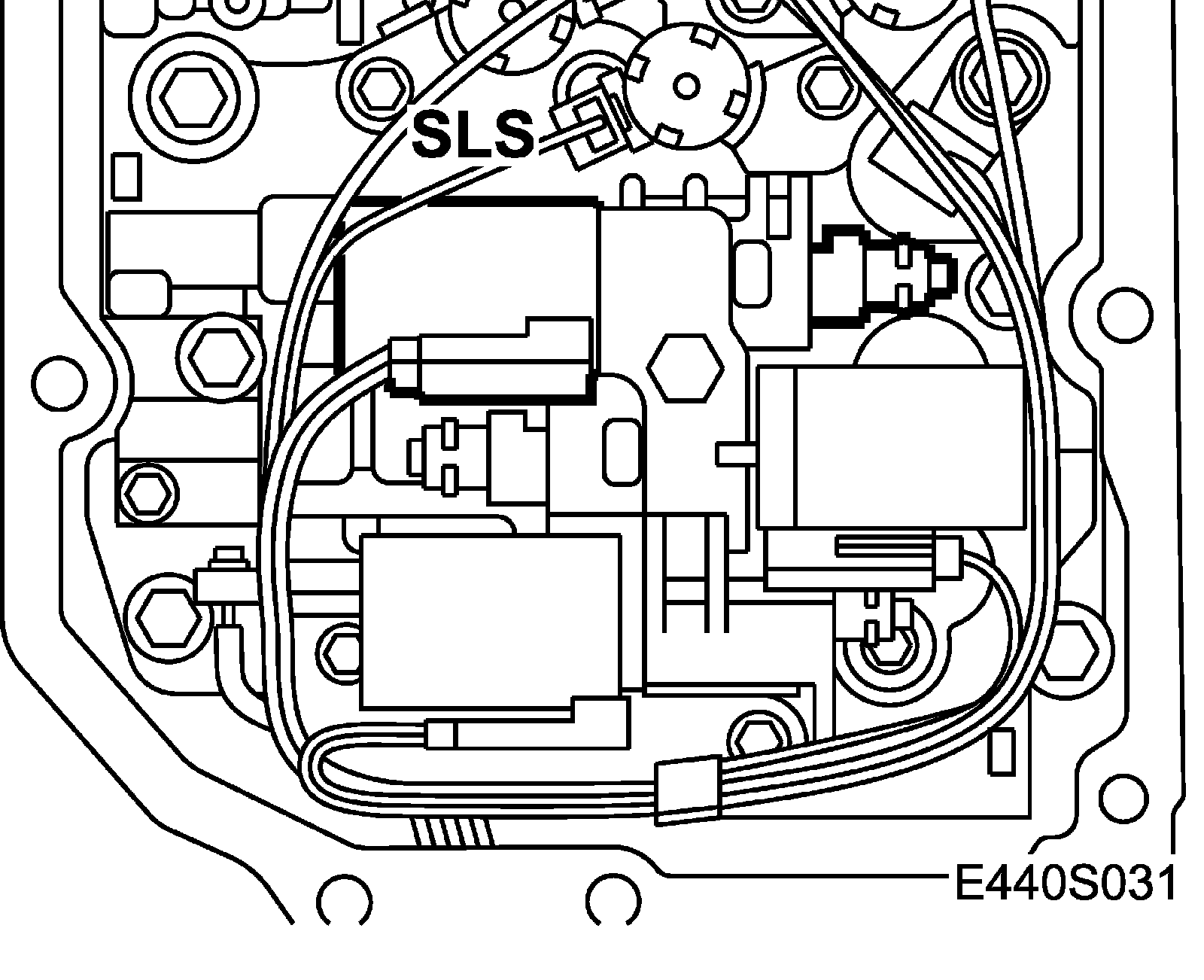

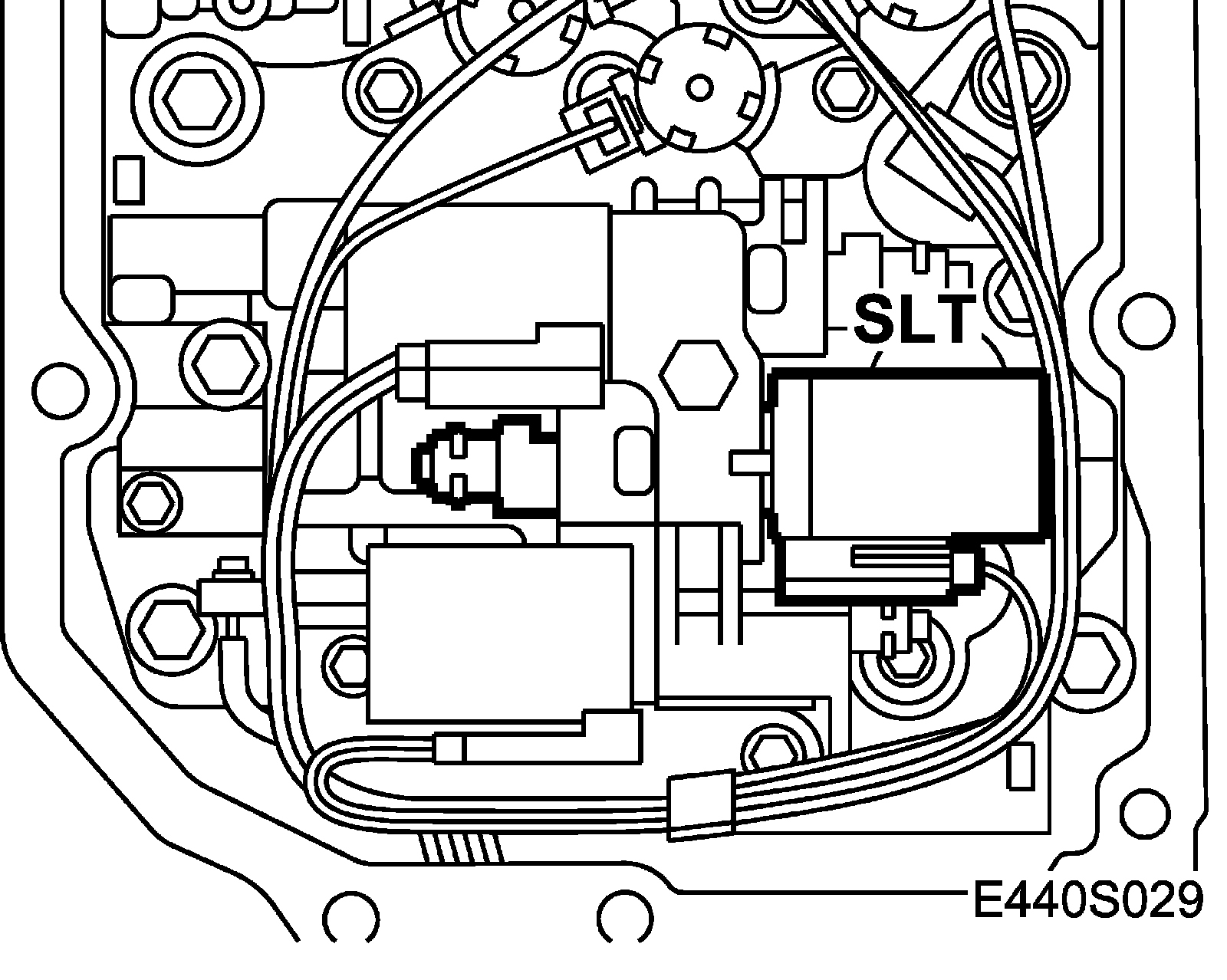

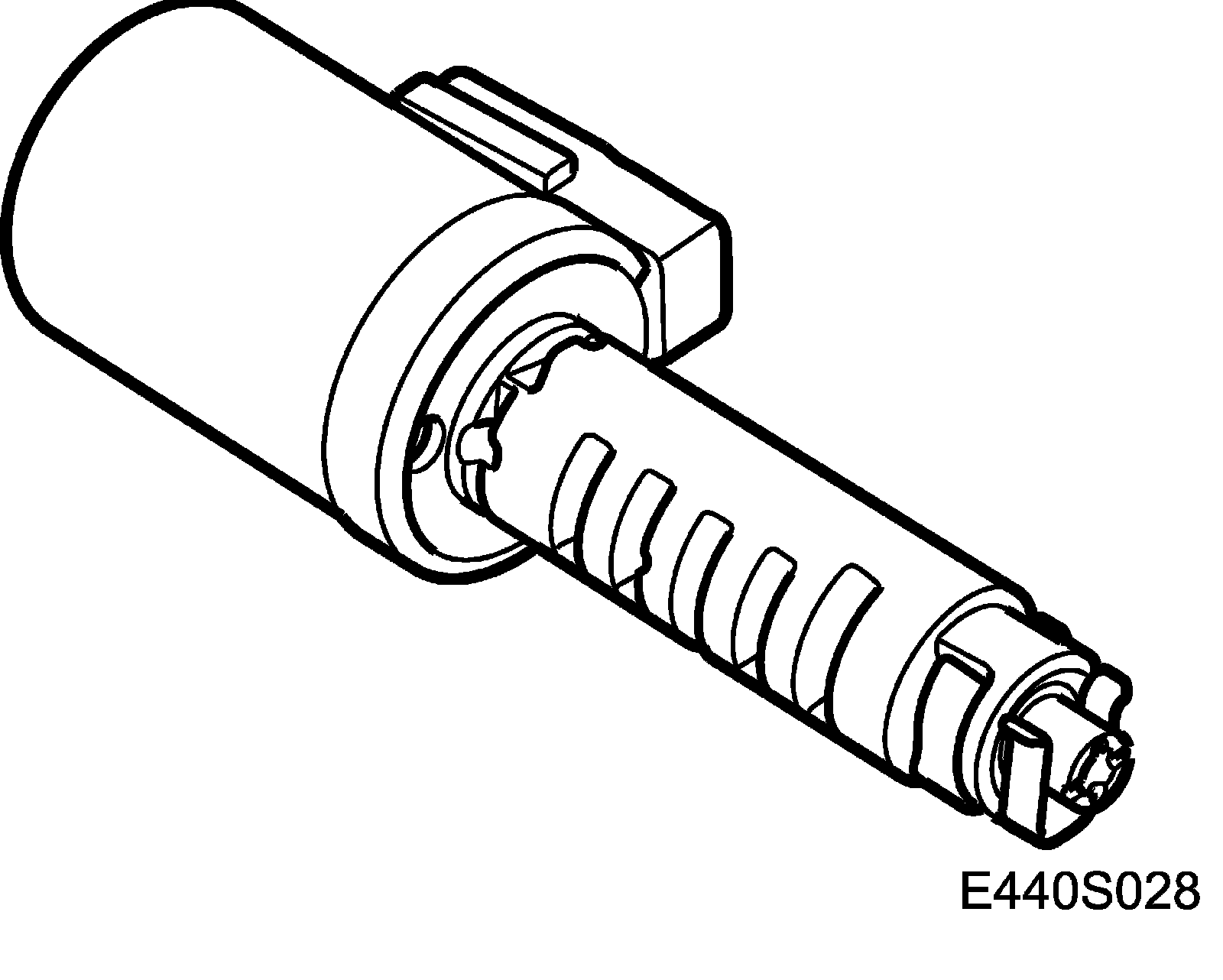

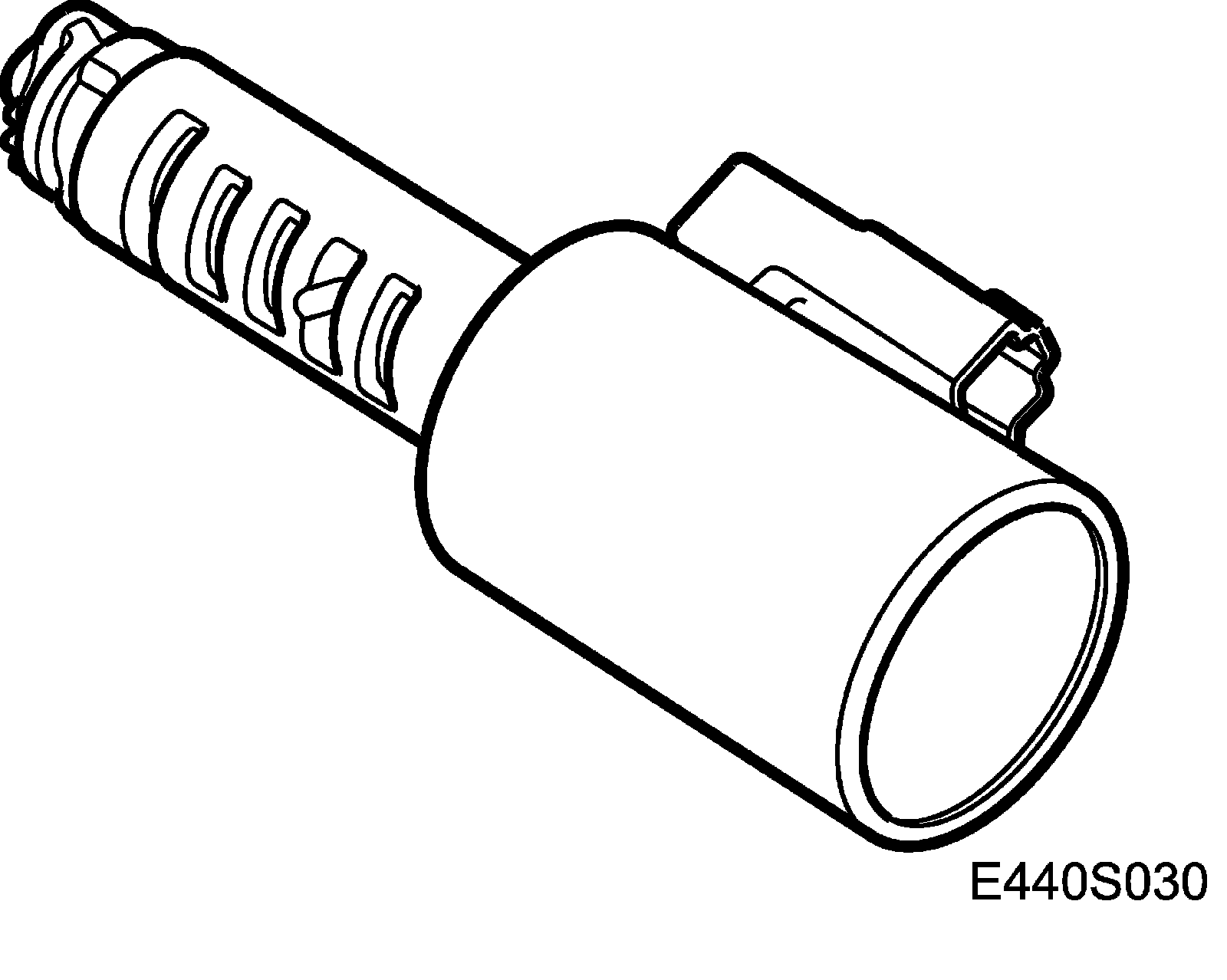

Solenoid valves, pressure regulation (SLT and SLS)SLTSLTSLSSLS Location
In valve housing on transmission casing
Resistance at 20 degrees C Ohm
5,0 - 5,6
Characteristics
Open at zero current
Control voltage PWM 12 V
300 Hz
