FORWARD CLUTCH INSTALLATION

IMPORTANT:
- The forward clutch may be held up by the low/reverse band during installation. The band may have to be maneuvered during installation of the forward clutch through the opening for the forward clutch support's feed pipes.
- Rotate forward clutch assembly counterclockwise during assembly in order to seat assembly into low roller clutch. When assembled correctly, forward clutch assembly should not turn clockwise.

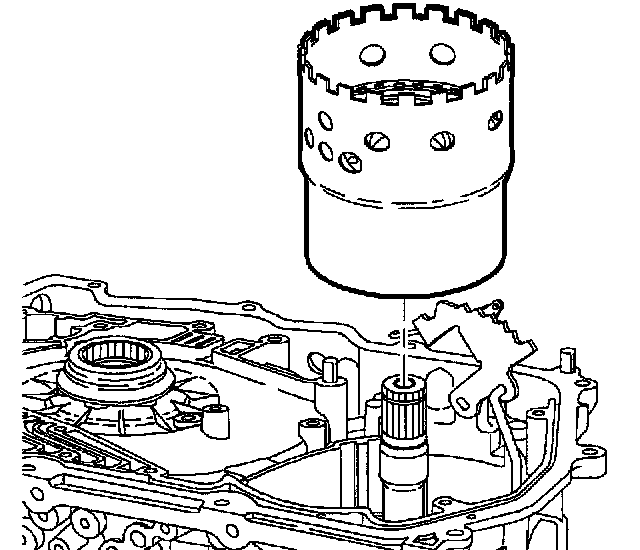

1. Install forward clutch assembly into transaxle case.

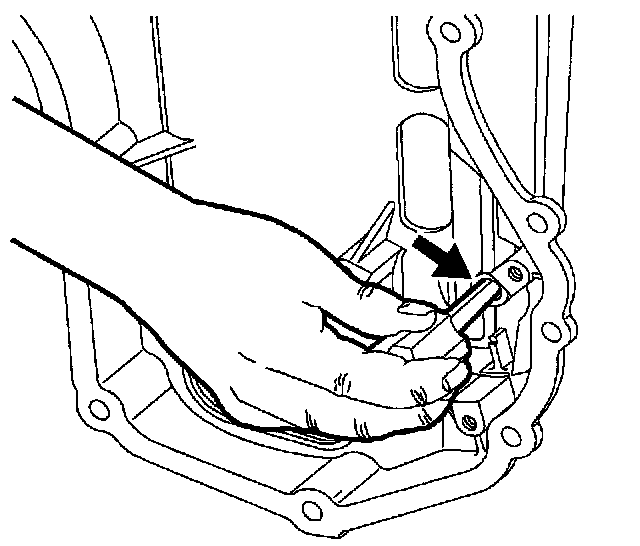

2. Insert a screwdriver through the reverse servo pin hole in order to verify correct installation of low/reverse band. The screwdriver should compress band around forward clutch housing.
