Backup Lamp: Service and Repair

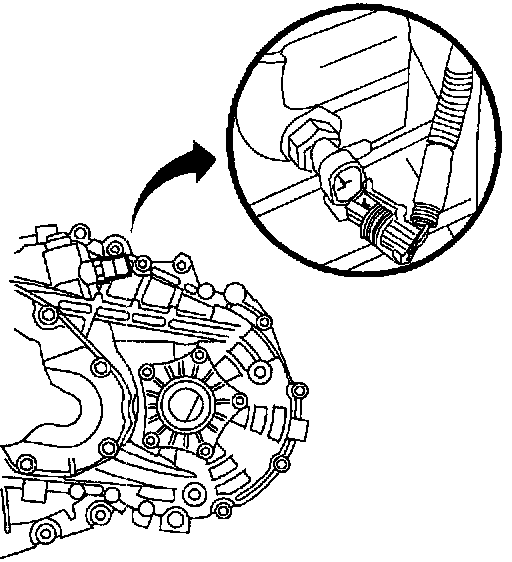

BACK-UP LAMP SWITCH (ON VEHICLE) REMOVAL 1.
Disconnect back-up lamp electrical connector.
2.
Remove back-up lamp switch and discard gasket.
INSTALLATION 1.
Install back-up lamp switch using a new gasket.
Torque:
Back-Up Lamp Switch:
24 Nm (18 ft. lbs.) 2.
Connect back-up lamp switch electrical connector.
3.
Verify proper operation.
