Instrument Panel (IP) - Center Trim Plate Switches

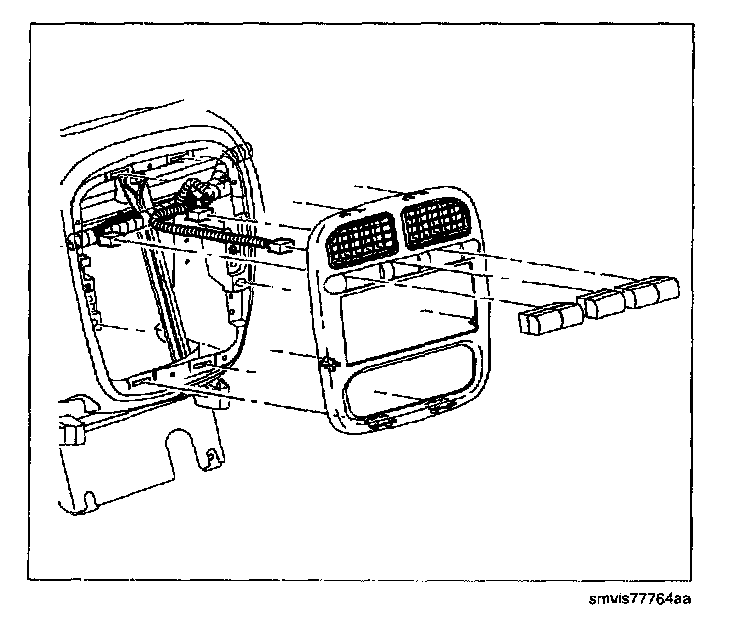

REMOVAL




1. Partially remove center trim plate by pulling at clip locations to disengage clips. Twist trim plate sideways to access back of trim plate.
2. Disconnect center trim plate switch connections and remove center trim plate.
3. Remove center trim plate switch by disengaging attaching clips.

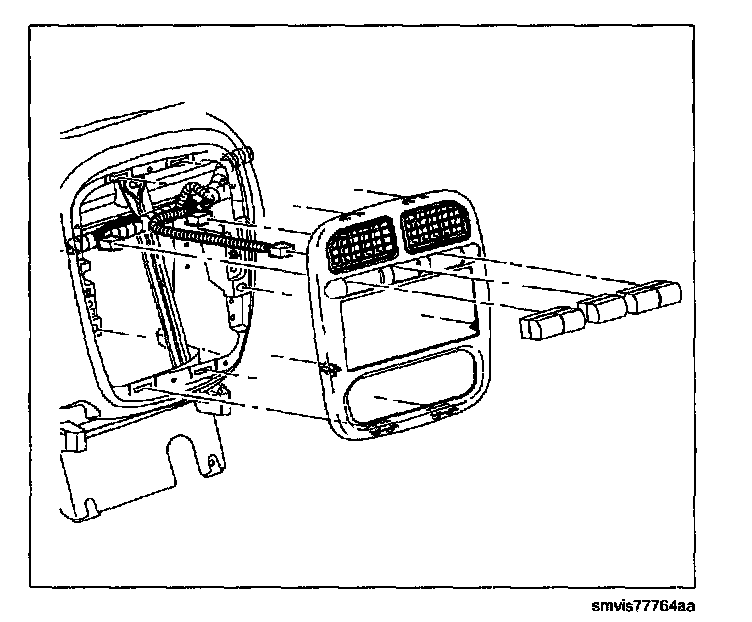

INSTALLATION




1. Install center trim plate switches by snapping into place.
2. Connect wiring harnesses to trim plate switches.
3. Position center trim plate and secure to instrument panel by gently pushing at attaching clip locations.
