Fuel Pump Module
Fuel Pump Module

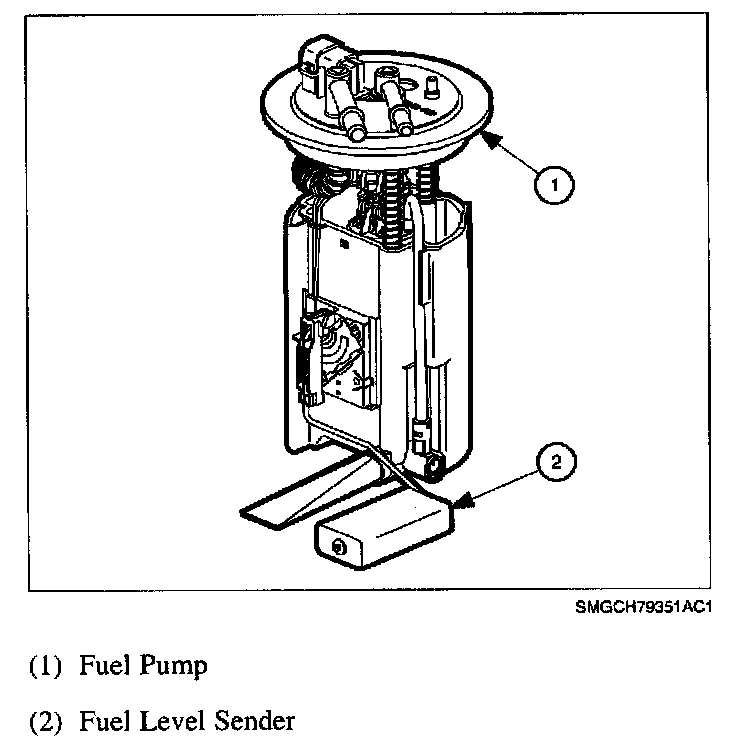

Fuel Pump Module:
The fuel pump module is sealed to the
fuel tank
with a retaining ring and O-ring seal. The module consists of:
(1)
Fuel Pump
(2)
Fuel Level Sender
