21. Reaction Internal Gear, Input Carrier Installation

REACTION INTERNAL GEAR, INPUT CARRIER INSTALLATION

IMPORTANT: The parking pawl must not be in the fully down (PARK) position of the assembly will not be able to rotate.

IMPORTANT: While installing reaction internal gear and input carrier assembly, rotate assembly in order to mesh input carrier pinion gears to input internal gear.

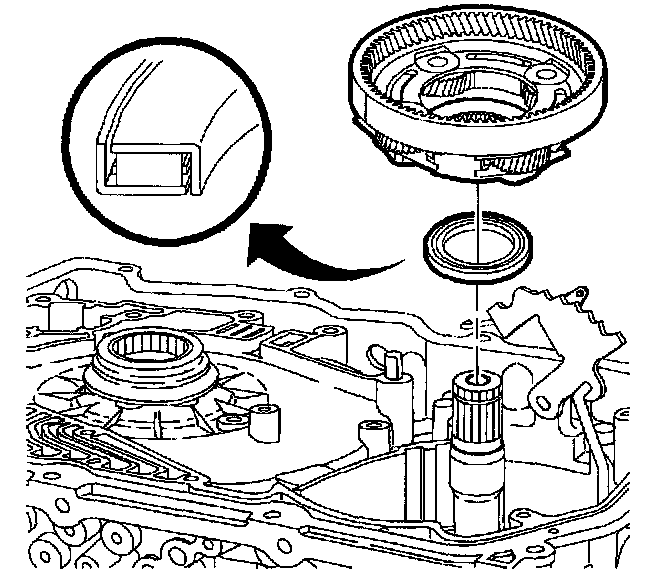

Install reaction internal gear and input carrier assembly into transaxle case.
