E. Install New Steering Wheel and Inflator Module

1. Remove yellow tab or tape from SIR coil assembly.

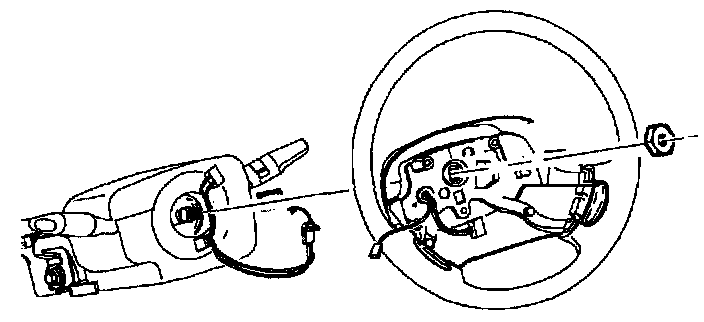

2. Route wiring through steering wheel and install steering wheel onto steering shaft noting orientation notch that locates steering wheel in the correct position.

IMPORTANT: A new steering wheel attachment nut must be used.

3. Install new steering wheel attachment nut.

Torque:
Steering Wheel Attachment Nut: 40 N.m (30 ft-lbs)

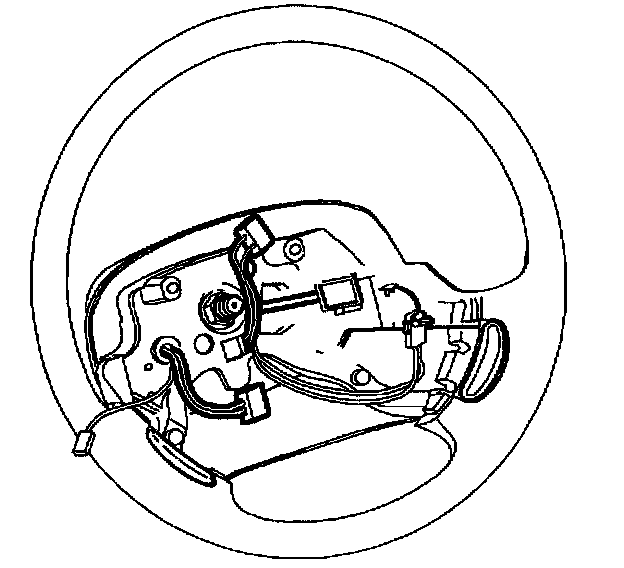

4. Connect cruise control switch connector and attach harness to wheel. Push in connectors until a click is heard and pull back to confirm a positive engagement.




5. Connect inflator module wiring harness and install harness integral connector lock device.
6. Install inflator module into steering wheel. Be sure to seat all attachment points.
7. Enable the SIR system. (Refer to "Enabling the SIR System" procedure.)
