Road Test

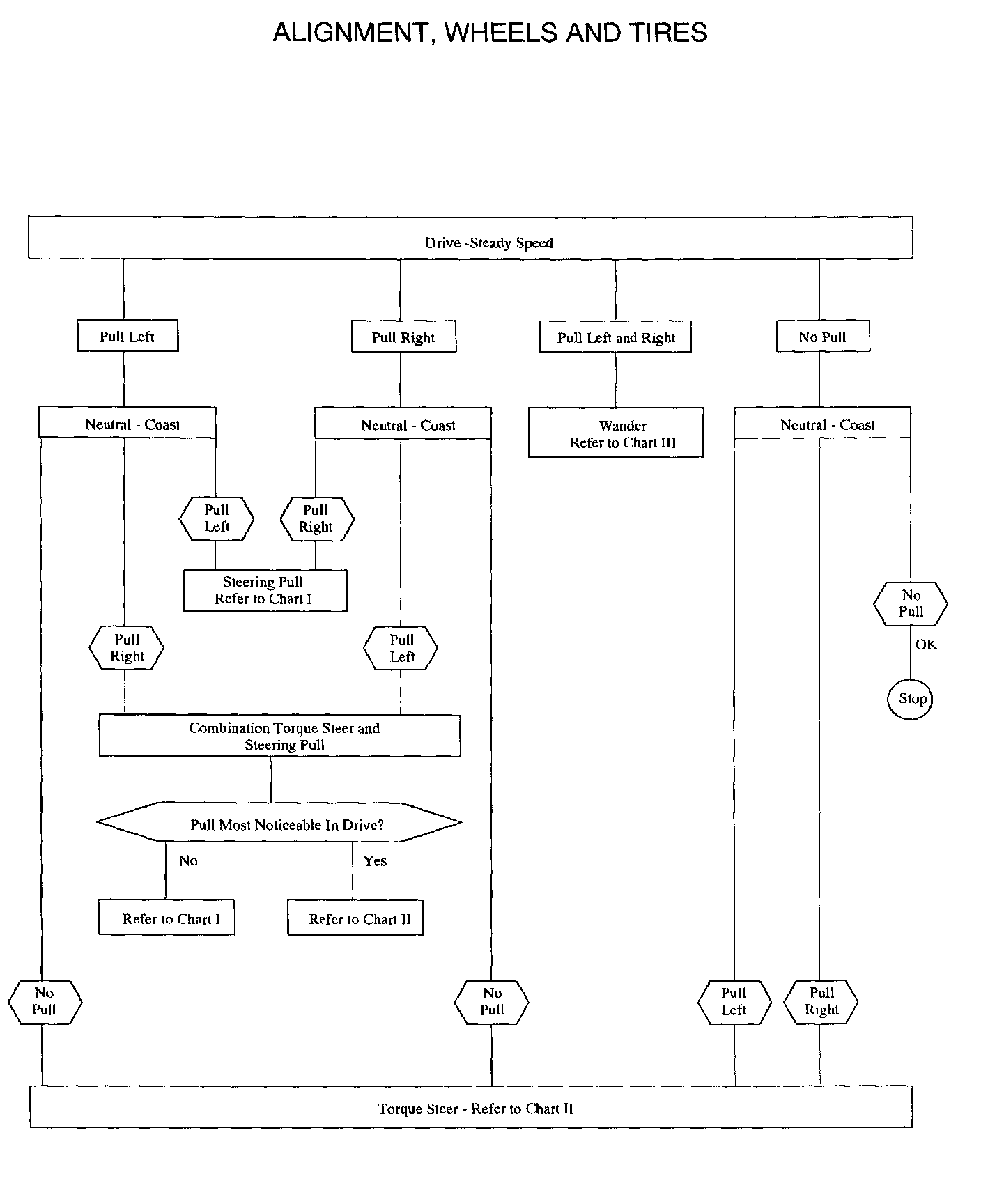

ALIGNMENT, WHEELS & TIRES DIAGNOSIS Road Test Use the flow chart to determine if a vehicle pull is most likely caused by steering pull or torque steer. Perform the road test on a flat level road and with minimum wind conditions.
Drive - Steady Speed:
72 - 88 km/h (45 - 55 mph) in drive maintaining a steady speed
Neutral - Coast:
72 - 88 km/h (45 - 55 mph) in neutral coasting
