Rear Seat

REAR SEAT

REMOVAL




1. Remove load floor forward cover to expose rear seat fasteners.

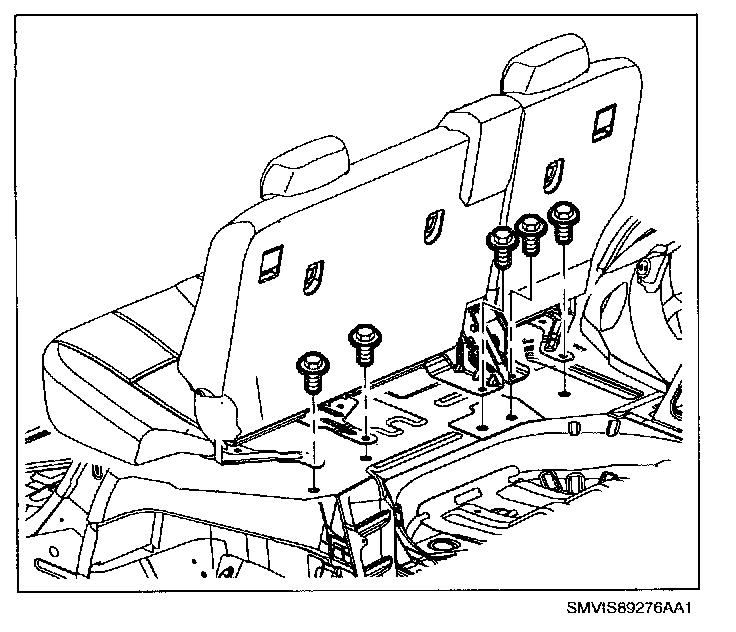

2. Remove rear seat forward fasteners.




3. Remove rear seat rear fasteners and remove rear seat assembly.

INSTALLATION




1. Position rear seat into vehicle.

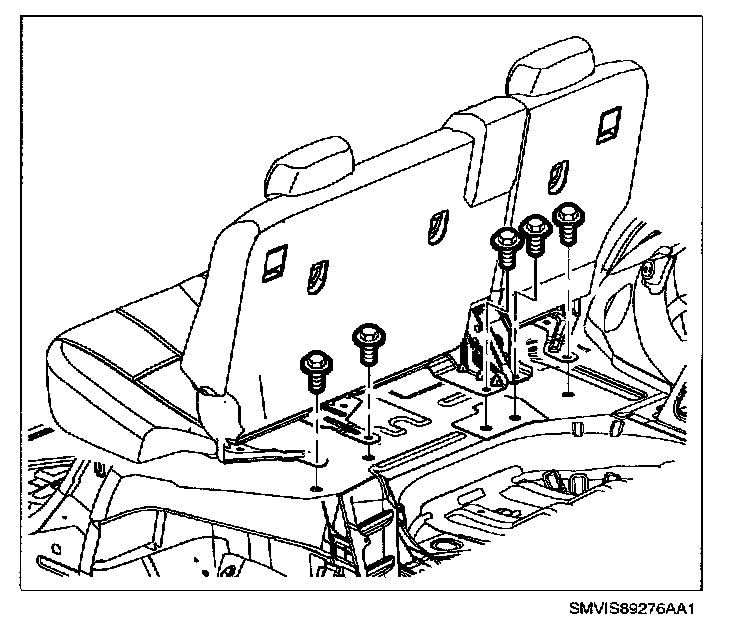

2. Install forward fasteners.

Torque:
Forward Fasteners: 20 N.m (15 ft-lbs)




3. Install rear seat fasteners at back of seat.

Torque:
Rear Seat Fasteners: 50 N.m (37 ft-lbs)




4. Position load floor forward cover to vehicle. Push down at Velcro(R) locations to secure load floor to vehicle.
