Front Seat Head Restraint Guide Replacement




Front Seat Head Restraint Guide Replacement

Removal Procedure

1. Remove the headrest. Refer to Driver or Passenger Seat Head Restraint Replacement (Driver or Passenger Seat Head Restraint Replacement).
2. Disconnect the lower J-hook retainer from the seat back trim cover. Refer to Driver or Passenger Seat Back Cushion Cover and Pad Replacement (Non-Fold Flat) (Driver or Passenger Seat Back Cushion Cover and Pad Replacement (Non-Fold Flat))Driver or Passenger Seat Back Cushion Cover and Pad Replacement (Fold Flat) (Driver or Passenger Seat Back Cushion Cover and Pad Replacement (Fold Flat)).




3. Carefully pull up the trim cover, disengaging the hoop and loop retainers, until the headrest guides are exposed.

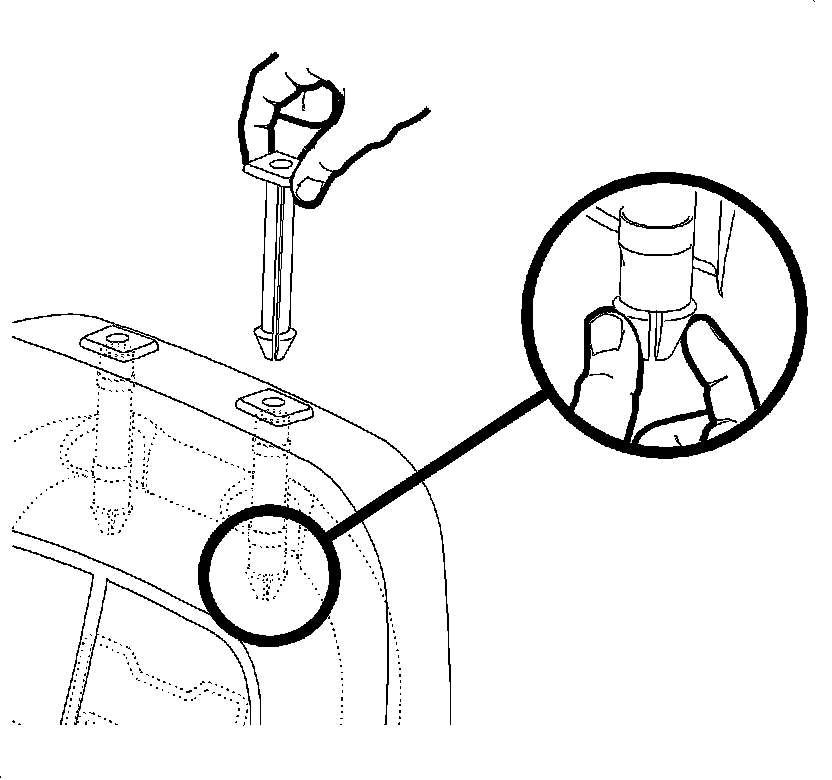

4. Squeeze the locking tabs on the headrest guide and pull the guides up and out of the seat back pad.

Installation Procedure




1. Install the seat back trim cover over the top of the seat back. Refer to Driver or Passenger Seat Back Cushion Cover and Pad Replacement (Non-Fold Flat) (Driver or Passenger Seat Back Cushion Cover and Pad Replacement (Non-Fold Flat))Driver or Passenger Seat Back Cushion Cover and Pad Replacement (Fold Flat) (Driver or Passenger Seat Back Cushion Cover and Pad Replacement (Fold Flat)).
2. Install the headrest guides by pressing the guides into position until the locking tabs engage.
3. Install the headrest. Refer to Driver or Passenger Seat Head Restraint Replacement (Driver or Passenger Seat Head Restraint Replacement).
