Replacement Procedure (Engine to Chassis)



BATTERY NEGATIVE CABLE REPLACEMENT (ENGINE TO CHASSIS)

REMOVAL PROCEDURE
1. Disconnect the negative battery cable.




2. Remove the ground cable from the positive battery cable near the transmission.

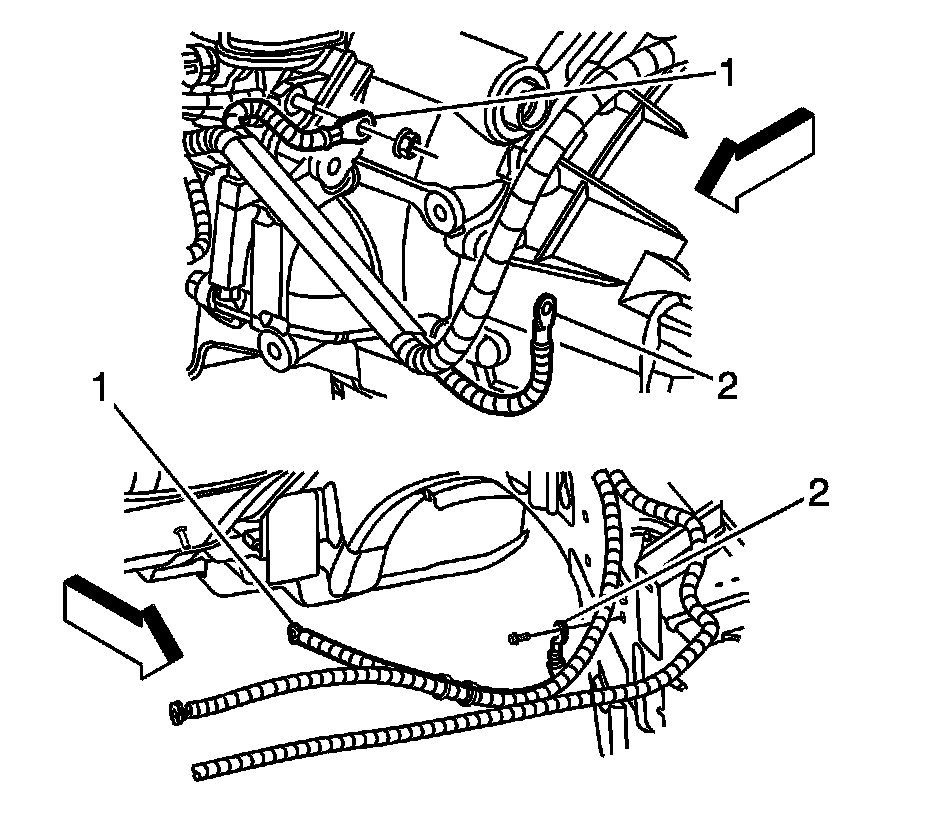

3. Disconnect the ground cable at the rear of the engine (1).
4. Remove the bolt retaining the ground cable at the side rail (2).
5. Remove the ground cable from the vehicle, noting the routing for installation.

INSTALLATION PROCEDURE




1. Position the ground cable as noted during removal.
2. Install the ground cable to side rail bolt (2).

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the bolt to 20 N.m (15 lb ft).

3. Install the ground cable to the rear of the engine (1).

Tighten the ground to engine block nut to 17 N.m (13 lb ft).

4. Tape the ground cable to the wiring harness near the transmission.
5. Connect the negative battery cable.
