Console Shift Lever Bezel Replacement



Console Shift Lever Bezel Replacement

Removal Procedure





1. Set the park brake.
2. Move the shifter to the neutral position.

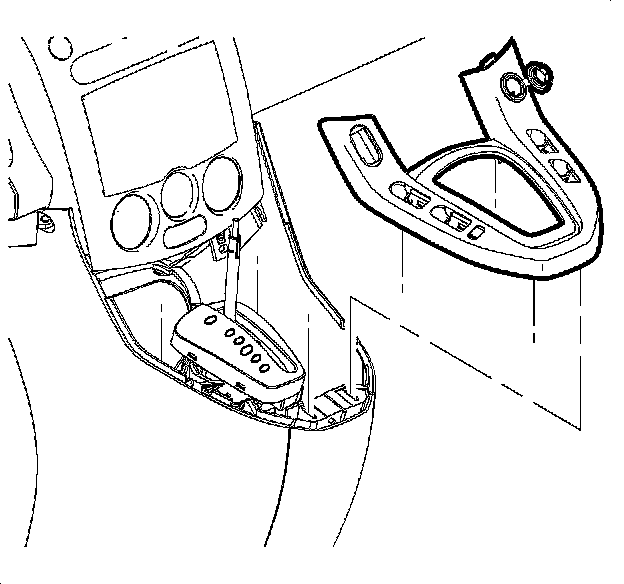

3. Starting at the most forward end, pull up to remove the bezel.

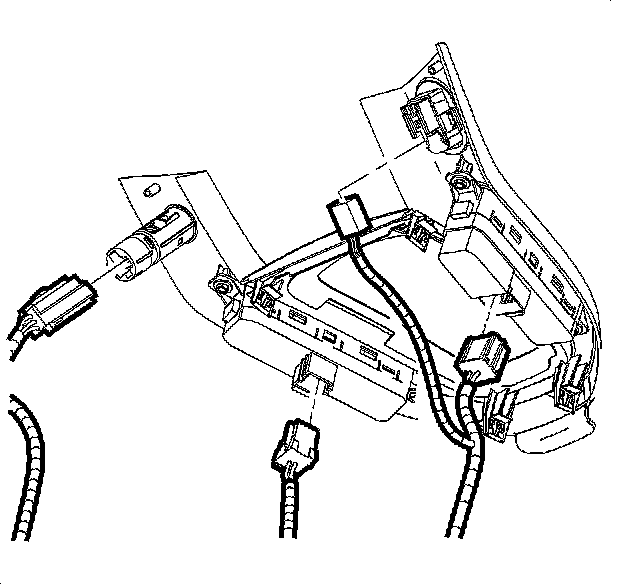

4. Disconnect the electrical connectors.
5. Remove the shift lever bezel.



Installation Procedure





1. Position the shift lever bezel.
2. Connect the electrical connectors.




3. Press on the bezel to engage the bezel trim clips.
4. Put the shifter in the park position.
5. Release the park brake.
