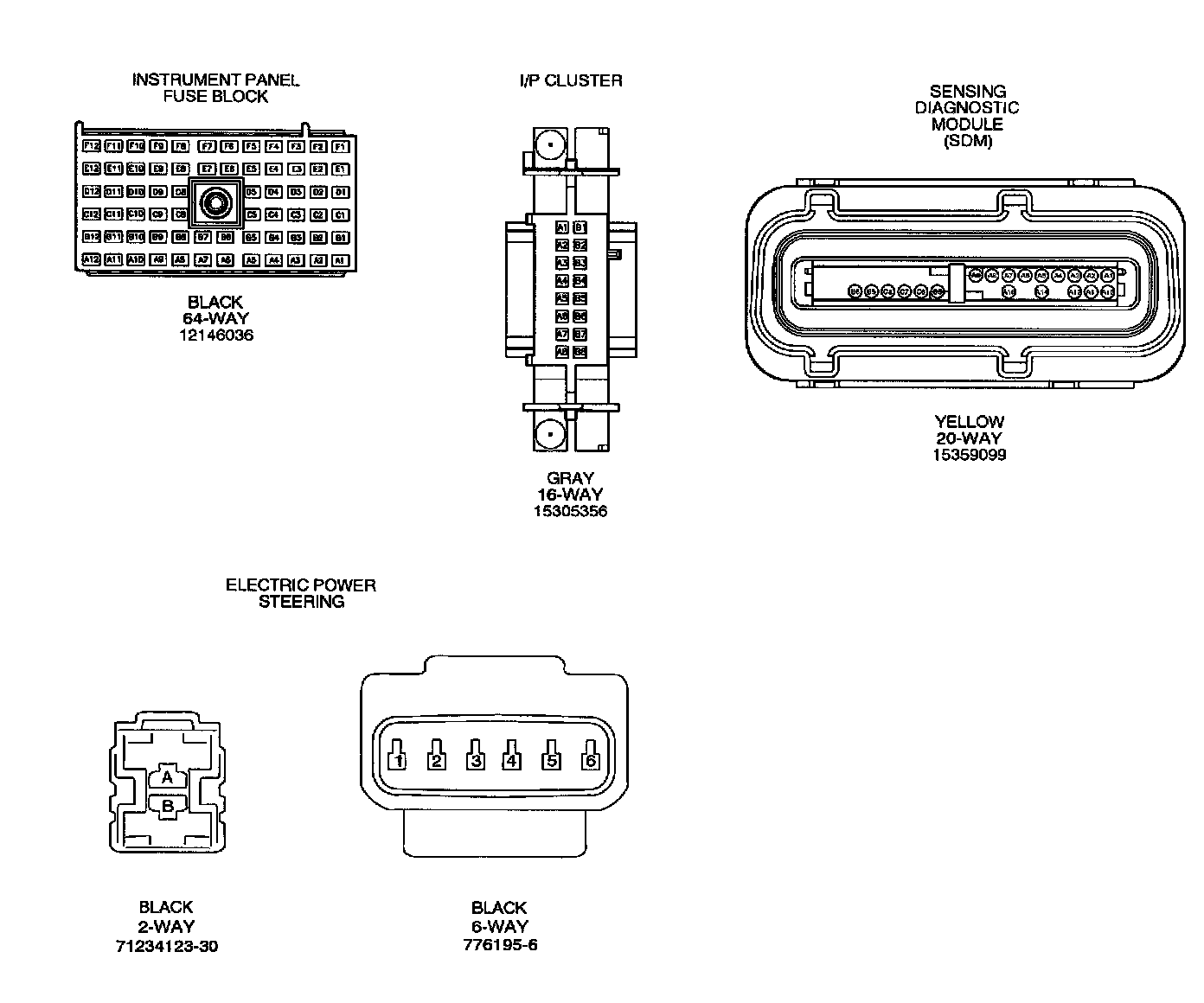

Connector Views
>>
Steering
>>
System Diagram
System Diagram

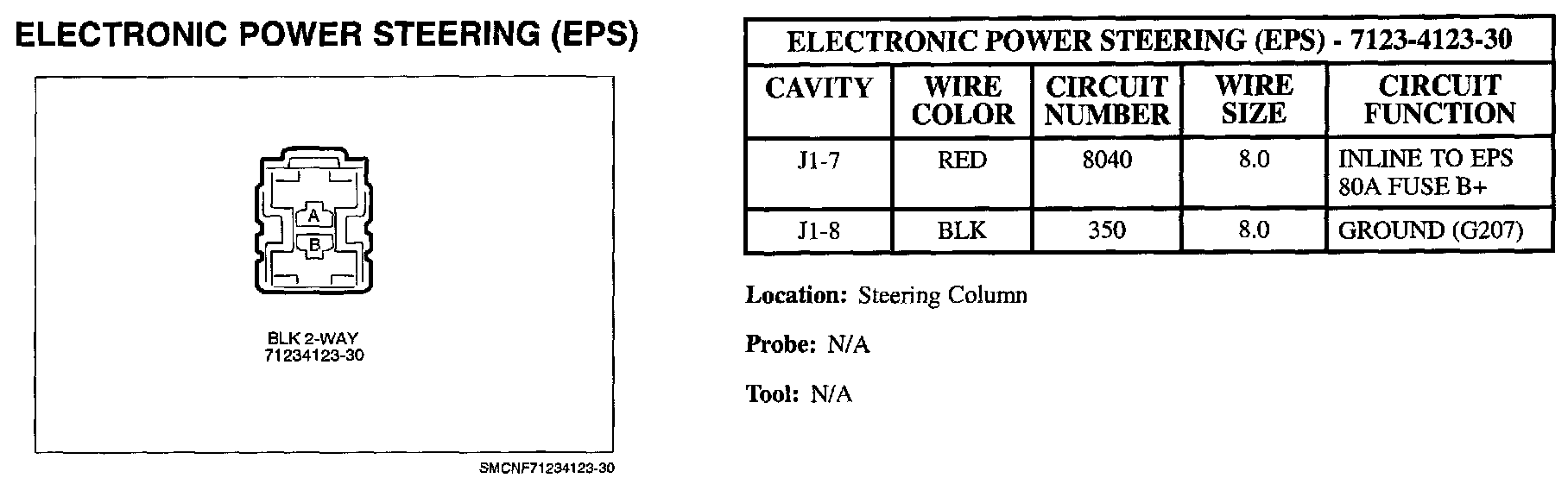

Electronic Power Steering (EPS):

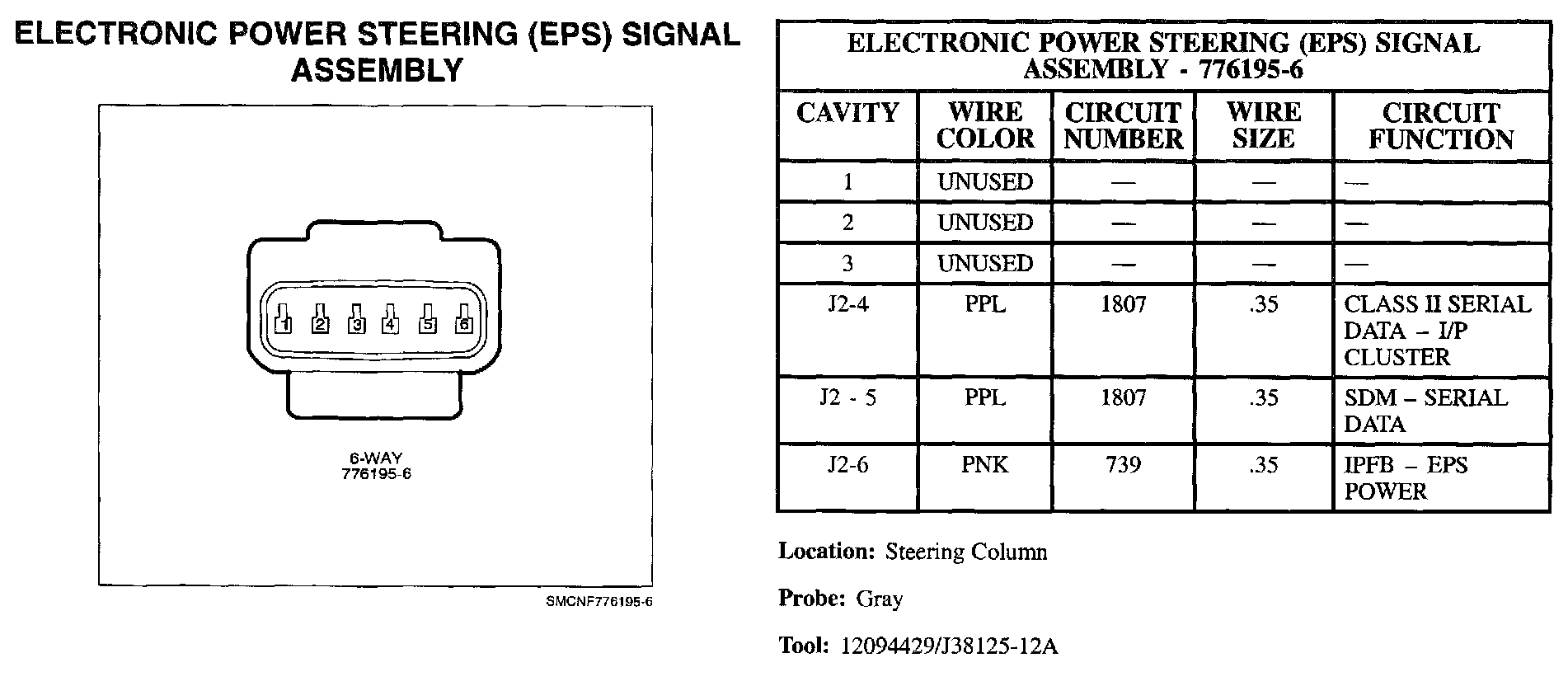

Electronic Power Steering (EPS) Signal Assembly:
