Auxiliary Duct Assembly
REMOVAL 1.

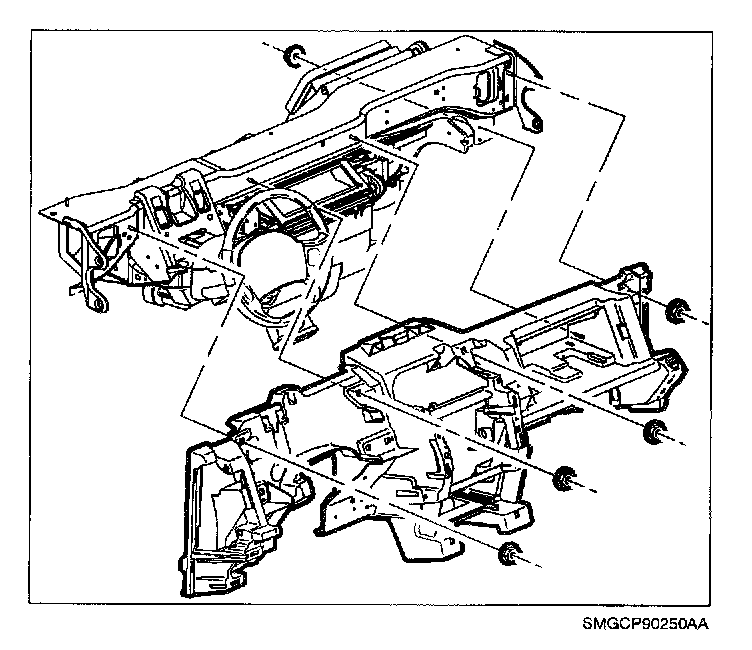

Remove I/P retainer assembly.
2.

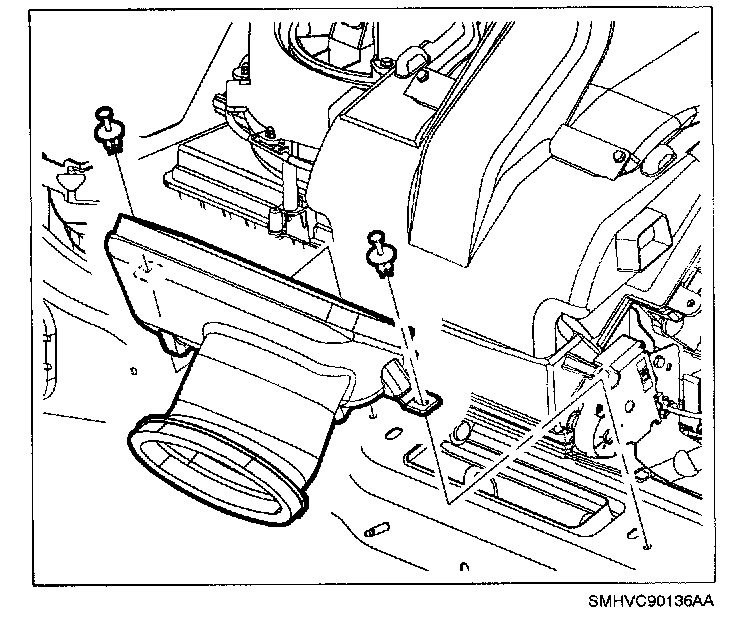

Remove auxiliary duct to cross car beam push pins and remove duct.
INSTALLATION 1.
Inspect seals and replace if damaged using Kent Industries adhesive backed foam tape P/N 46485 (or equivalent).
2.

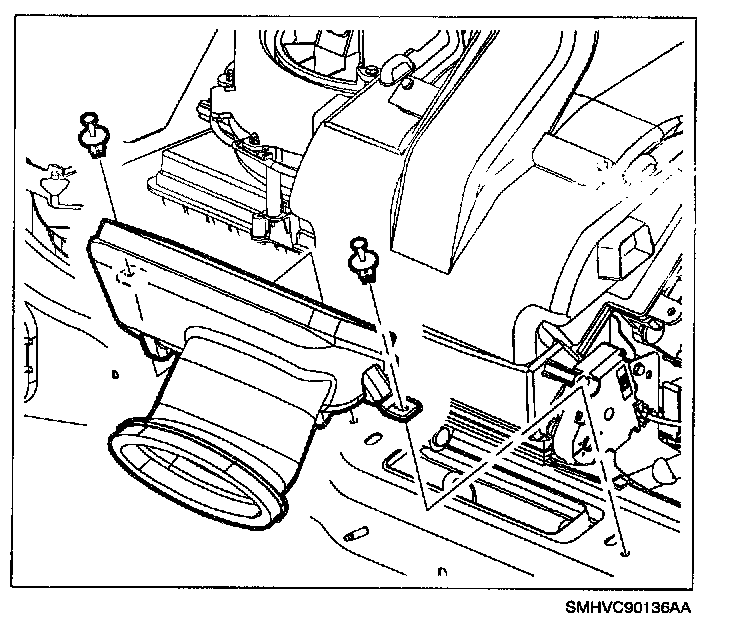

Install auxiliary duct to cross car beam push pins.
3.

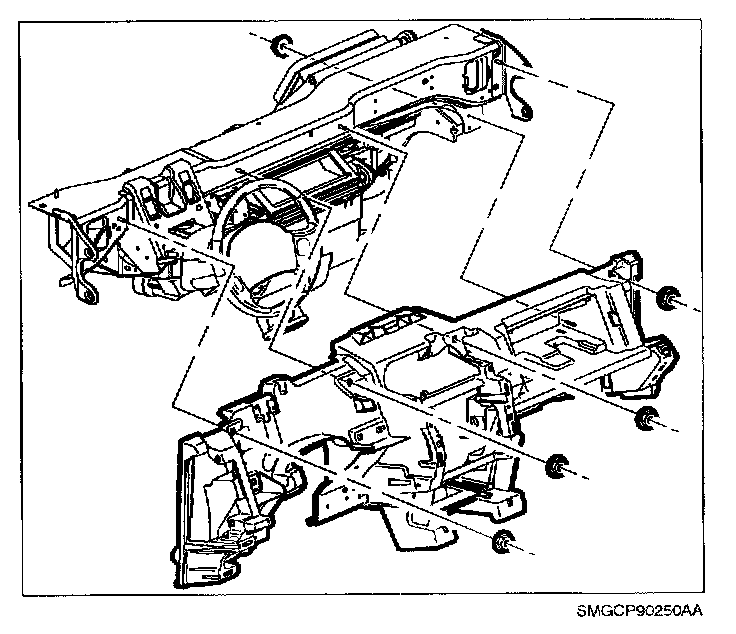

Install I/P retainer assembly.
