Pressure Sensor

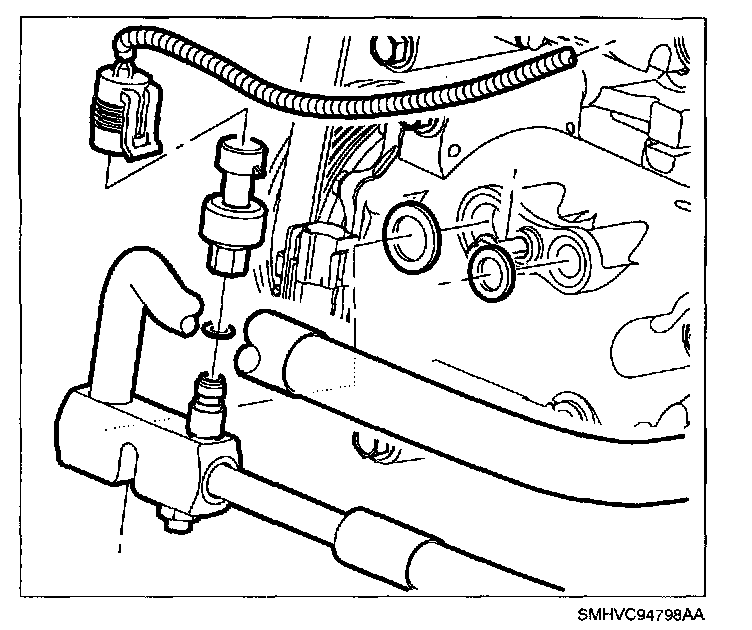

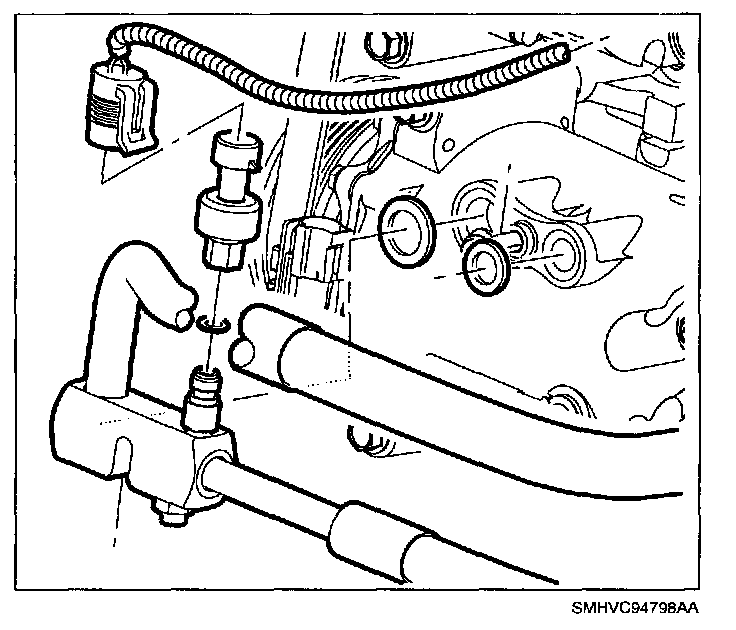

A/C PRESSURE SENSOR

REMOVAL




1. Disconnect A/C pressure sensor electrical connector.
2. With open end wrench remove A/C pressure sensor.

INSTALLATION

NOTE:
^ Use R-12 refrigerant oil (mineral) to lubricate O-rings. Use of R-134a (PAG) oil will cause premature corrosion of fitting joints.
^ Use only clean lint free cloths with non-petroleum based solvents to clean refrigerant system sealing surfaces. Allow solvent to dry with air. Do not allow solvent to enter refrigerant system.




1. Lubricate pressure port O-ring with mineral oil.
2. Hand start A/C pressure sensor onto pressure port taking care not to pinch O-ring and tighten.

Torque:
Pressure Transducer: 10 N.m (89 in. lbs.)

3. Connect engine harness connector to A/C pressure sensor.
