Backup Lamp: Service and Repair

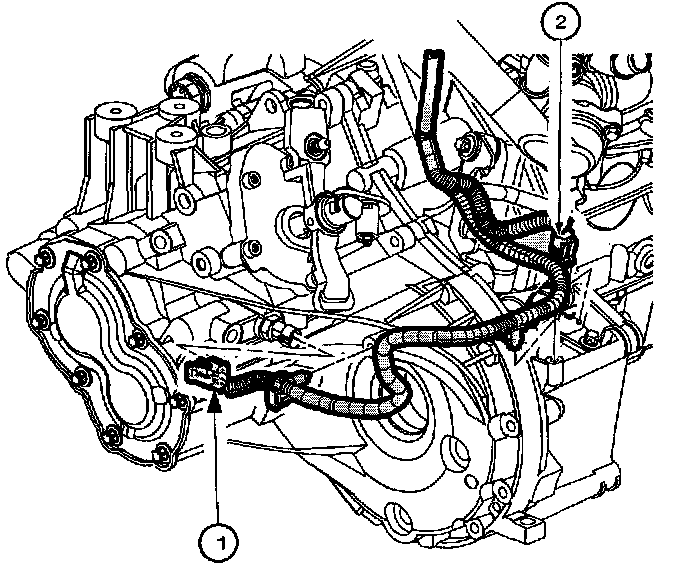

BACK-UP LAMP SWITCH (ON-VEHICLE) REMOVAL 1.
Position vehicle on hoist and raise vehicle.
2.
Disconnect back-up lamp switch electrical connector (1).
3.
Remove back-up lamp switch from transaxle.

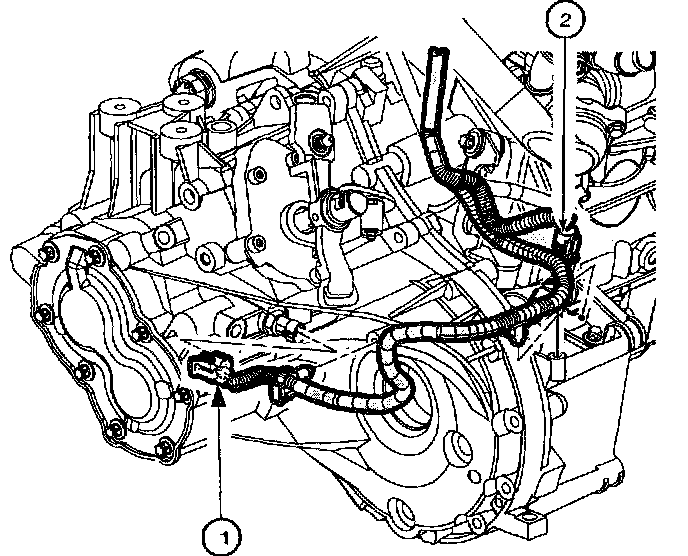

INSTALLATION 1.
Install back-up lamp switch.
Torque: Back-Up Lamp Switch:
18 Nm (13 ft. lbs.) 2.
Connect back-up lamp switch electrical connector (1).
3.
Lower vehicle.
