Specifications
>>
Pressure, Vacuum and Temperature Specifications
>>
Continuously Variable Transmission/Transaxle, CVT
Continuously Variable Transmission/Transaxle, CVT
VT25-E (M16/M75)

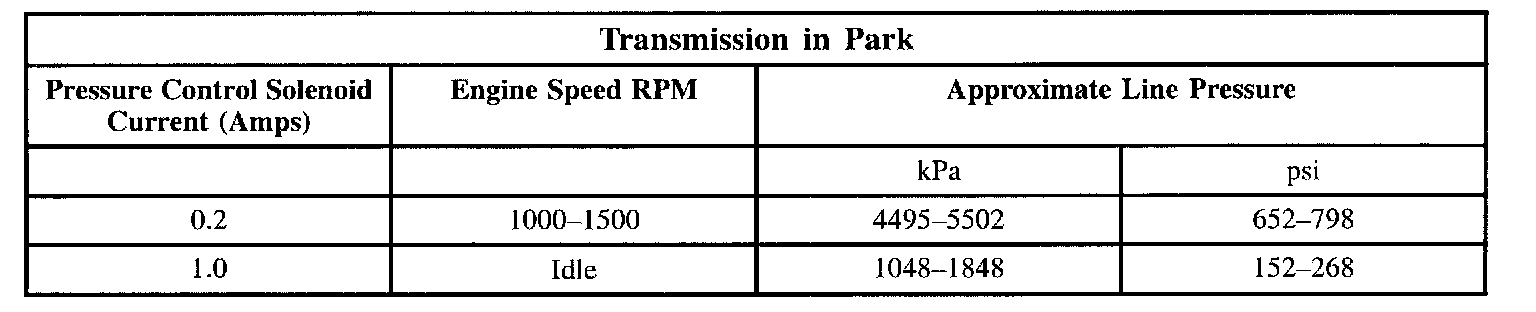

LINE PRESSURE CHART
