Variable Drive Pulley Opening Cover

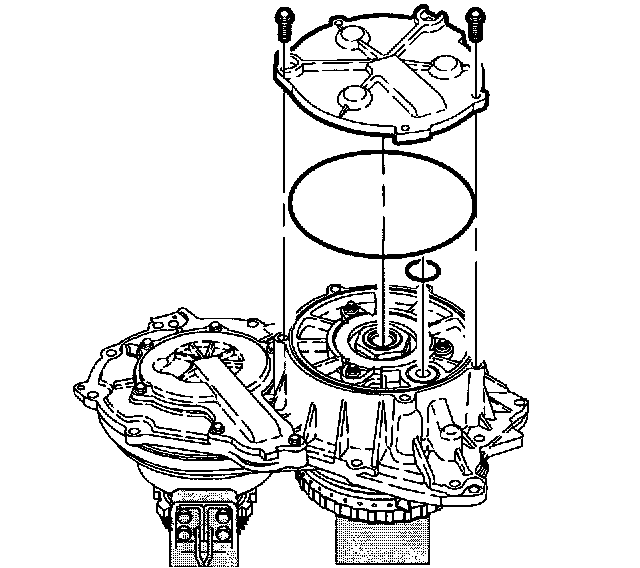

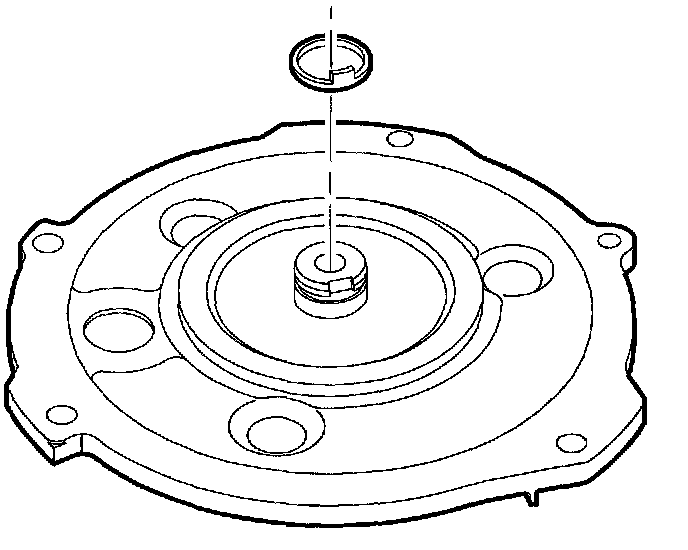

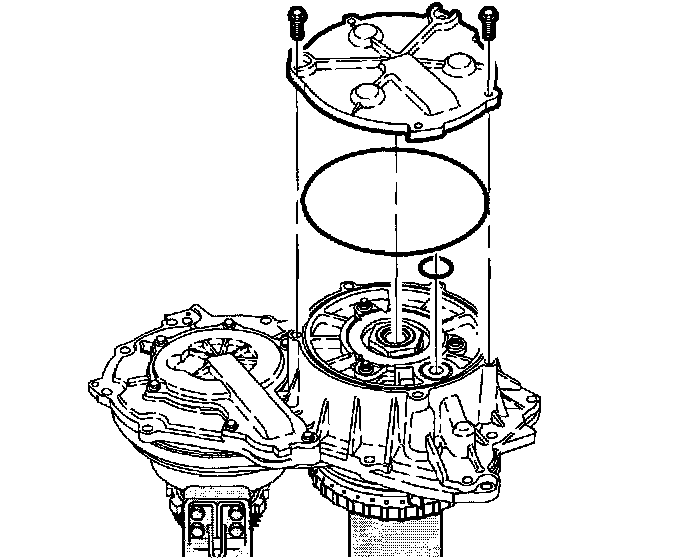

VARIABLE DRIVE PULLEY OPENING COVER

REMOVAL





1. Remove bolts from drive pulley cover.
2. Remove drive pulley cover.
3. Remove variable drive pulley opening cover seal (outer) and discard.
4. Remove variable drive pulley opening cover seal and discard.

INSTALLATION





1. Inspect case cover seal on drive pulley cover for damage. Replace if necessary.





2. Install a new variable drive pulley opening cover seal.
3. Install a new variable drive pulley opening cover seal (outer).
4. Install drive pulley cover and bolts to case cover assembly.
Torque: Drive Pulley Cover Bolts: 11 N.m (8 ft. lbs.)
