System Check - AM/FM Stereo With In-Dash CD Player

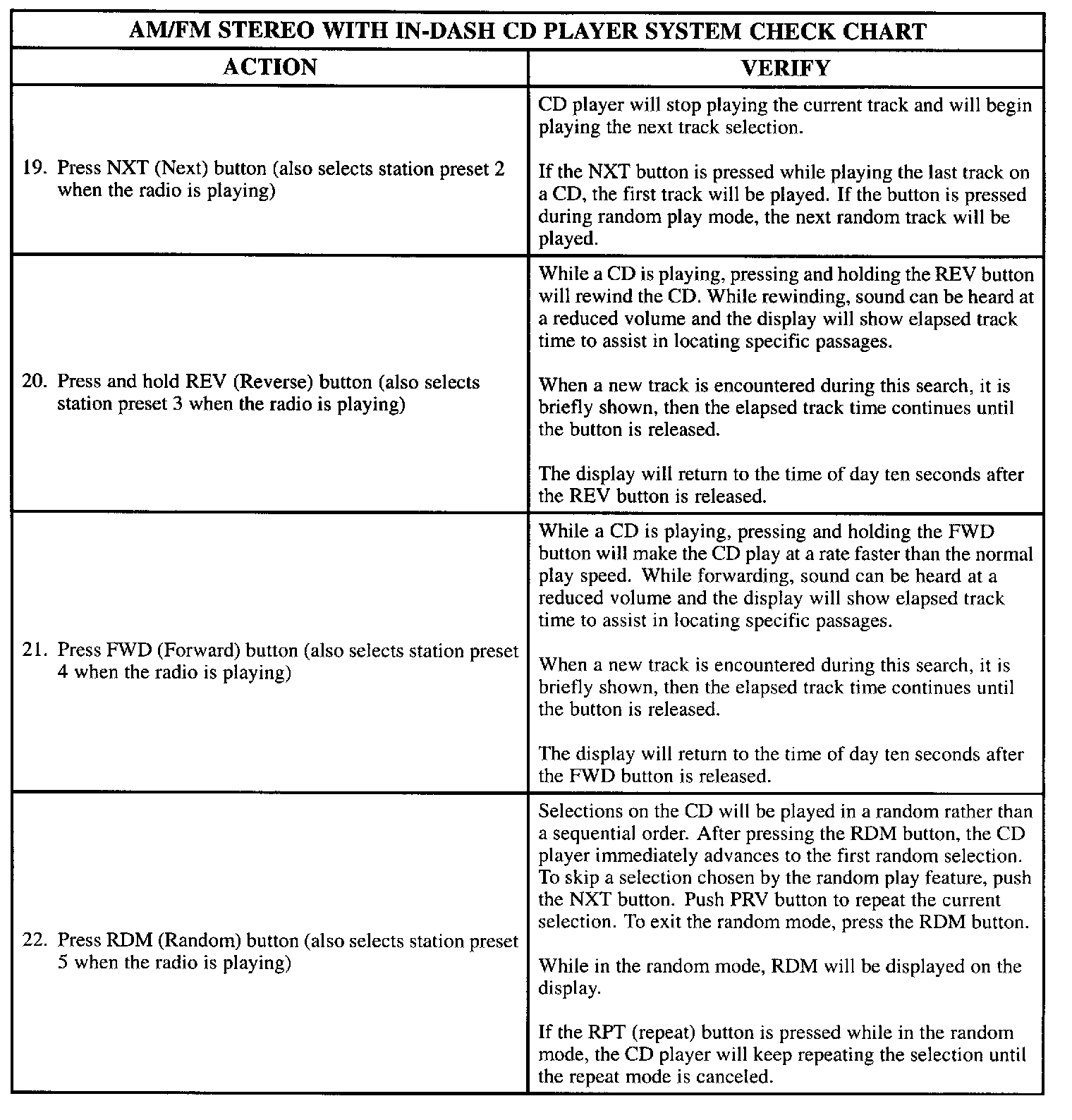

AM/FM Stereo With In-Dash CD Player - System Check Chart Part 1:




AM/FM Stereo With In-Dash CD Player System Check Chart Part 2:




AM/FM Stereo With In-Dash CD Player System Check Chart Part 3:




AM/FM Stereo With In-Dash CD Player System Check Chart Part 4:




AM/FM Stereo With In-Dash CD Player System Check Chart Part 5:
