Side

Transmission Mount Replacement - Side

Removal Procedure

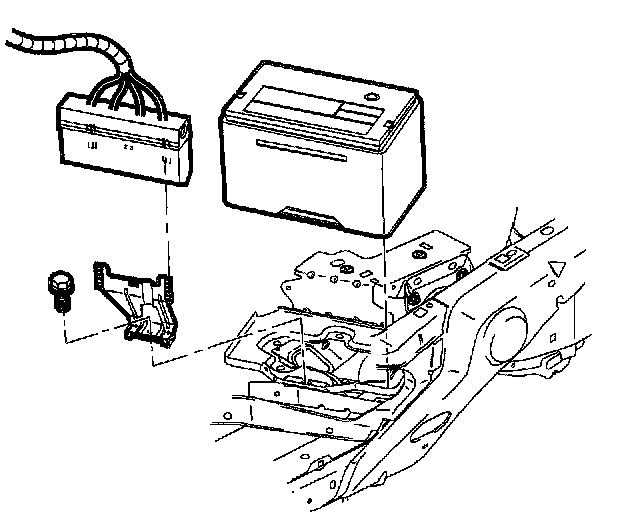

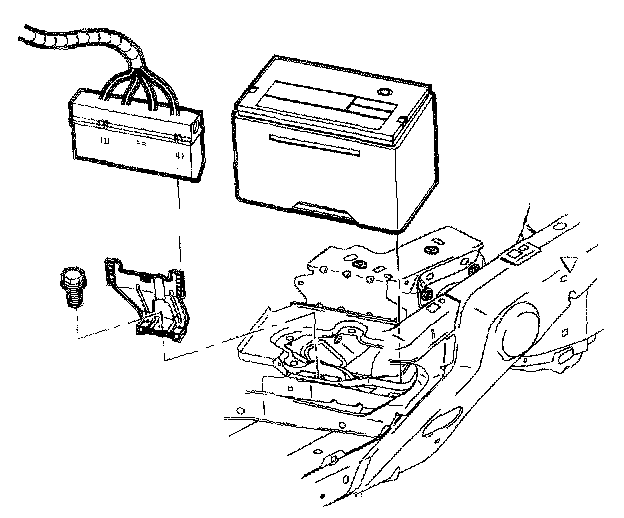

1. Remove the battery.





2. Remove the underhood junction block.

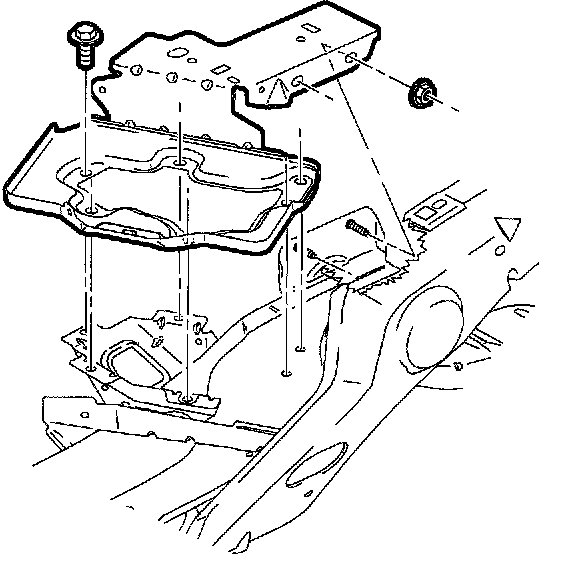

3. Remove the battery tray.
4. Support the powertrain.

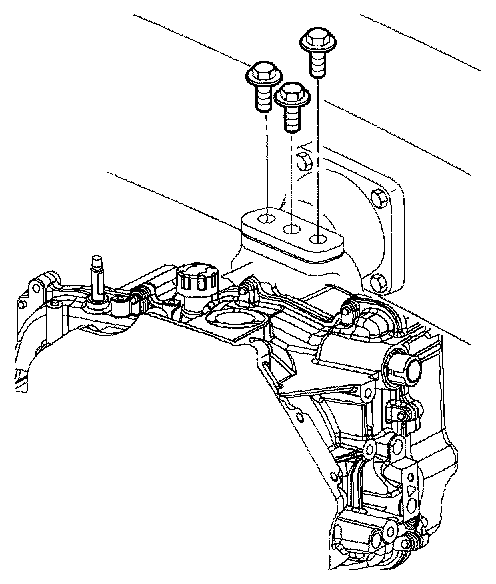

5. Remove the left transmission mount to bracket bolts.

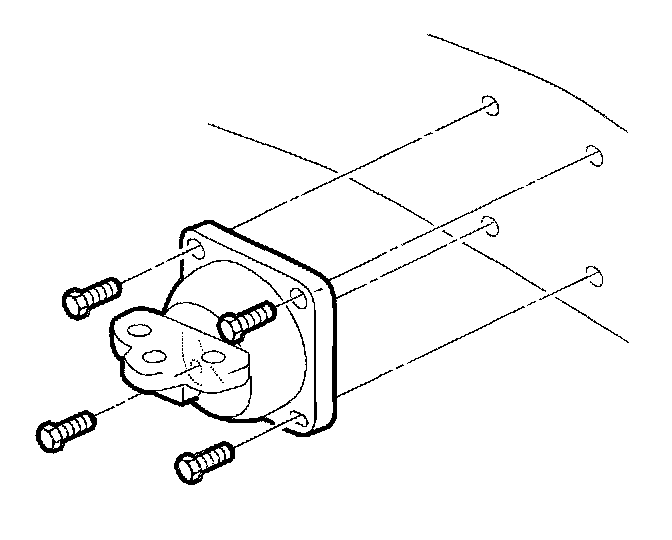

6. Remove the left transmission mount to body bolts.
7. Remove the transmission mount from the vehicle.

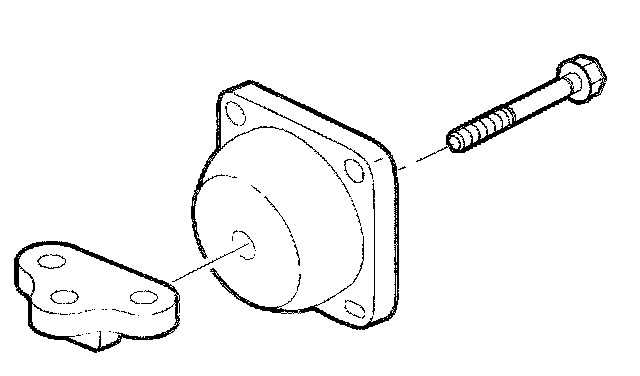

8. Remove the transmission mount bolt to disassemble the mount.

Installation Procedure






Notice: Refer to fastener Notice in Cautions and Notices.

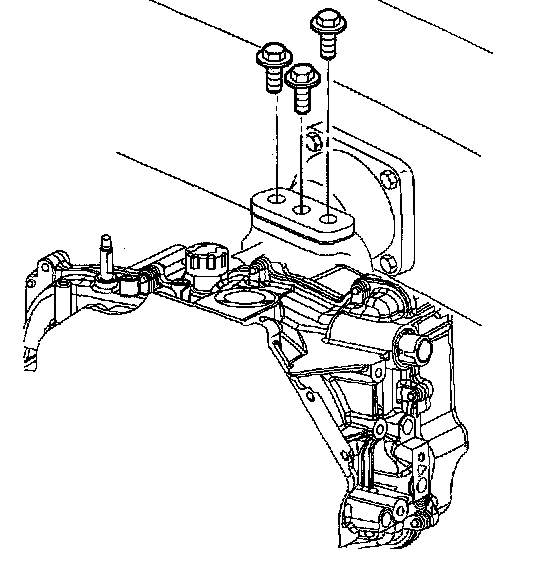

1. Position the mount to the bracket and install the bolt.
Tighten the mount bolt to 60 Nm (44 ft. lbs.).

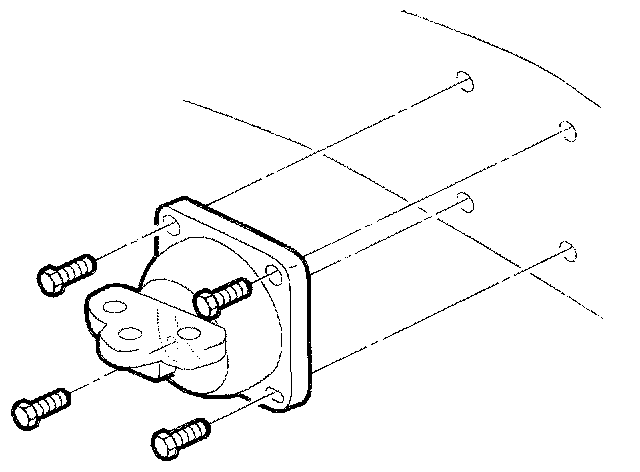

2. Install the left transmission mount to the vehicle.
Tighten the left transmission mount to body bolts to 20 Nm (15 ft. lbs.).





3. Install the left transmission mount to body bolts.
Tighten the bolts to 55 Nm (41 ft. lbs.).
4. Remove the engine support fixture.

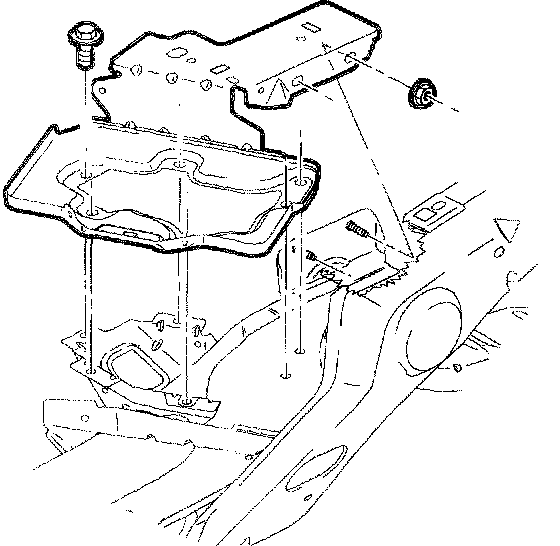

5. Install the battery tray.
Tighten the battery tray bolts to 15 Nm (11 ft. lbs.).
6. Install the underhood junction block.





7. Install the battery.
