51. Park/Neutral Position Switch Installation

Park/Neutral Position Switch Installation






Notice: Refer to Fastener Notice in Cautions and Notices.

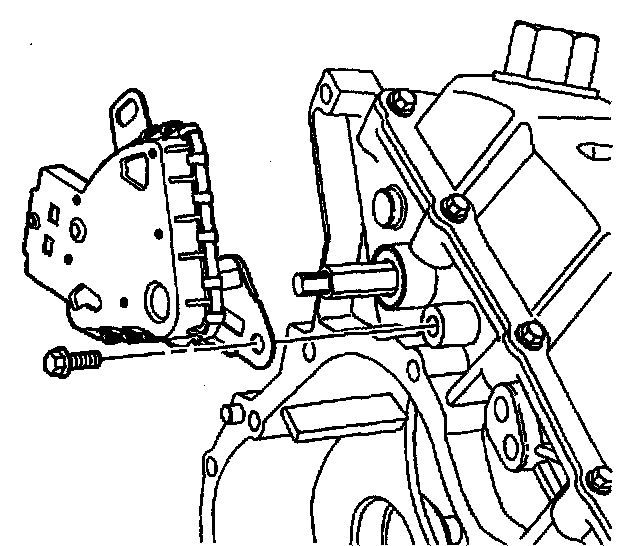

Install the park/neutral position switch assembly and the 2 bolts on the transmission case assembly.
- Tighten the bolts to 11 Nm (8 ft. lbs.).
