59. Camshaft Cover Installation

Camshaft Cover Installation

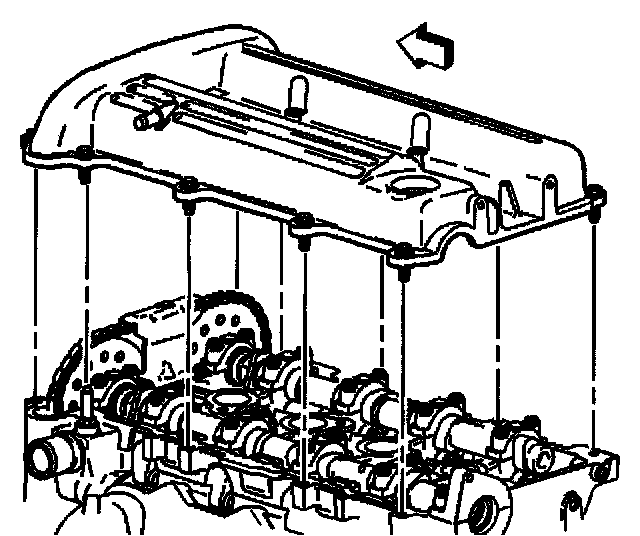

1. Assemble the camshaft cover and gasket. Ensure that the gasket is located in the retaining groove in the camshaft cover.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the cover on the cylinder head and hand start the bolts.
^ Tighten the camshaft cover bolts to 10 Nm (89 inch lbs.).

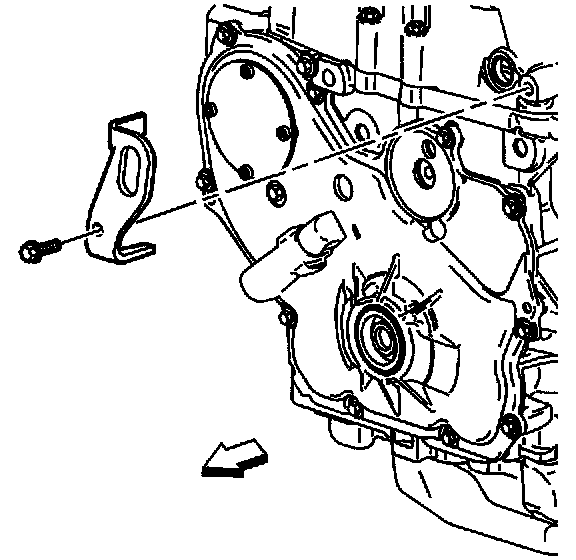

3. Install the front lift bracket.
^ Tighten the front lift bracket bolt to 25 Nm (18 ft. lbs.).

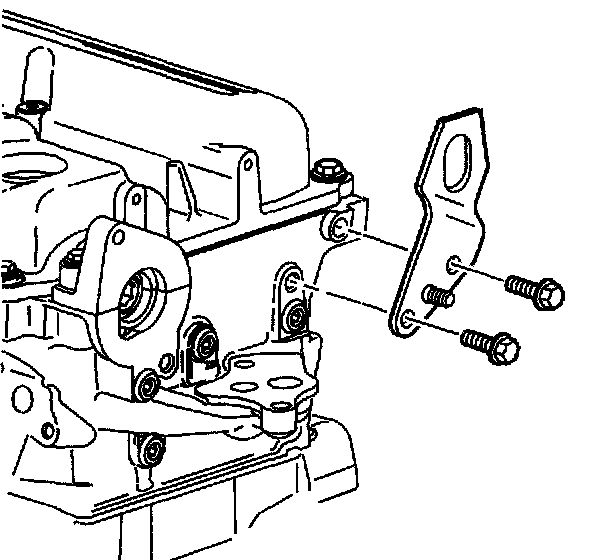

4. Install the rear lift bracket.
^ Tighten the rear lift bracket bolts to 25 Nm (18 ft. lbs.).





Notice: Refer to Fastener Notice in Service Precautions.

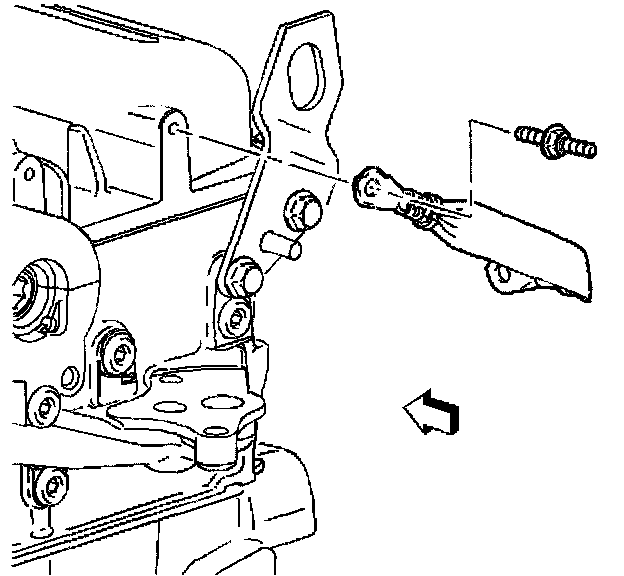

5. Install the ground strap.
^ Tighten the camshaft cover ground strap bolts to 10 Nm (89 inch lbs.).





6. Install the spark plugs.
^ Tighten the spark plugs to 20 Nm (15 ft. lbs.).

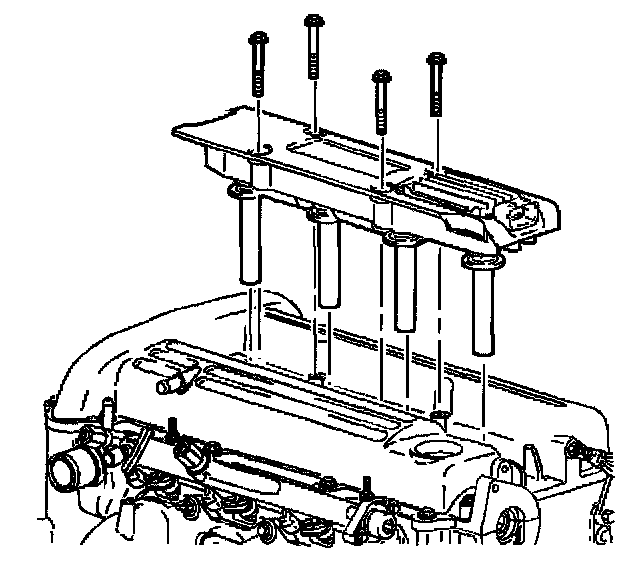

7. Install the ignition coil and module assembly to the cam cover.
^ Tighten the ignition coil and module assembly bolts to 10 Nm (89 inch lbs.).

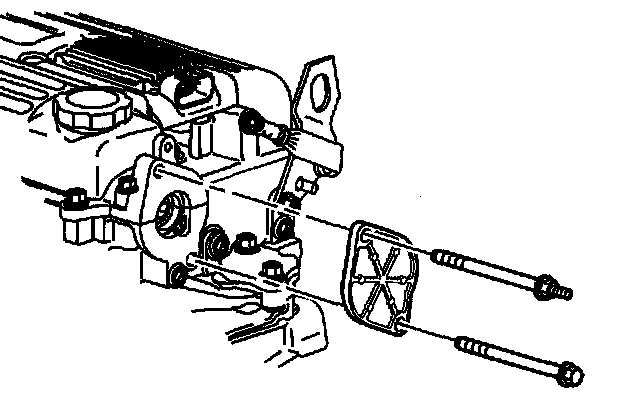

8. Install the power steering blackout plate.
^ Tighten the power steering blackout plate bolts to 25 Nm (18 ft. lbs.).
