Instrument Panel Vent

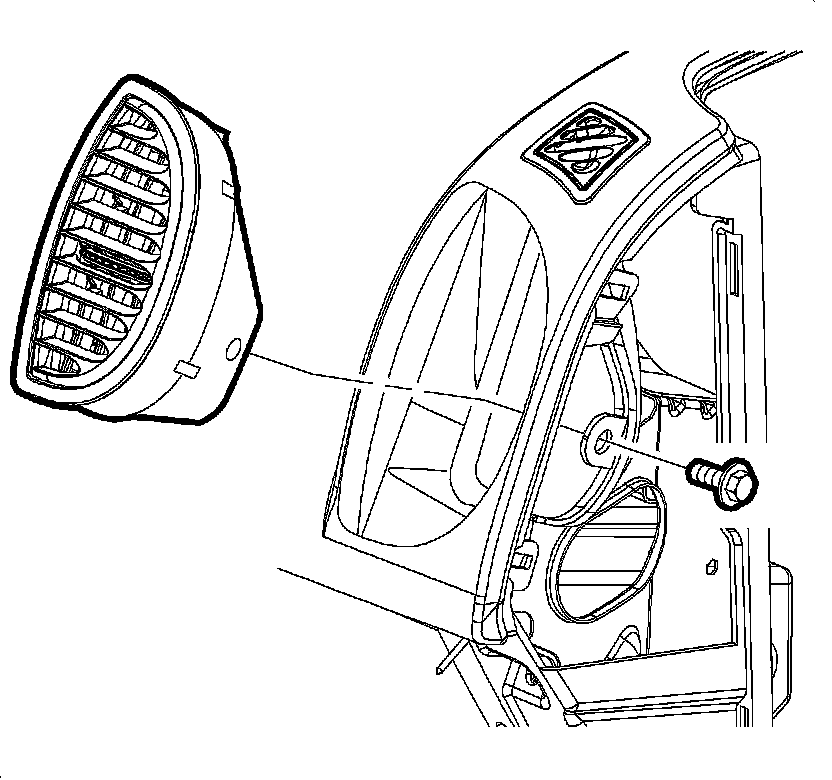

AIR OUTLET REPLACEMENT - INSTRUMENT PANEL

REMOVAL PROCEDURE
1. Remove the instrument panel (I/P) upper trim panel.




2. Depress the locking tabs on the outlet.
3. Carefully slide the outlet out of the I/P trim and the surrounding outlet bezel.

INSTALLATION PROCEDURE




1. Install the outlet to the I/P trim panel. The outlet will snap into place.
2. Install the I/P upper trim panel.
