19. Transmission Cooler Line Seals Removal

Transmission Cooler Line Seals Removal

- Tools Required
- J 45201 Cooler Line Seal Remover





1. Insert the collet (2) of the J 45201 into the cooler line seal.
2. Insert the forcing screw (1) of the J 45201 into the collet (2).
3. Tighten the forcing screw (1) until snug.

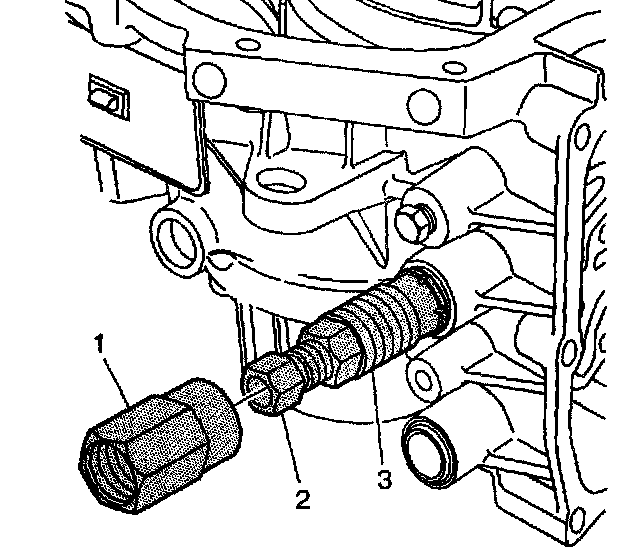

4. Thread the collar (1) of the J 45201 onto the collet (3) until snug.

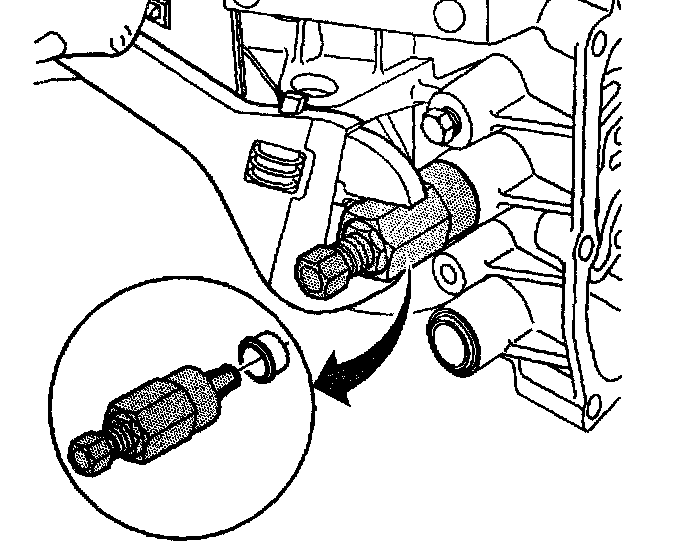

5. Using an adjustable wrench, turn the collar clockwise in order to remove the cooler line seal.
6. Discard the seal.
7. Clean the case bores for the cooler line seals.
