27. Fluid Pump Installation

Fluid Pump Installation






Notice: Refer to Fastener Notice in Cautions and Notices.

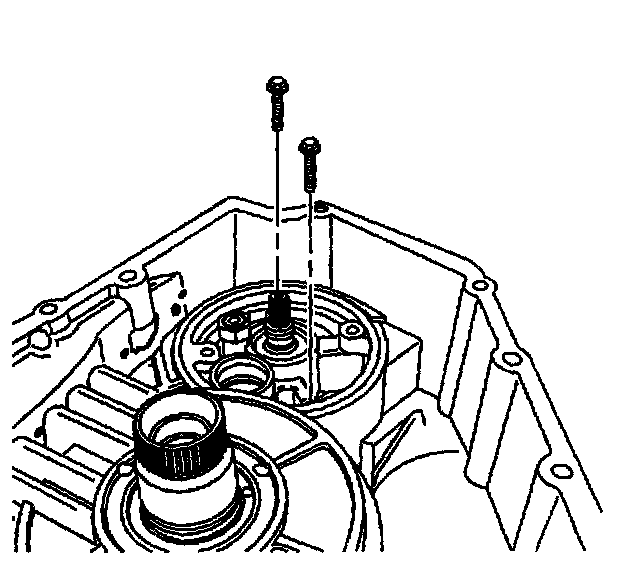

1. Install the fluid pump assembly and the 2 bolts into the transmission case assembly.
- Tighten the bolts to 11 Nm (8 ft. lbs.).
2. Pour approximately 120-240 cc (4-8 ounces) of automatic transmission fluid into the pump inlet, and rotate the pump shaft by hand, in order to aid pump priming at start-up.
