8. Mainshaft R/ Bearing Case & Output Shaft Rear Covers Removal

Mainshaft Rear Bearing Case Cover and Output Shaft Rear Access Cover Removal

- Tools Required
- DT 46434 Mainshaft Socket
- DT 46435 Mainshaft Socket Handle

Mainshaft Rear Bearing Case Cover Removal





1. Remove the 3 mainshaft rear case cover mount bolts (97).
2. Remove the mainshaft rear case cover (98).
3. Remove the mainshaft lube transfer tube (113).
4. Remove the mainshaft rear case cover locating pin (114).
5. Remove the mainshaft rear case cover O-ring seal (99).

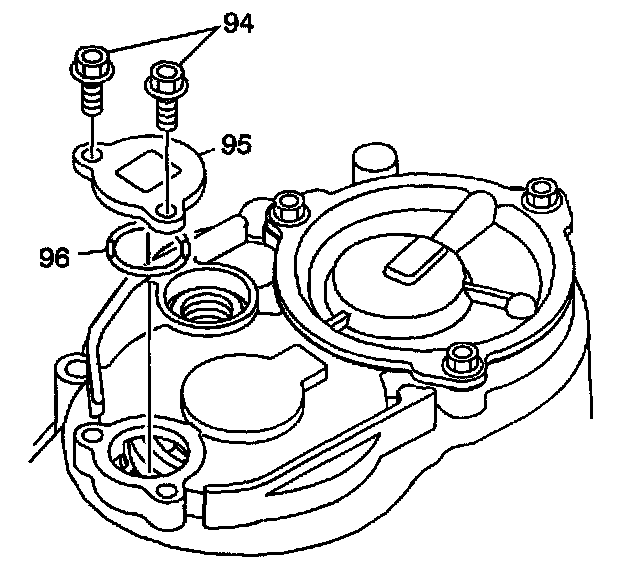

Output Shaft Rear Access Cover Removal





1. Remove the 2 output shaft transmission rear case bearing access hole cover mount bolts (94) from the transmission case housing (31).
2. Remove the output shaft, transmission rear case bearing access hole cover (95) and O-ring seal (96) from the transmission case housing (31).





3. Remove the reverse idler gear access hole plug (102) and sealing washer (103) from the transmission case housing (31).
