Flex Plate: Service and Repair

Engine Flywheel Replacement

Removal Procedure





1. Remove the transmission.

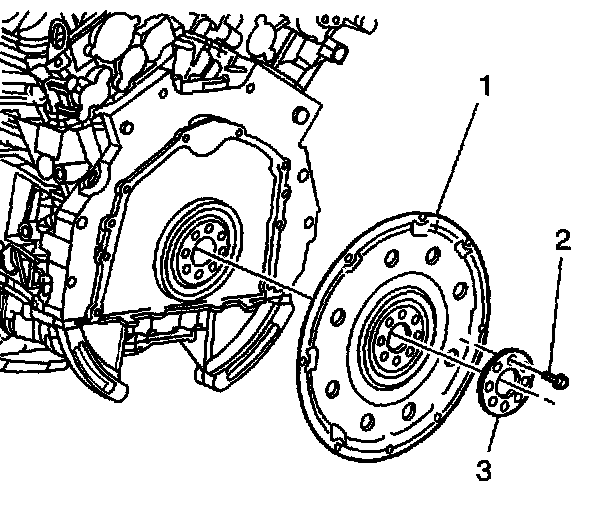

2. Remove the flywheel bolts (2), and note the position of the flywheel to the crank shaft
3. Remove the flywheel washer (3) and flywheel (1).

Installation Procedure





1. Position the flywheel (1) and flywheel washer (3) on the crankshaft as previously noted.





Notice: Refer to Fastener Notice in Service Precautions.

2. Install the flywheel bolts (2).
3. Tighten the flywheel bolts in sequence.
^ Tighten the flywheel bolts in sequence to 74 Nm (54 lb ft).
4. Install the transmission.
