RELAY FWD V6-3.5L VIN 8
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ride Height Sensor, Suspension Control
Ride Height Sensor, Suspension Control

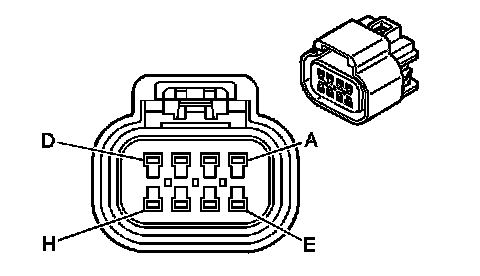

Automatic Level Control Suspension Connector End Views

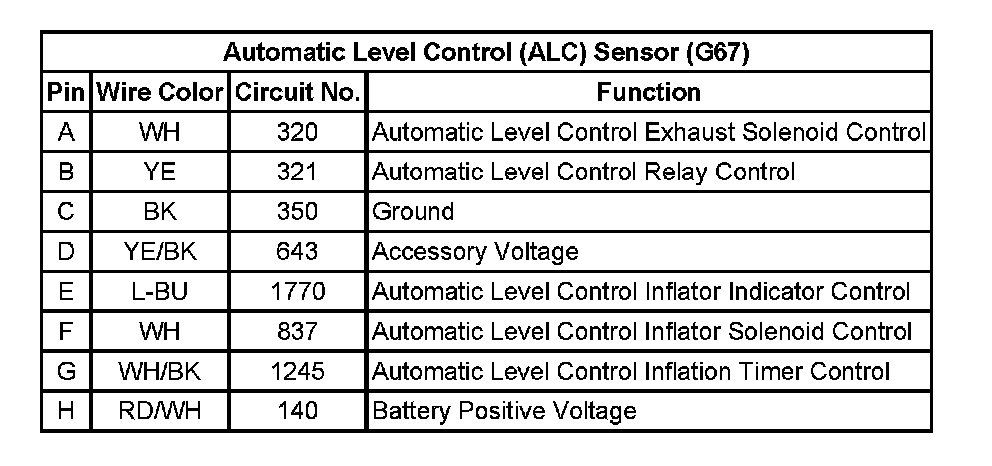

Automatic Level Control (ALC) Sensor (G67)
