Heater Case/Cover Replacement

HEATER CORE COVER REPLACEMENT

REMOVAL PROCEDURE
1. Remove the floor air outlet duct.
2. If equipped, disconnect the DVD wiring harness from the instrument panel (I/P) support bracket.

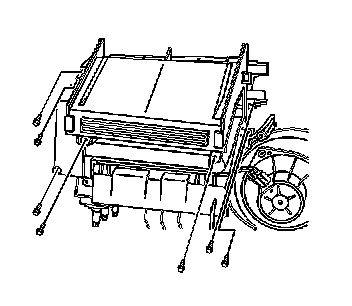

3. Remove the screws retaining the heater core cover.
4. Remove the heater core cover.

INSTALLATION PROCEDURE




1. Install the heater core cover.
2. Install the heater core cover retaining screws.

Tighten the screws to 1.6 N.m (14 lb in).

NOTE: Refer to Fastener Notice in Service Precautions.

3. If equipped, connect the DVD wiring harness to the I/P support bracket.
4. Install the floor air outlet duct.
