Operation CHARM
: Car repair manuals for everyone.
Home
>>
Saturn
>>
2005
>>
VUE AWD L4-2.2L VIN D
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Hydraulic System
>>
Brake Fluid Level Sensor/Switch
>>
Locations
>>
Connector Locations
Connector Locations

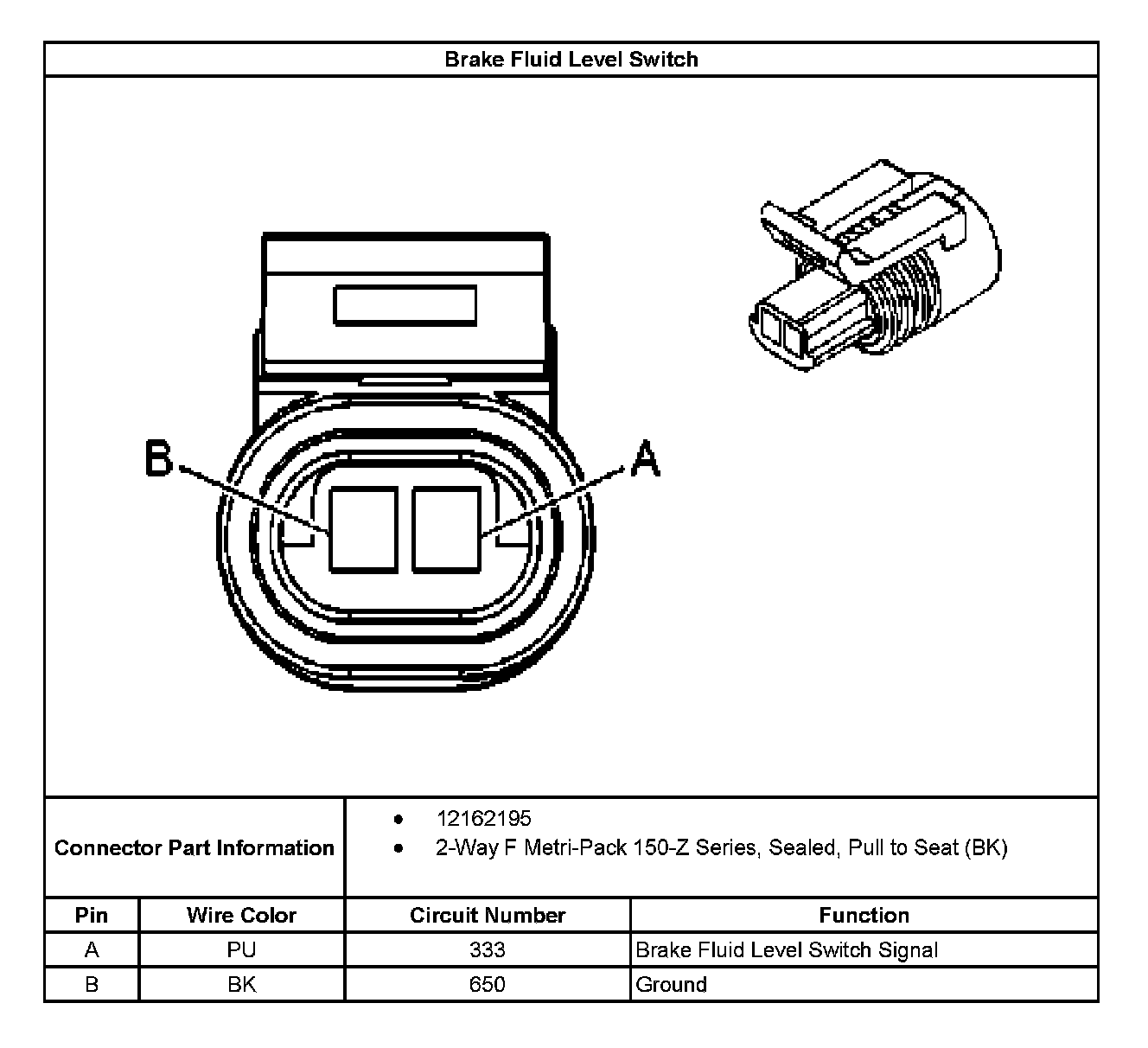

Brake Fluid Level Switch:
