Intermediate/Fourth Servo Assembly Replacement

Intermediate/Fourth Servo Assembly Replacement
Removal Procedure

1. Caution: Refer to Vehicle Lifting.

Raise the vehicle. Support the vehicle.
2. Remove the oil pan and filter.
3. Remove the oil feed pipes.

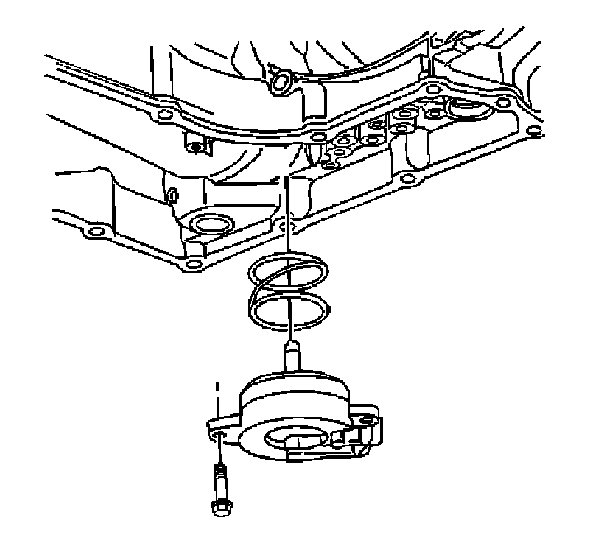

4. Remove the two intermediate/4th servo cover bolts, the servo and the spring.
5. Disassemble, clean and inspect the intermediate/4th servo assembly. Refer to Automatic Transmission, Transaxle Unit Repair.

Installation Procedure
1. Assemble the intermediate/4th servo assembly. Refer to Automotive Transmission, Transaxle Unit Repair.





2. Notice: Install the intermediate/4th band servo piston spring, the servo and the servo cover bolts.

Tighten the bolts to 12 Nm (106 inch lbs.).
3. Install the oil feed pipes. .
4. Install the filter and the pan.
5. Lower the vehicle.
6. Fill the transmission with Dexron(r) III fluid.
7. Inspect the transmission oil level. Refer to Transmission Fluid Checking Procedure.
