Home >> Saturn >> 2006 >> ION L4-2.4L VIN B >> Repair and Diagnosis >> Powertrain Management >> Locations >> Front View Automatic Transmission

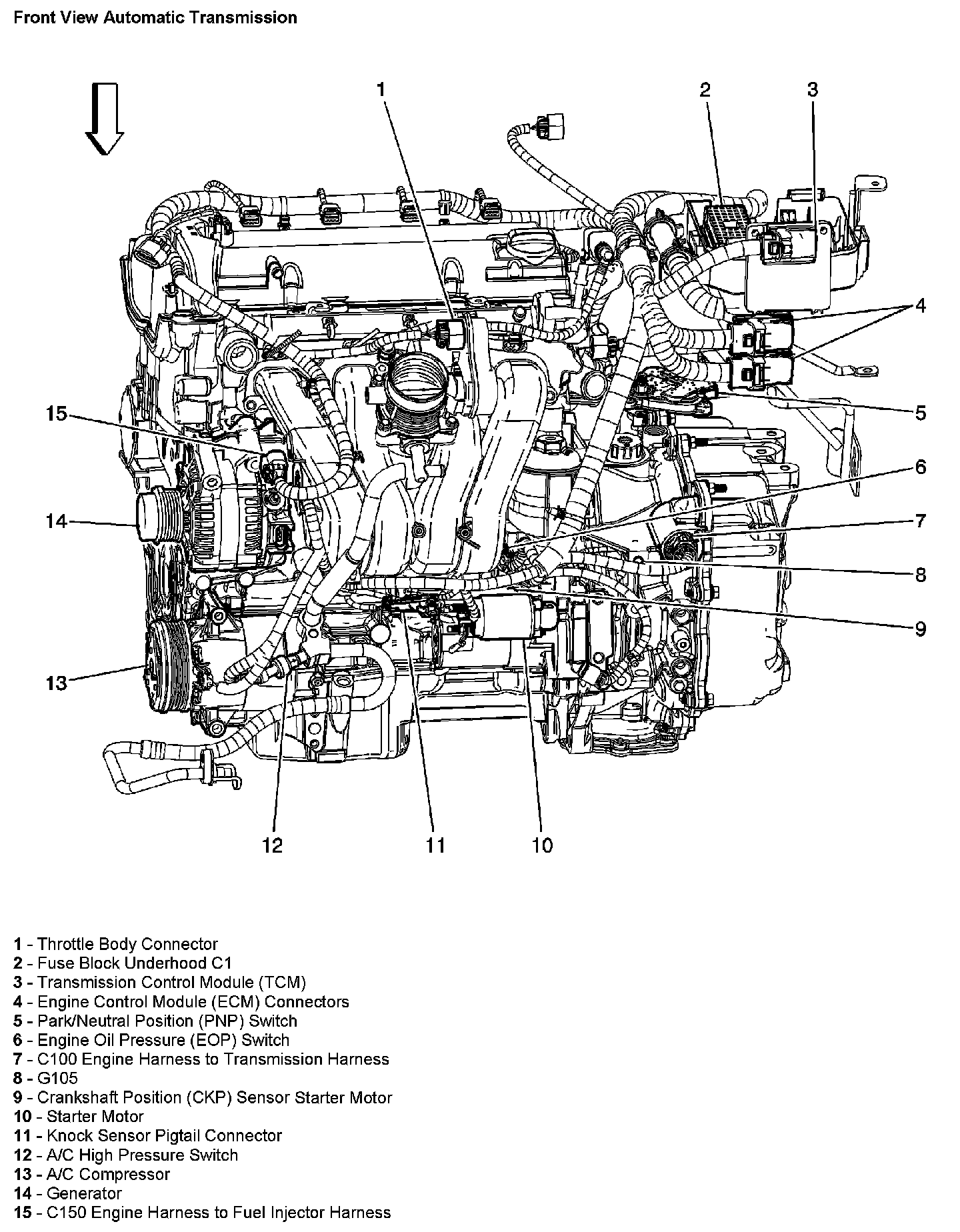

Front View Automatic Transmission

Front View Automatic Transmission:
