B0931
DTC B0931
CIRCUIT DESCRIPTION
The internal fault detection is handled by the instrument panel cluster (IPC).
DTC DESCRIPTOR
This diagnostic procedure supports the following DTC:
DTC B0931 Compass Sensor Circuit
CONDITIONS FOR RUNNING THE DTC
The IPC monitors the analog input value at power up.
CONDITIONS FOR SETTING THE DTC
The IPC does not detect the compass sensor. This may be due to a faulty sensor.
ACTION TAKEN WHEN THE DTC SETS
The DTC will be set and stored in non-volatile memory.
CONDITIONS FOR CLEARING THE DTC
- The DTC becomes history when the driver information center (DIC) no longer detects a failure.
- The history DTC clears after 100 fault-free ignition cycles.
- The DIC receives the clear code command from the scan tool.

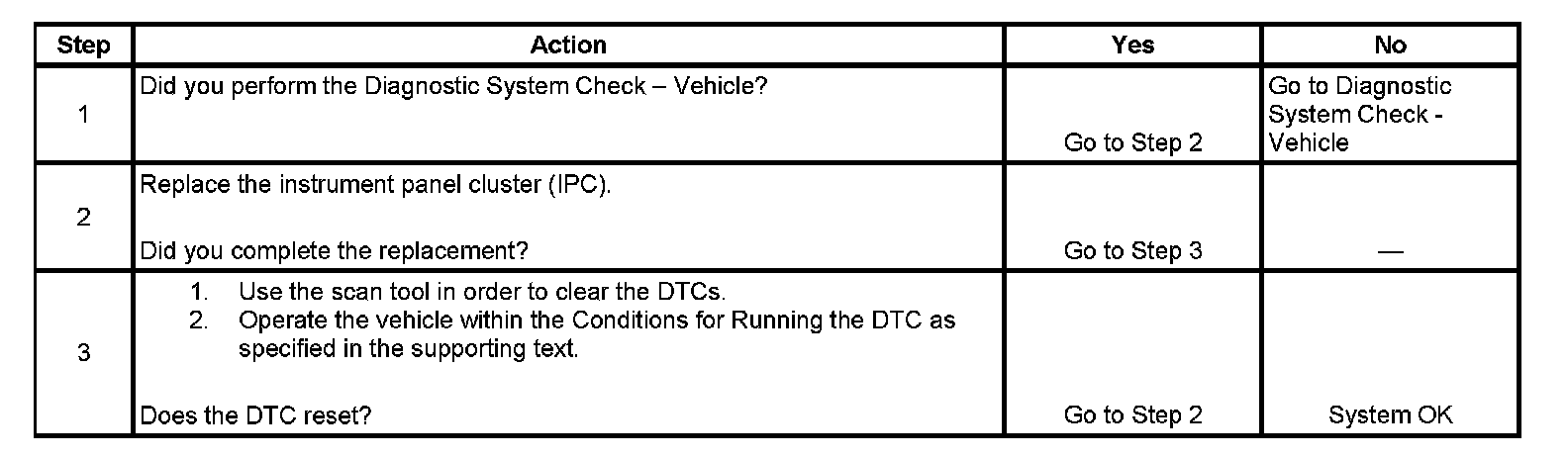

TEST
