Seat Latch: Service and Repair

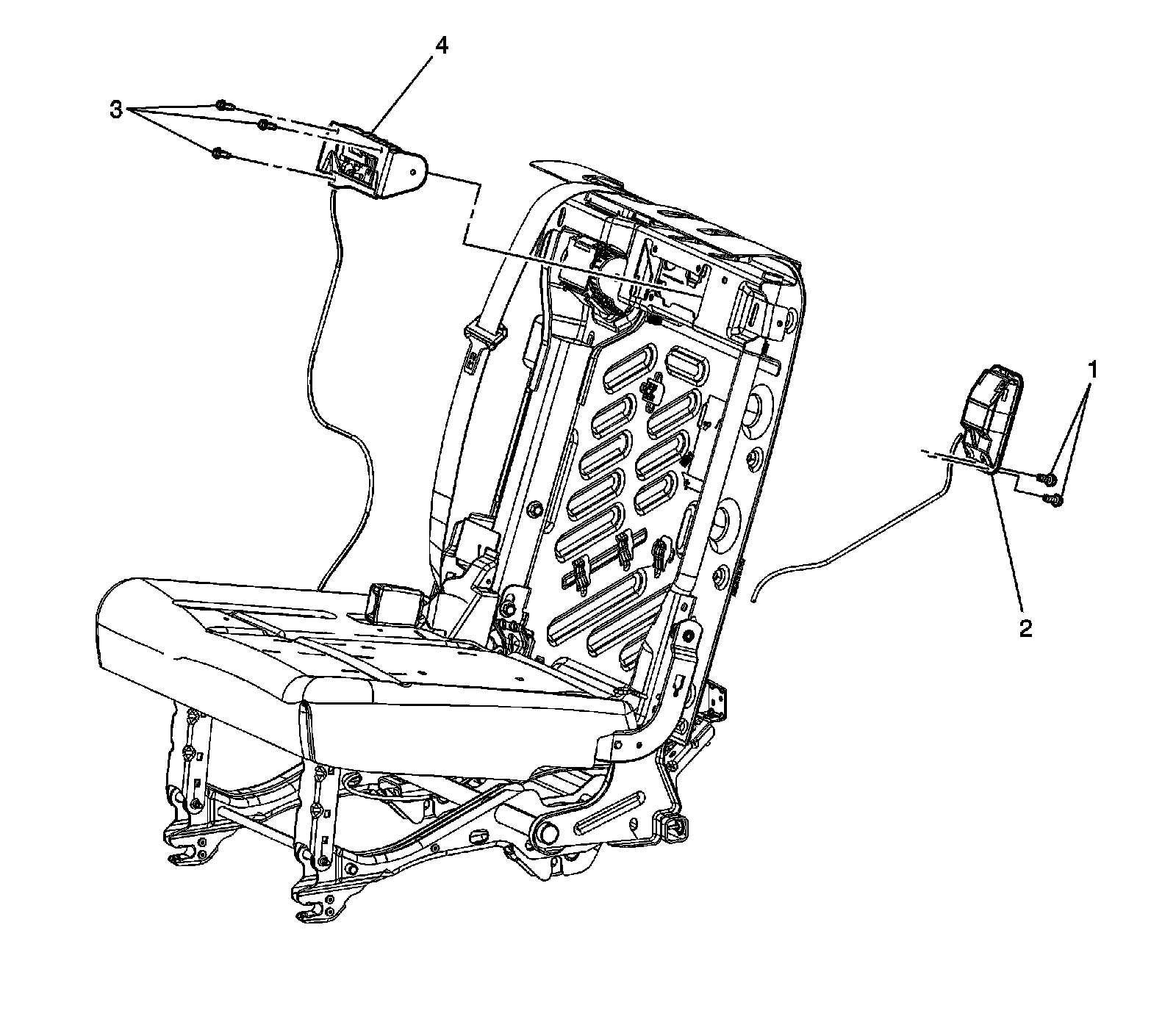

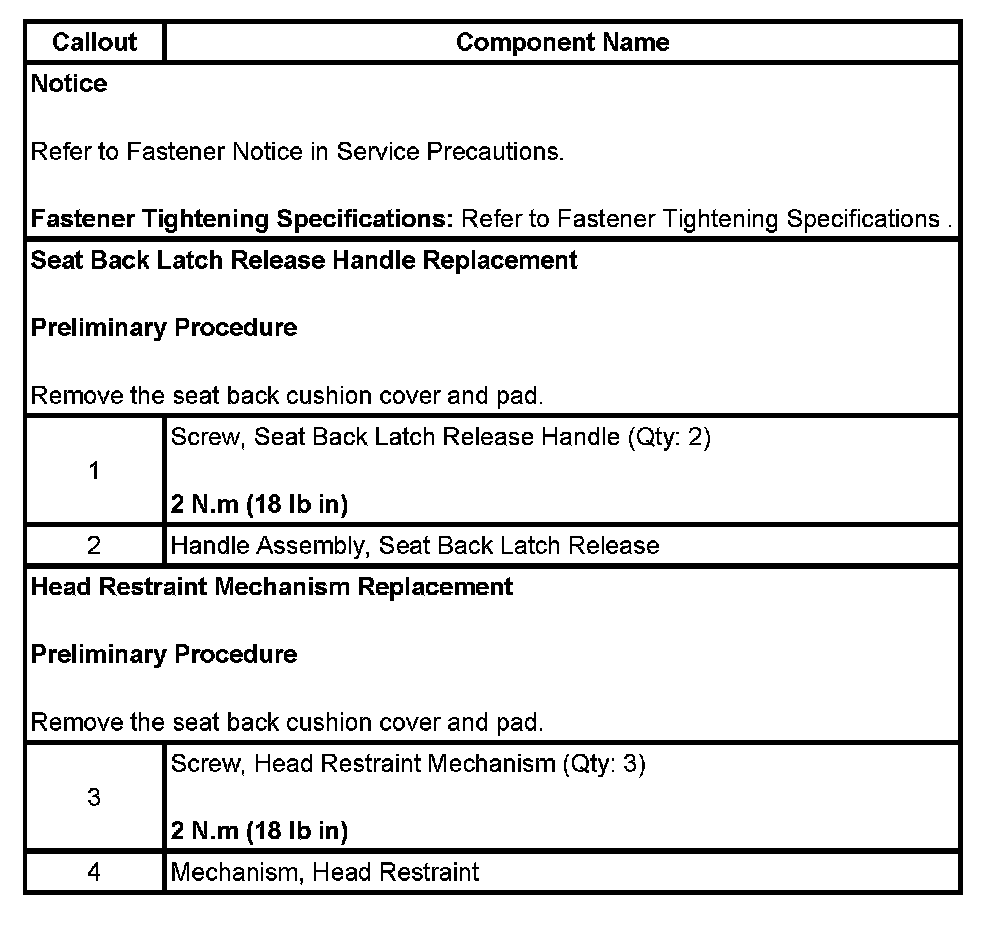

HEAD RESTRAINT MECHANISM, HANDLE AND
SEAT BACK
LATCH RELEASE REPLACEMENT - REAR NO 2
